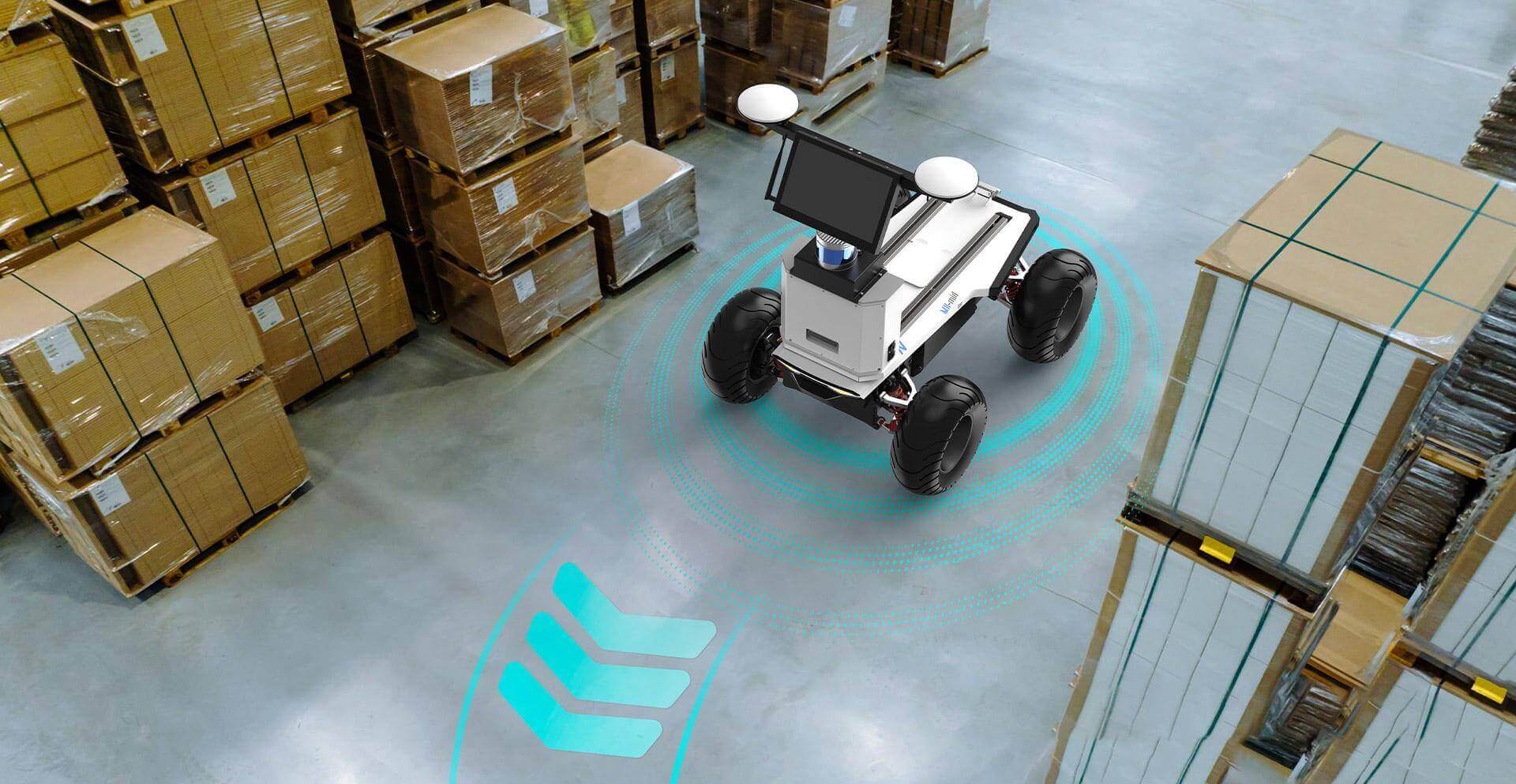

Application Safety

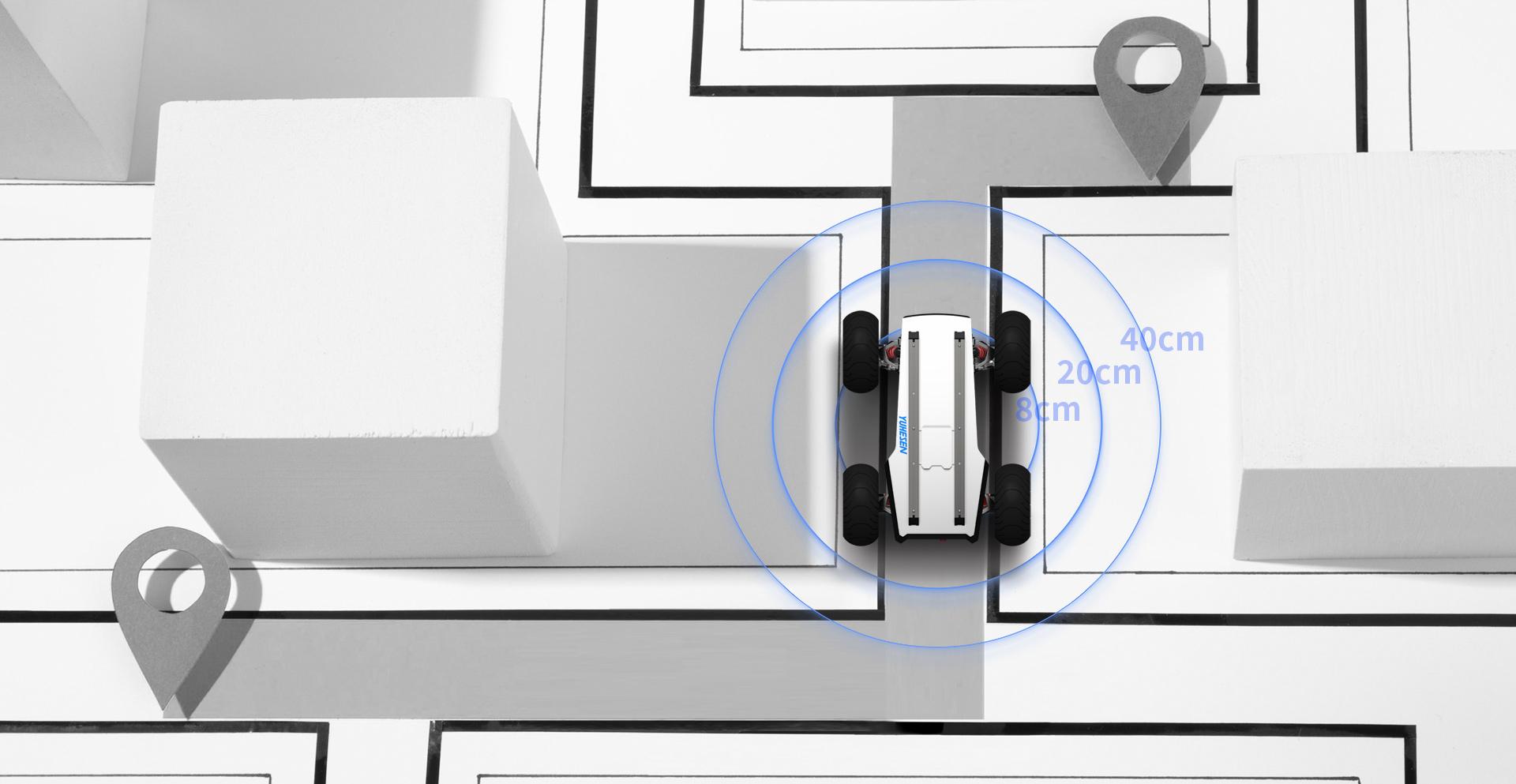

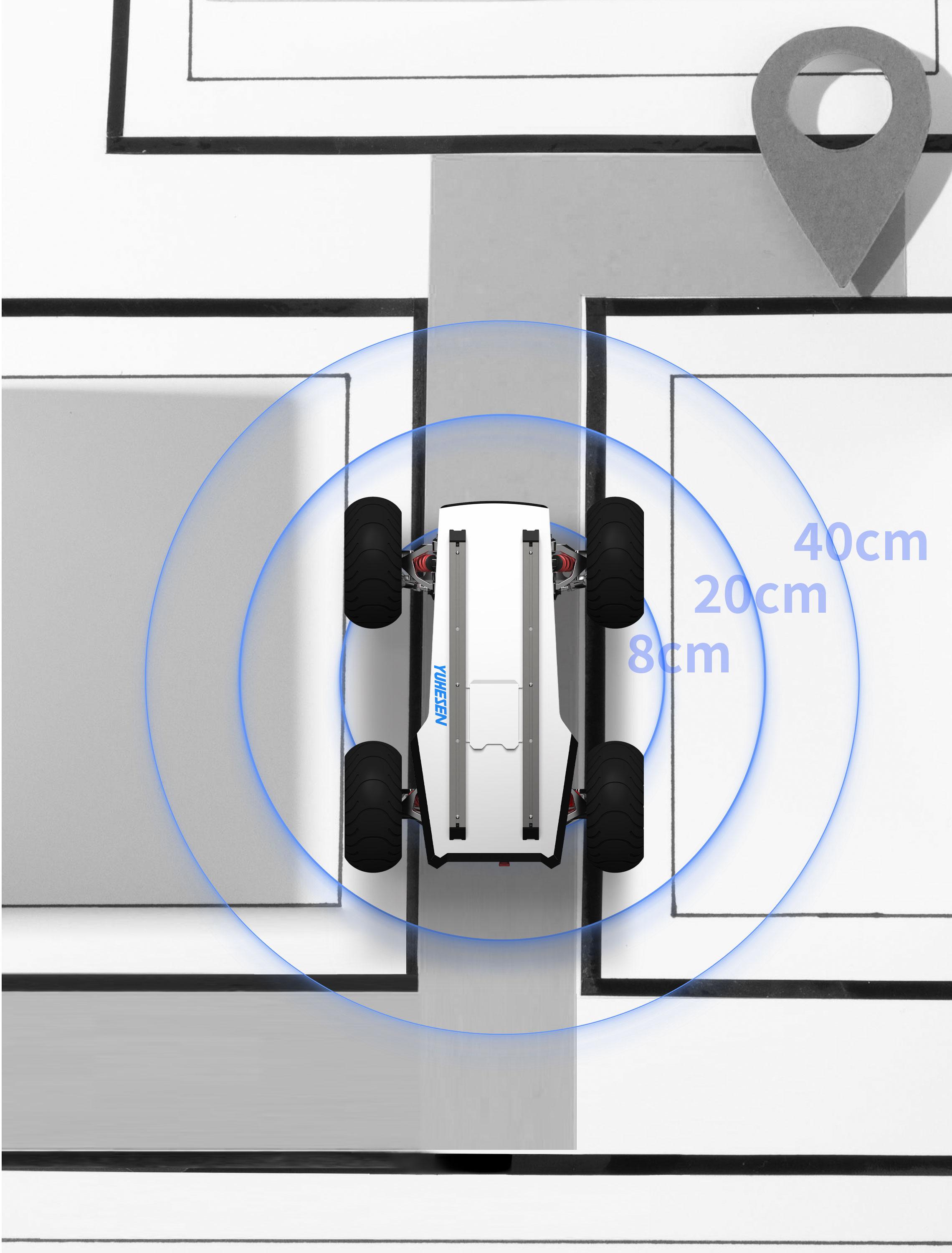

Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.
MK-mid
All-Scenario Ackermann Steering
The chassis adopts an all-terrain independent suspension design with excellent shock absorption performance. Combined with millimeter-level motion control precision, it delivers smoother and more responsive dynamic performance.
Preemptive Planning Drive Algorithm
The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across Ackermann steering mode.

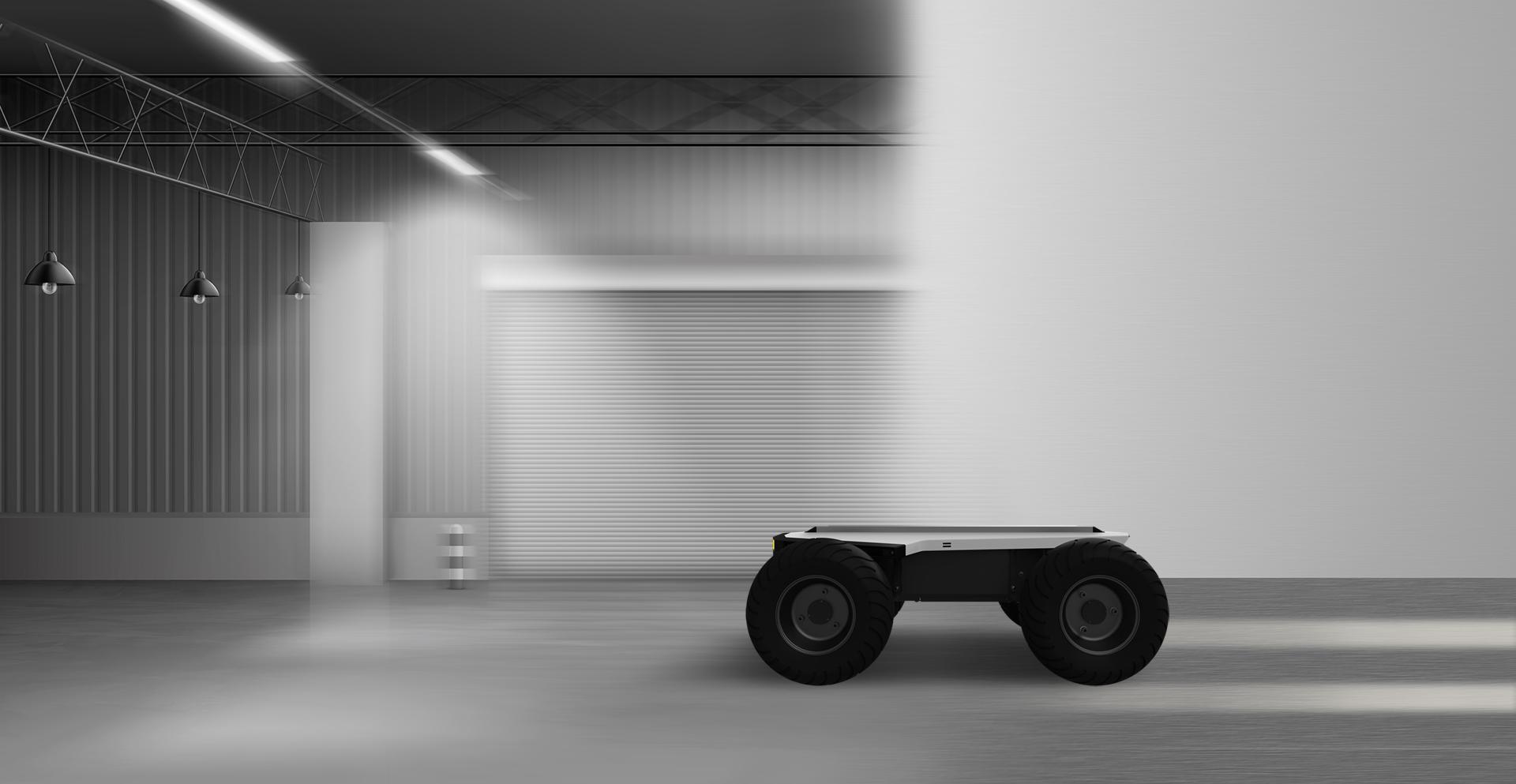

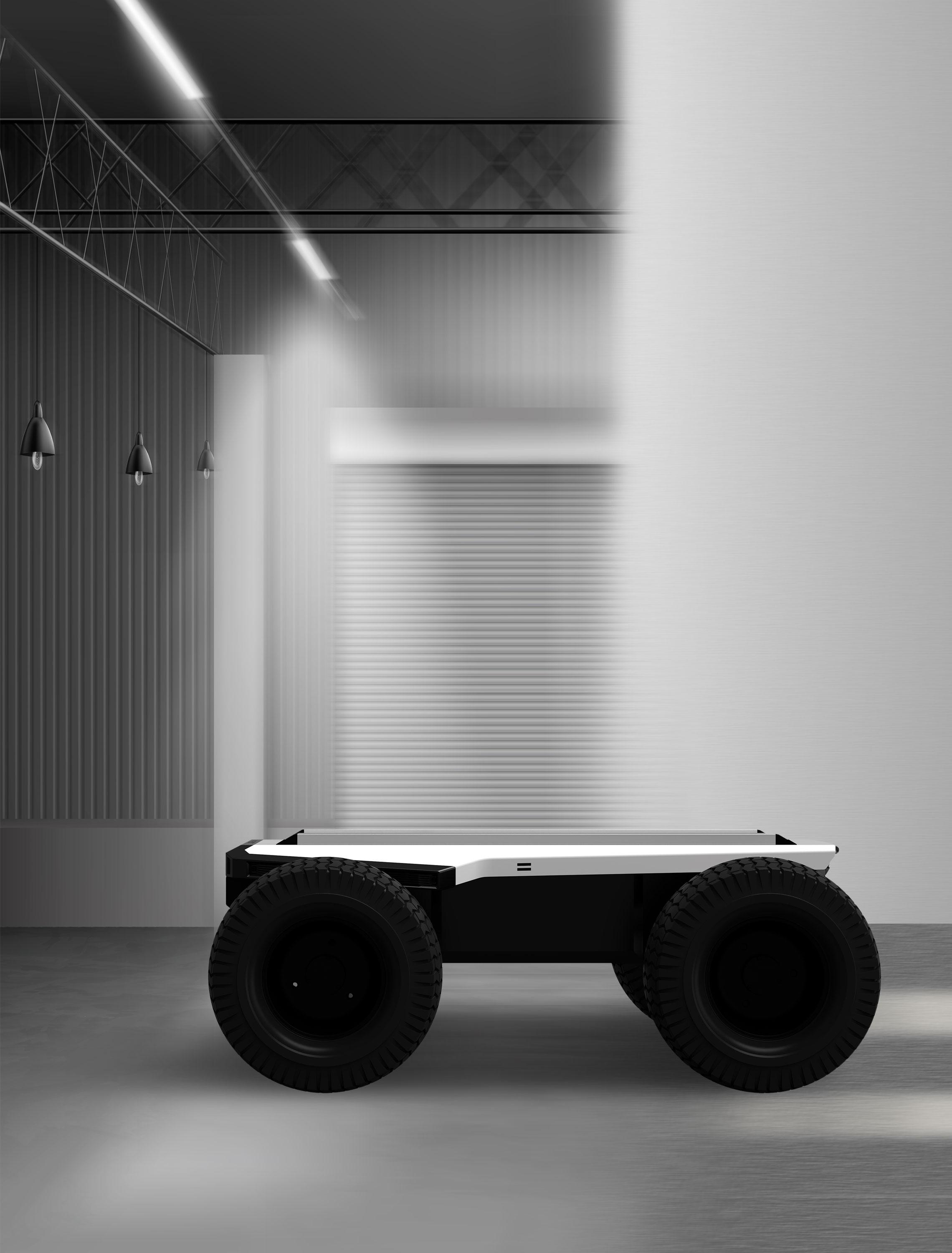

High-Strength Lightweight All-Terrain UGVs
Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.
- Obstacle Surmounting：90mm(empty load)/50mm(full loads)

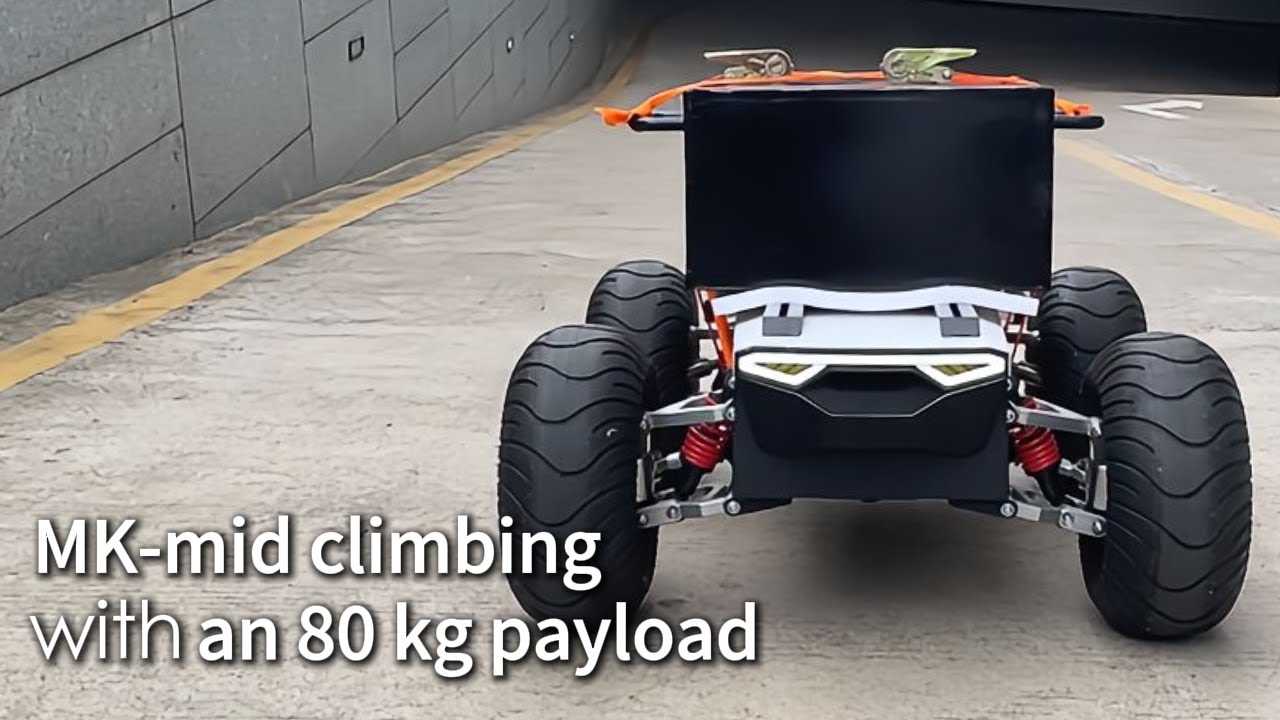

- Climbing Capacity：20°(empty load)/10°(full loads)
- Max Speed：9.7km/h
- Braking Method：Motor Braking
- IP Rating：IP42
- Payload：80kg
Multi-level Security Protection
Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.
-
-
Operational Safety
Combine electronic differential control with flexible motion management to deliver both stability and agility, enabling more reliable performance across industry applications.
-
Electrical Safety
Adopt automotive-grade battery protection designs to withstand harsh environments, improve durability, and support effective application development.
-
Control Safety
Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.
Modular Navigation Expansion
Advantages of Modular Design
Multi-Scenario Operating Capability
-

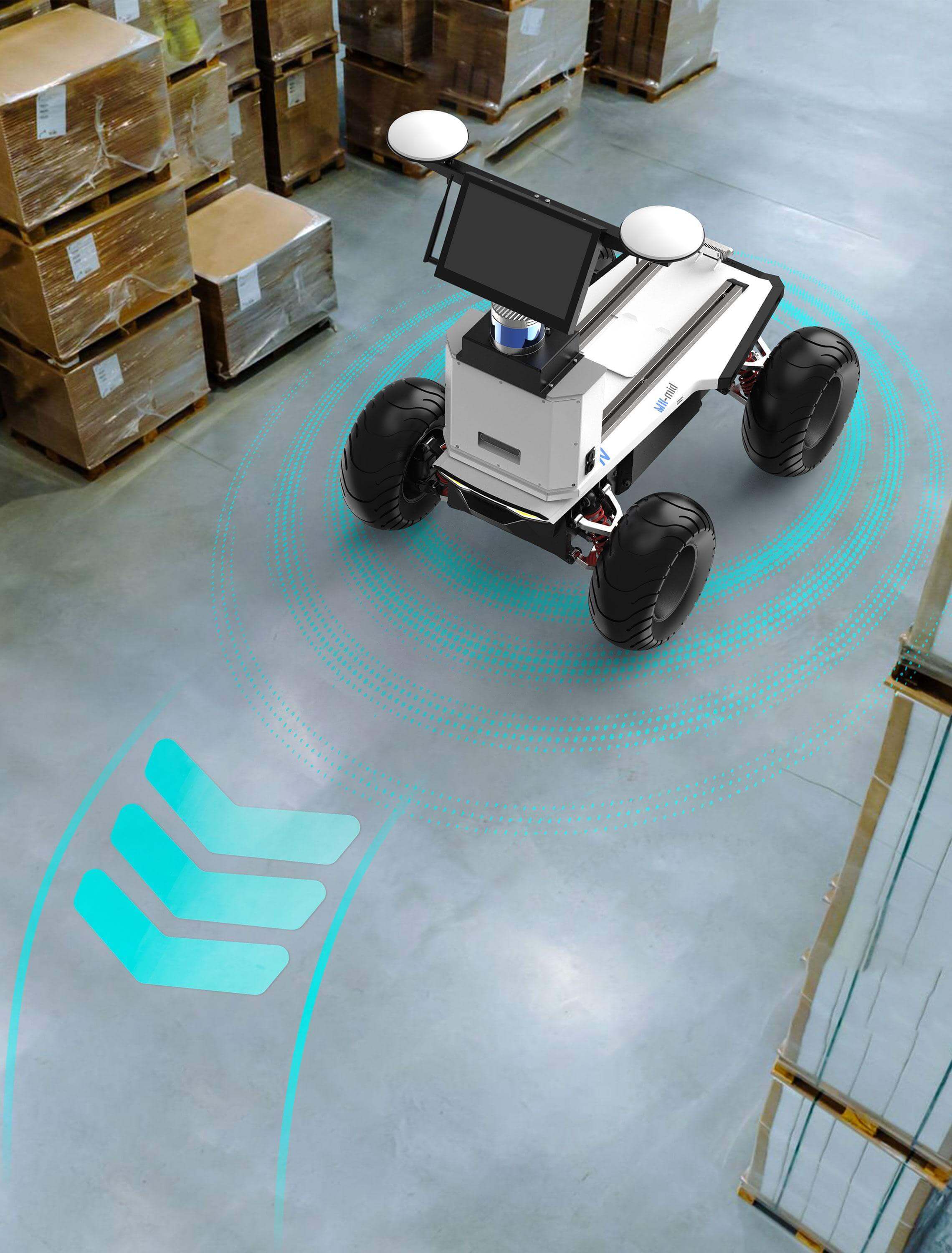

Indoor-Outdoor Narrow-space Transportation
-
High-Precision Positioning Under Signal Degradation
-

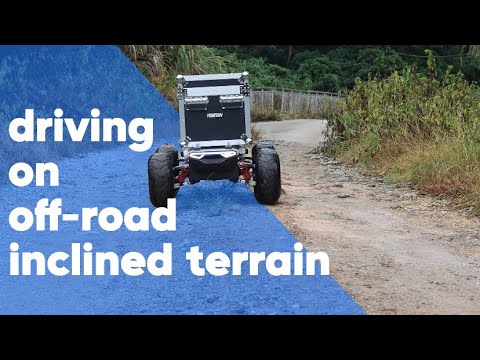

Indoor-Outdoor All-Terrain Mobility
-

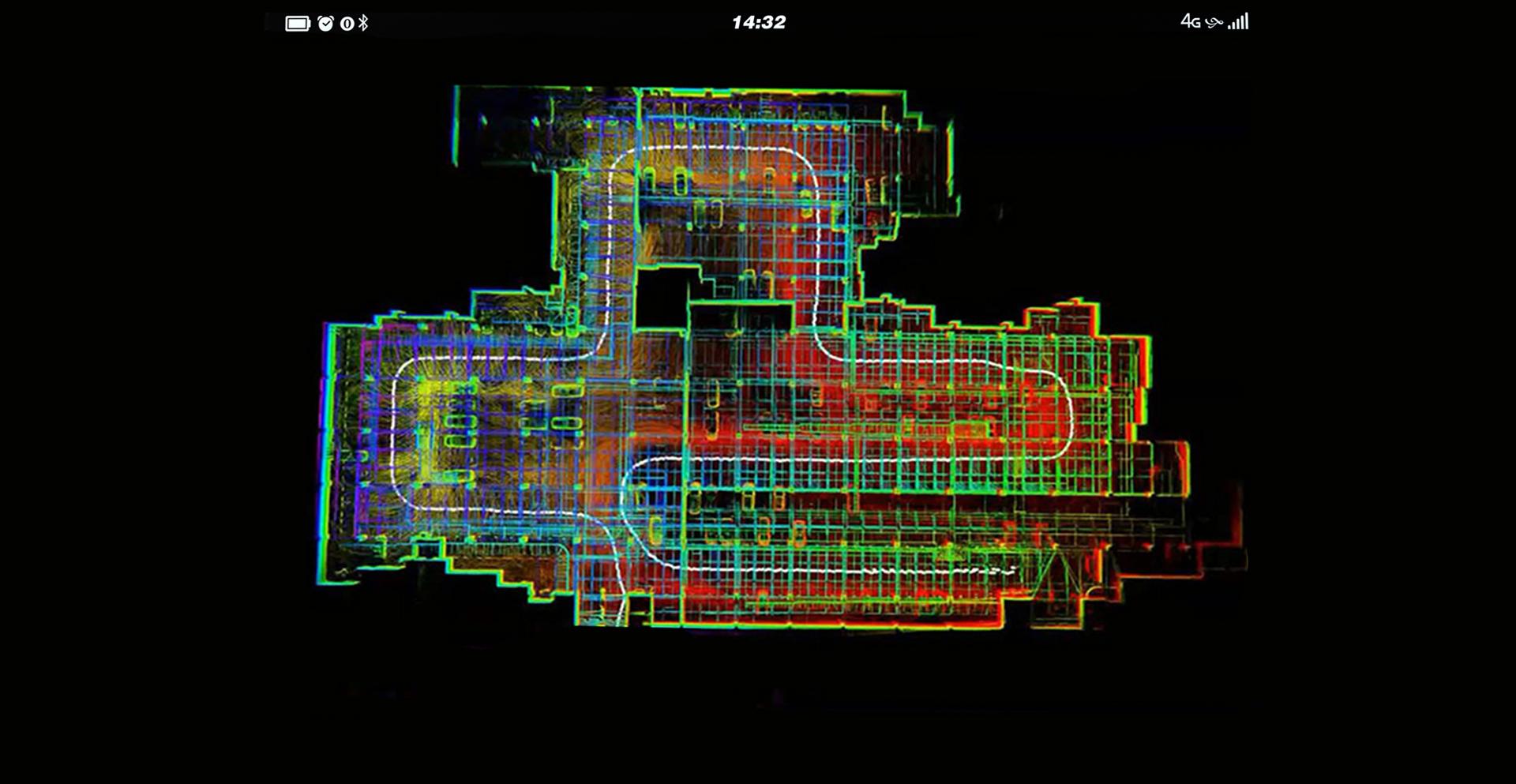

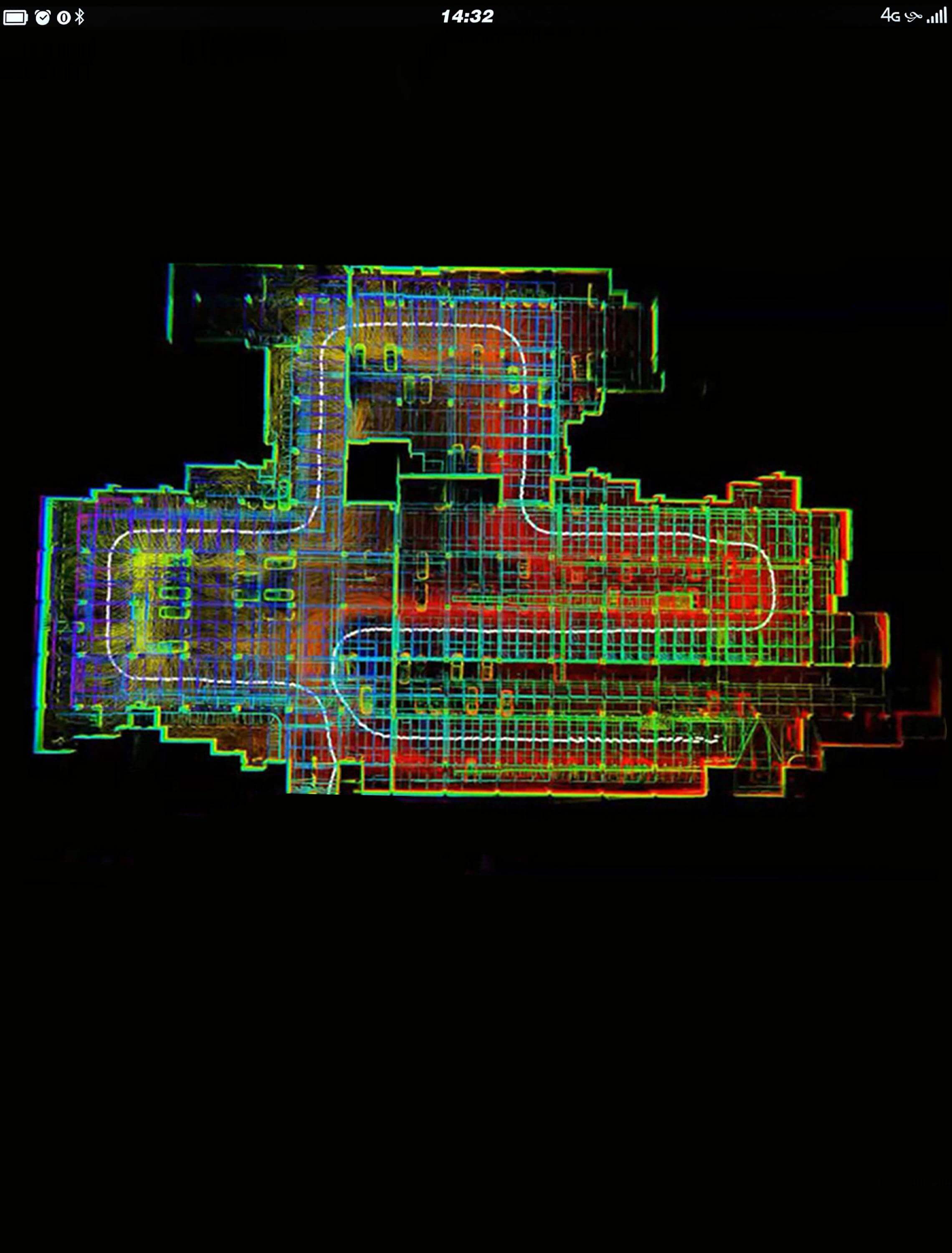

Large-Scale Mapping Performance
Multi-Industry Application Capability
-
Energy
-
Manufacturing
-
Agriculture
-
Healthcare
Supporting the integration of diverse modular applications.
We anticipate collaborating with you to explore the future of the industry.
Parameter

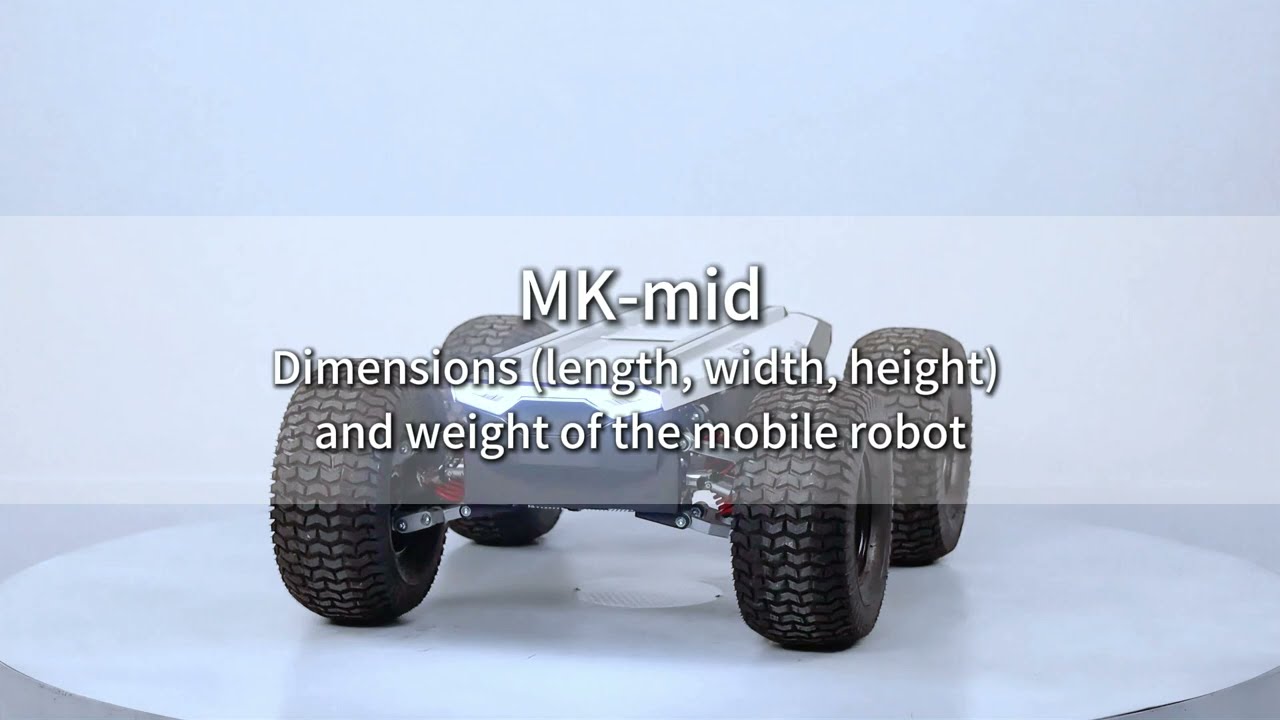

- Size：920mm*740mm*350mm
- Weight：71kg
- Drive Form：Ackermann steering, Dual rear motor drive
- Suspension：Independent Suspension
- Ground Clearance：150mm
- Wheelbase：600mm
- Wheel Track：600mm
- Tire Diameter：324mm
- Turning Radius：1.6m
- Wheel Hub Motor：400W*2
- Battery：48V/18Ah(Standard)
48V/30Ah(optional) - Charging Time：2-3h
- Charging Method：48V/10A charging adapter/station
- Power Supply：12V/15A; 24V/15A; 48V/10A
- Braking Method：Motor Braking
- Parking Method：Electromagnetic power-off parking
- Payload(Level Ground)：80kg
- Max Speed：9.7km/h
- Wading Depth：120mm
- Mileage：35kme(empty load)/25km(full loads)
- Climbing Capacity：20°(empty load)/10°(full loads)
- Span Width：230mm(empty load)/180mm(full loads)
- Obstacle Surmounting：90mm(empty load);/50mm(full loads)
- IP Rating：IP42
- Communication：CAN2.0B
- Operating Temperature：-20~50℃
- Optional Configuration：Open Source ROS Navigation Kit/NV Magic LiDAR SLAM Navigation Kit Autoware/Apollo Self-driving Kit
- Support Services：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
- Configuration Notes ：Due to continuous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
- Size：900mm*600mm*310mm
- Weight：55kg
- Drive Form：Ackermann steering, Dual rearhub motor drive
- Suspension：Independent Suspension
- Ground Clearance：93mm
- Wheelbase：600mm
- Wheel Track：518mm
- Tire Diameter：240mm
- Turning Radius：1.5m
- Wheel Hub Motor：350W*2
- Battery：48V/20Ah(standard)
48V/40Ah(optional) - Charging Time：2-3h
- Charging Method：48V/10A charging adapter
- Power Supply：12V/15A; 24V/15A; 48V/10A
- Braking Method：Motor Braking
- Parking Method：Motor Parking
- Payload(Level Ground)：50kg
- Max Speed：9.7km/h
- Wading Depth：100mm
- Mileage：60km(empty load)/40km(full loads)
- Climbing Capacity：20°(empty load)/10°(full loads)
- Span Width：160mm(empty load)/140mm(full loads)
- Obstacle Surmounting：50mm(empty load)/50mm(full loads)
- IP Rating：IP44
- Communication：CAN2.0B
- Operating Temperature：-20~50℃
- Optional Configuration：Open Source ROS Navigation Kit/NV Magic LiDAR SLAM Navigation Kit/Apollo Self-driving Kit
- Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
- Configuration Notes ：Due to continuous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
