Application Safety
Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

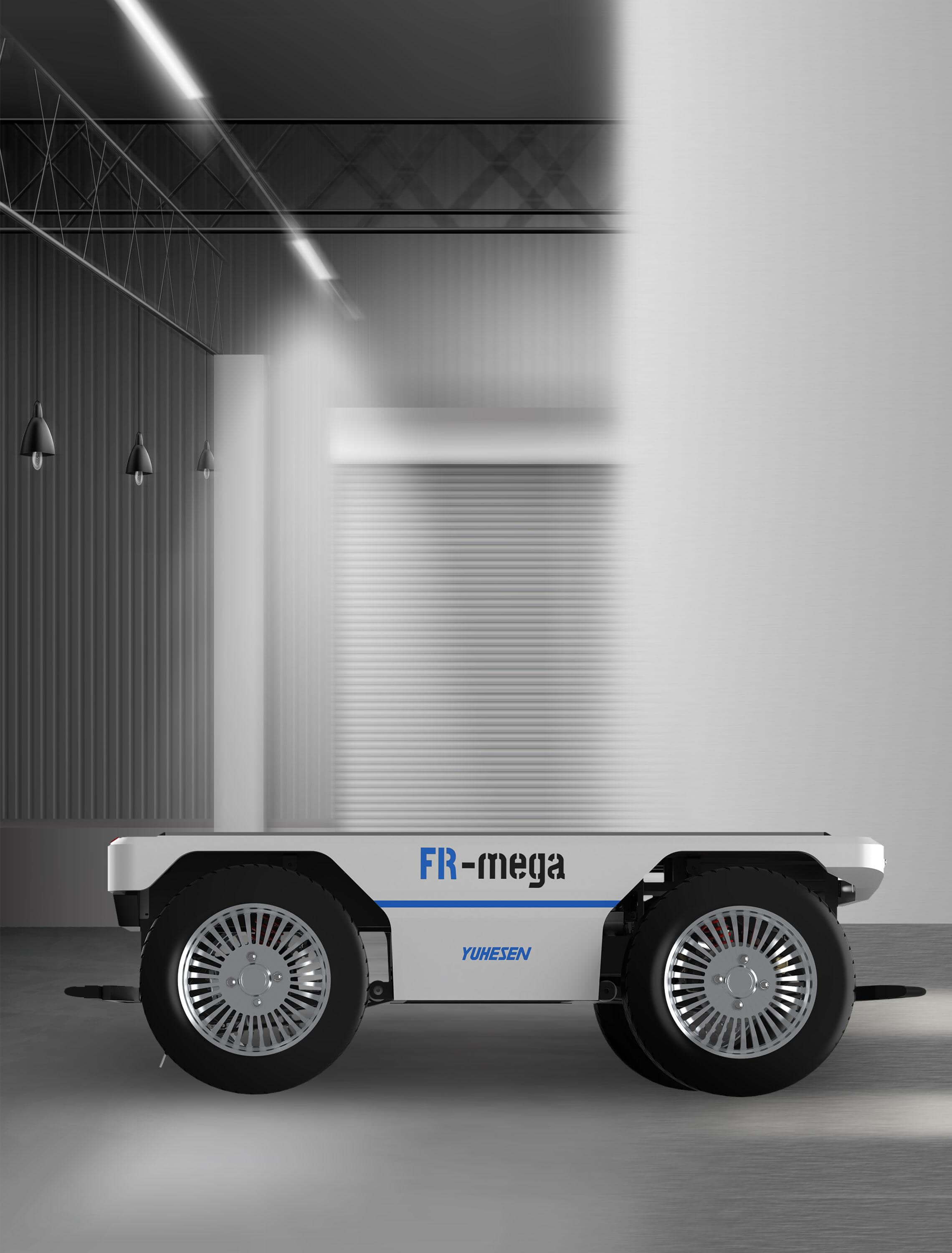

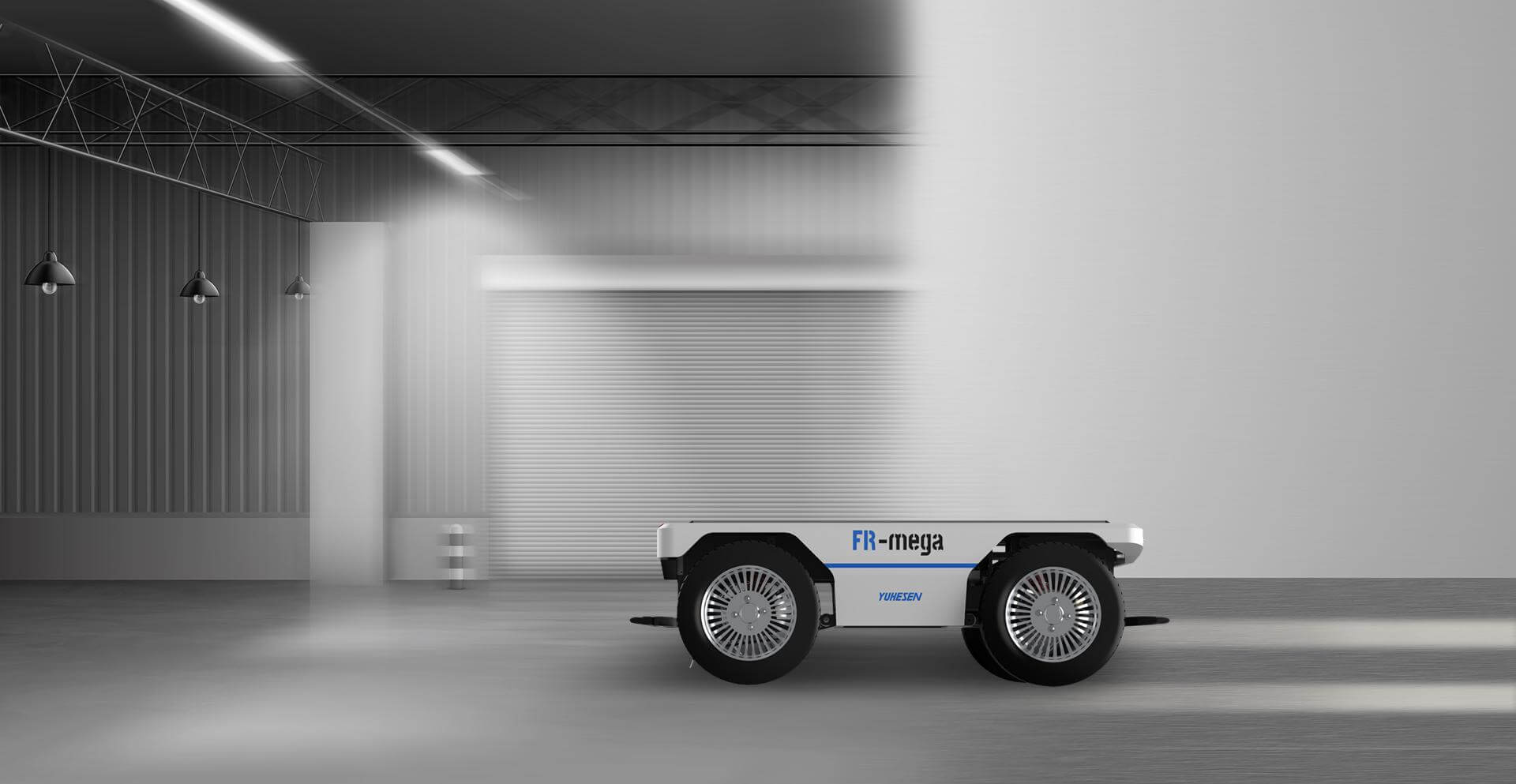

FR-mega
Modular Ackermann Platform
Equipped with automotive-grade Ackermann steering and modular expansion design, the chassis enables all-terrain, all-scenario deployments with a load capacity exceeding 100kg.
Preemptive Planning Drive Algorithm
The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across Ackermann steering mode.
Versatile Ackermann UGVs
Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.
- Obstacle Clearance Height：140mm(unladen)/100mm(laden)
- Max Climbing Angle： 30°(unladen)/10°(laden)
- Max Speed：10km/h
- Braking Method：Hydraulic Disc Brake + Motor Brake
- IP Rating：IP44
- Payload：600kg
Multi-level Security Protection
Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.
-
-
Operational Safety
Combine electronic differential control with flexible motion management to deliver both stability and agility, enabling more reliable performance across industry applications.
-
Electrical Safety
Adopt automotive-grade battery protection designs to withstand harsh environments, improve durability, and support effective application development.
-
Control Safety
Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.
Modular Navigation Expansion
Advantages of Modular Design
Multi-Scenario Operating Capability
-

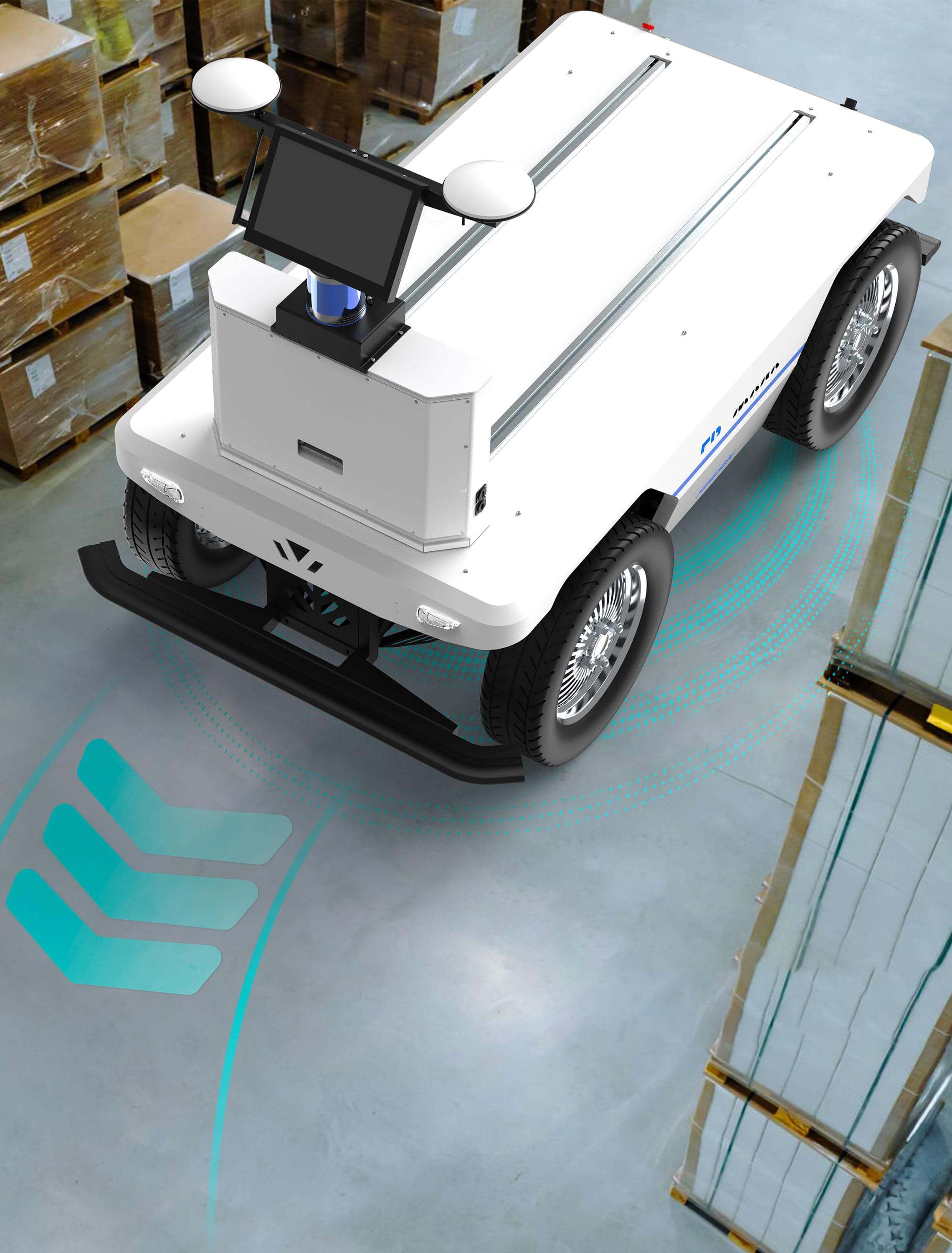

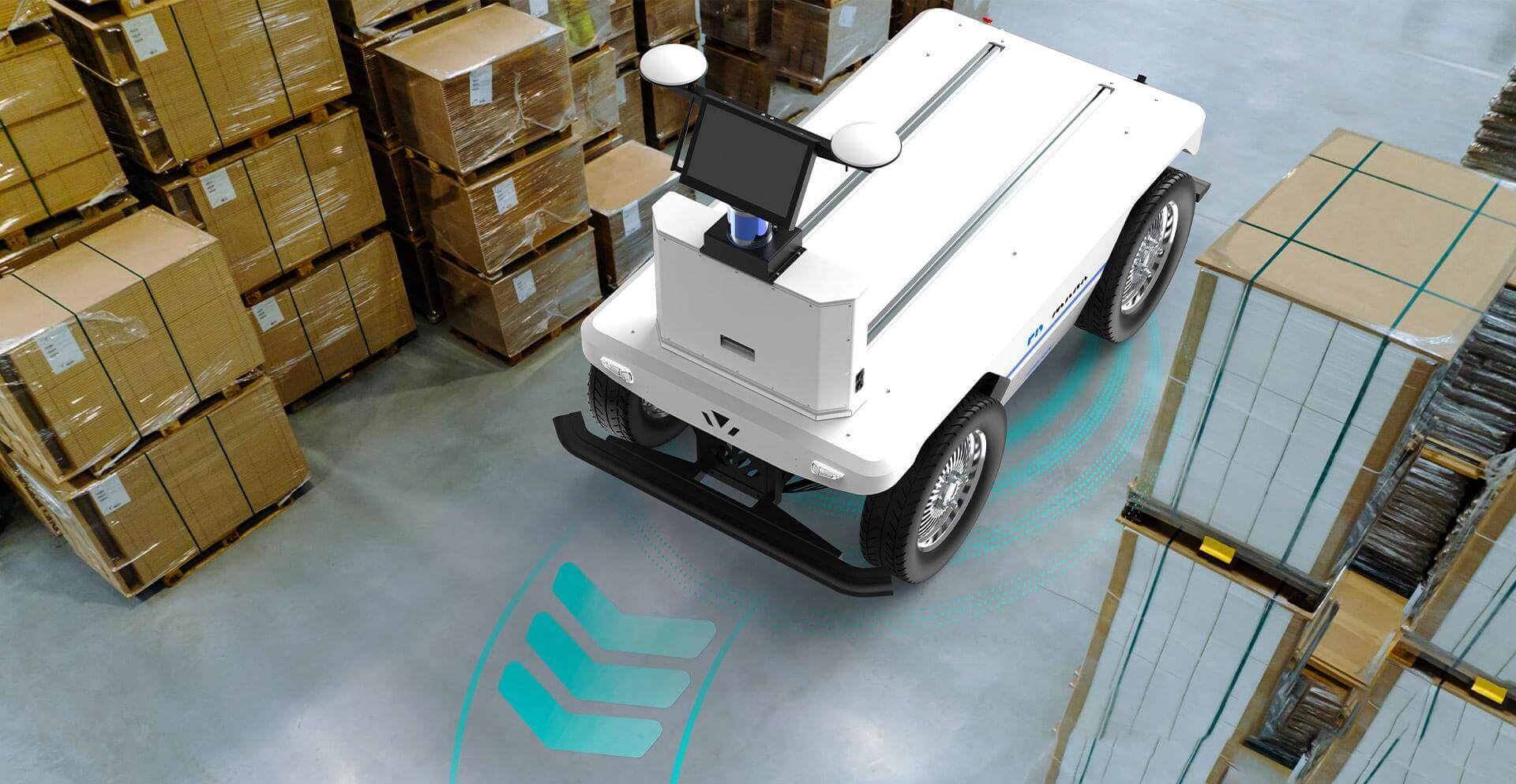

Indoor-Outdoor Narrow-space Transportation
-

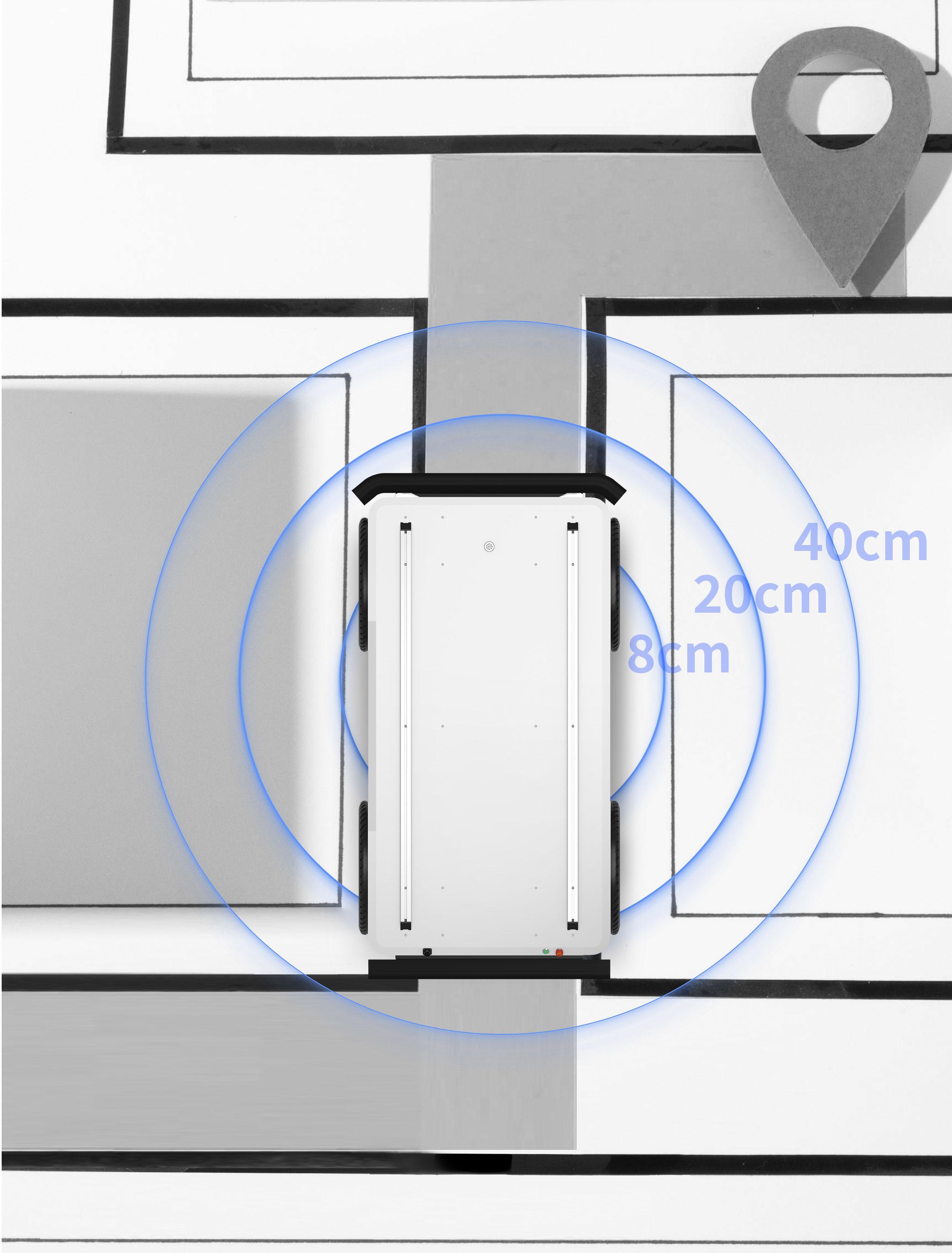

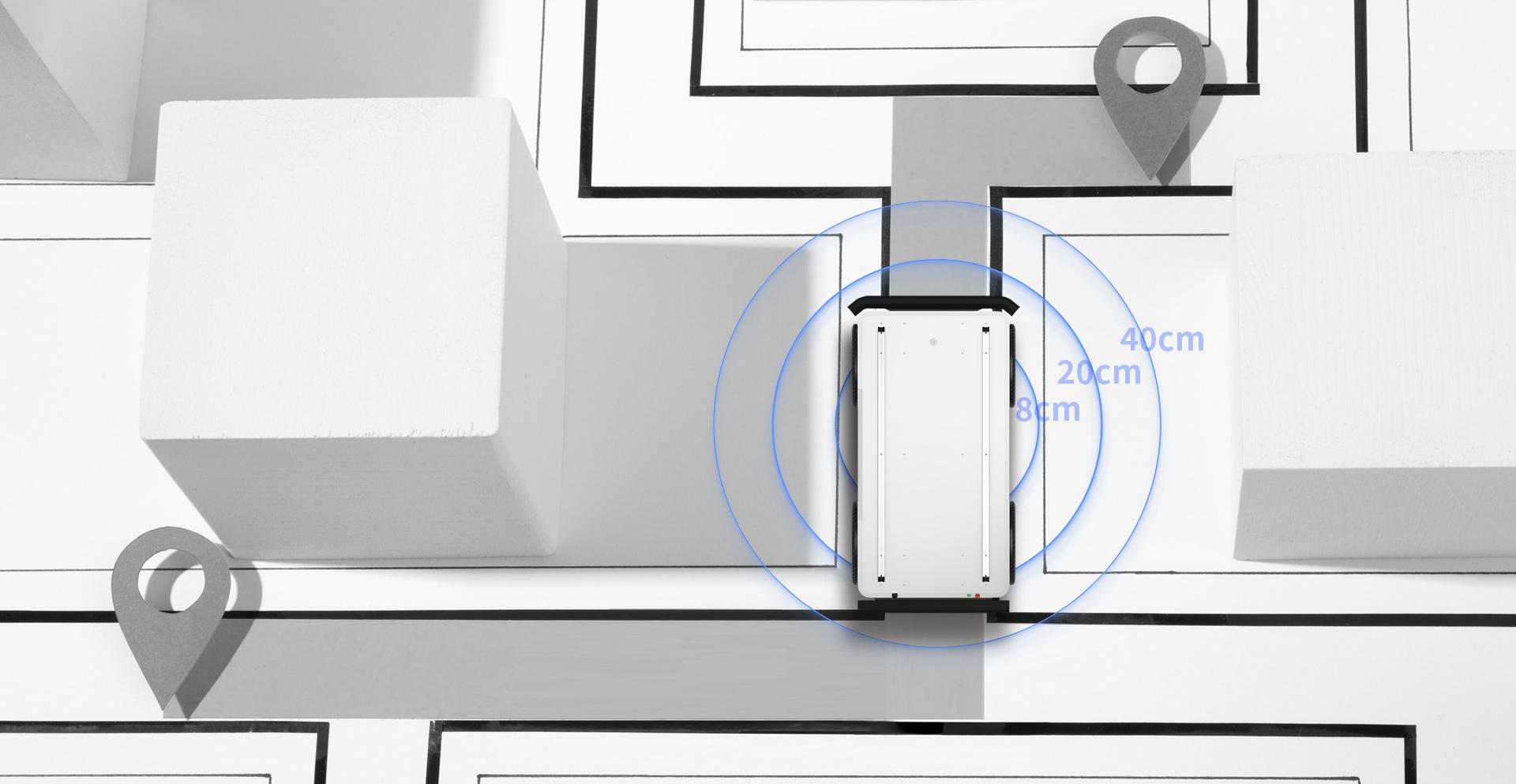

High-Precision Positioning Under Signal Degradation
-

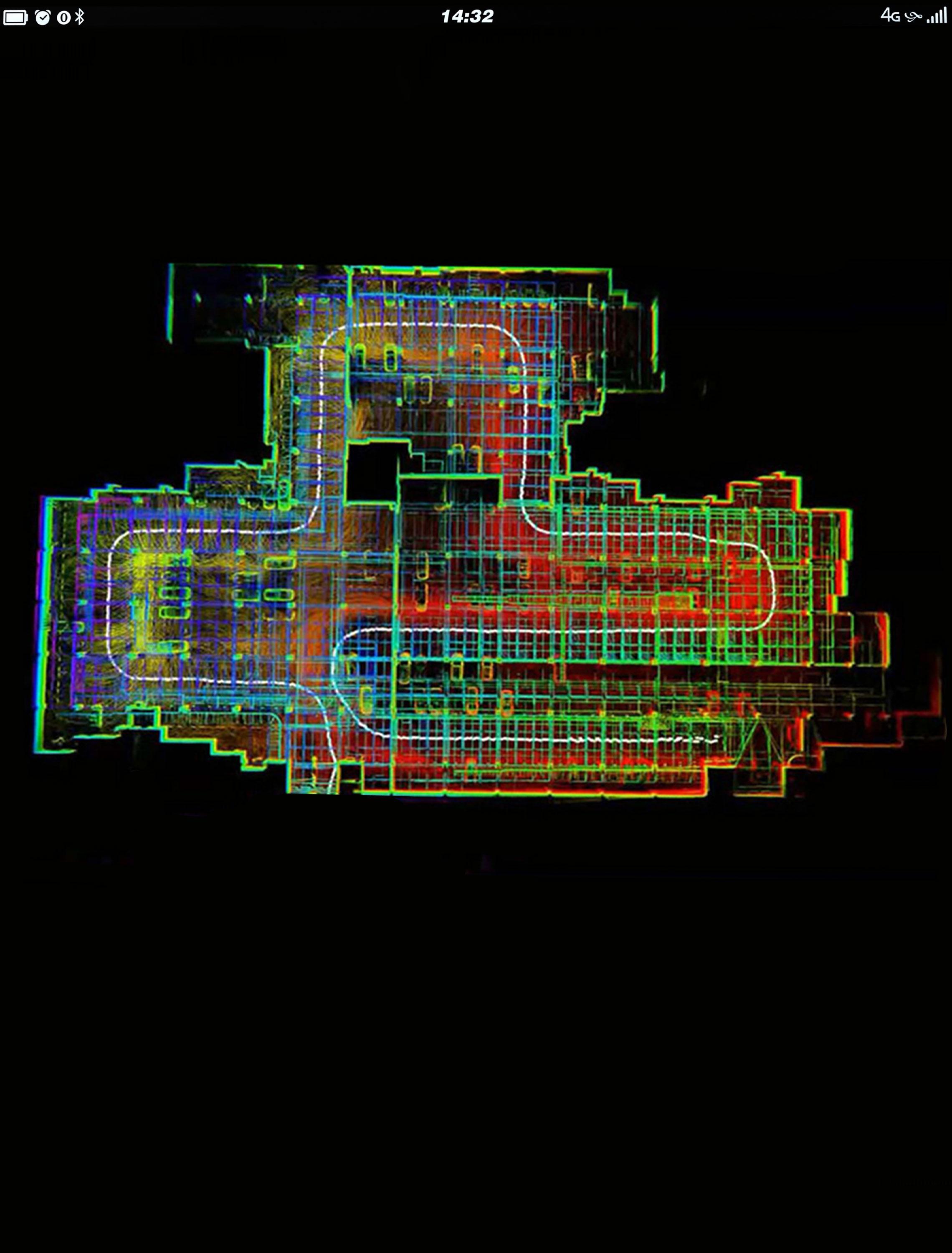

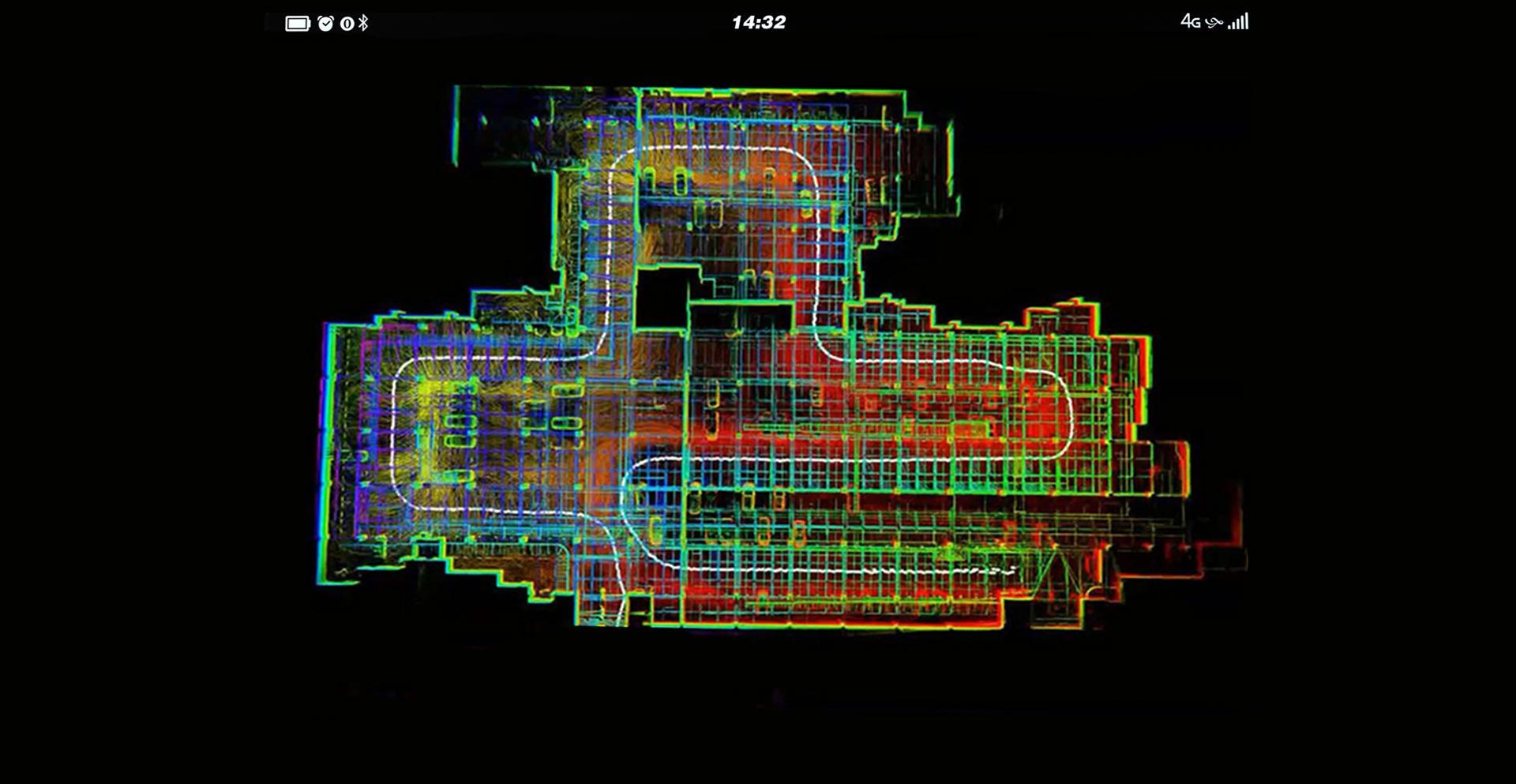

Large-Scale Mapping Performance
-
Indoor-Outdoor All-Terrain Mobility
Multi-Industry Application Capability
-
Energy
-
Manufacturing
-
Agriculture
-
Healthcare
Supporting the integration of diverse modular applications.
We anticipate collaborating with you to explore the future of the industry.
Parameter
- Size：1880mm*1025mm*585mm
- Weight：300kg
- Drive Form：Front Ackermann Steering, Rear Motor Drive
- Suspension：Non independedt suspensions
- Ground Clearance：125mm
- Wheelbase：1050mm
- Wheel Track：825mm
- Tire Diameter：508mm
- Wheel Hub Motor：3500W*1
- Battery：72V/81Ah
- Charging Time：≤4.5h
- Charging Adapter：72V/20A
- Power Supply：12V/15A; 24V/15A; 72V/20A
- Braking Method：Hydraulic Disc Brake + Motor Brake
- Parking Method：Electromagnetic power-off parking
- Payload(Level Ground)：600kg
- Max Speed：10km/h
- Wading Depth：125mm
- Mileage：95km(unladen); 75km(laden)(81Ah)
- Max Climbing Angle： 30°(unladen); 10°(laden)
- Span Width：300mm(unladen); 300mm(laden)
- Obstacle Height：140mm(unladen); 100mm(laden)
- IP Rating：IP44
- Communication Interface：CAN2.0B
- Operating Temperature：-20~50℃
- Optional Modules：NV-magic Kit/ OS-mate kit/ OS-lite kit/ OS-mars kit/ OS-saturn kit/ Docking charging station
- Support Services ：Standard ROS drive packages(SDK) / STP files / User Manual / Online Technical Support
- Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
