Application Safety
Implement dual protection with physical emergency stops and logic safety interlocks.
MK-mini
All-Scenario Ackermann Steering

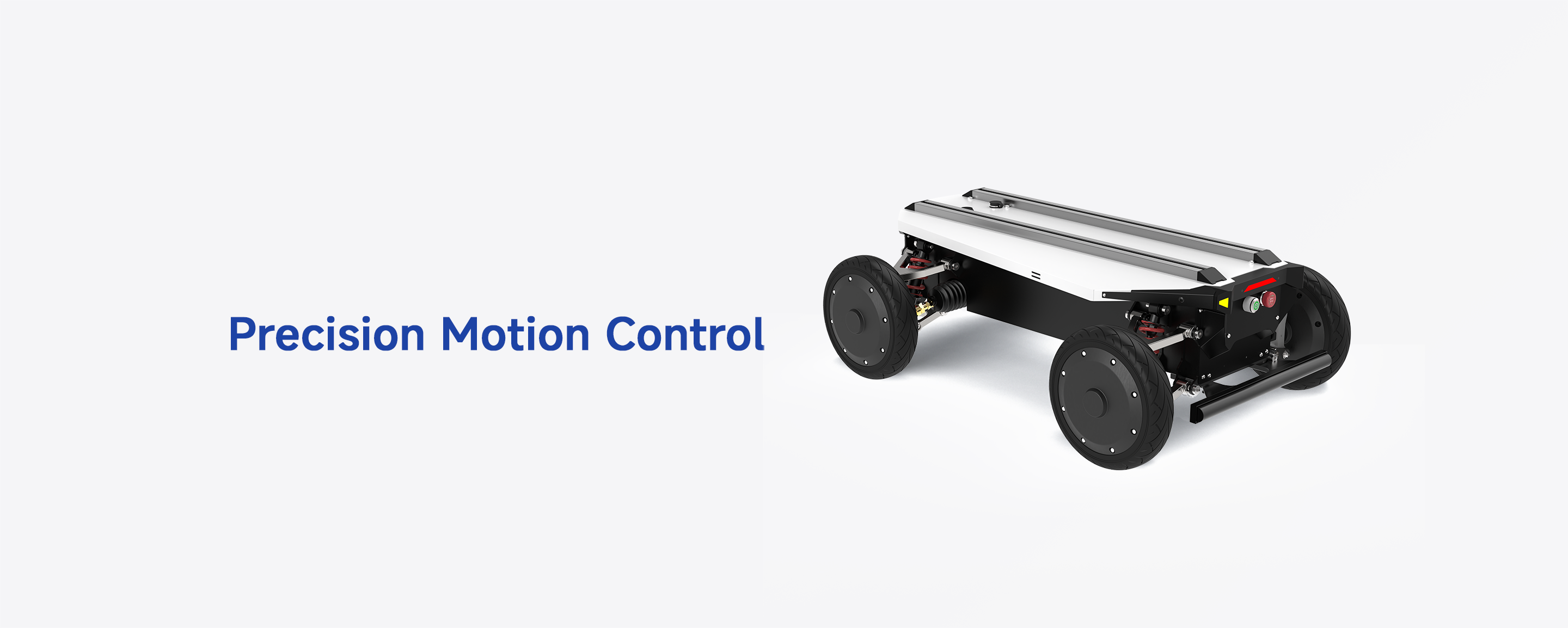

The chassis adopts an all-terrain independent suspension design with excellent shock absorption performance. Combined with millimeter-level motion control precision, it delivers smoother and more responsive dynamic performance.
Preemptive Planning Drive Algorithm
The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across Ackermann steering mode.

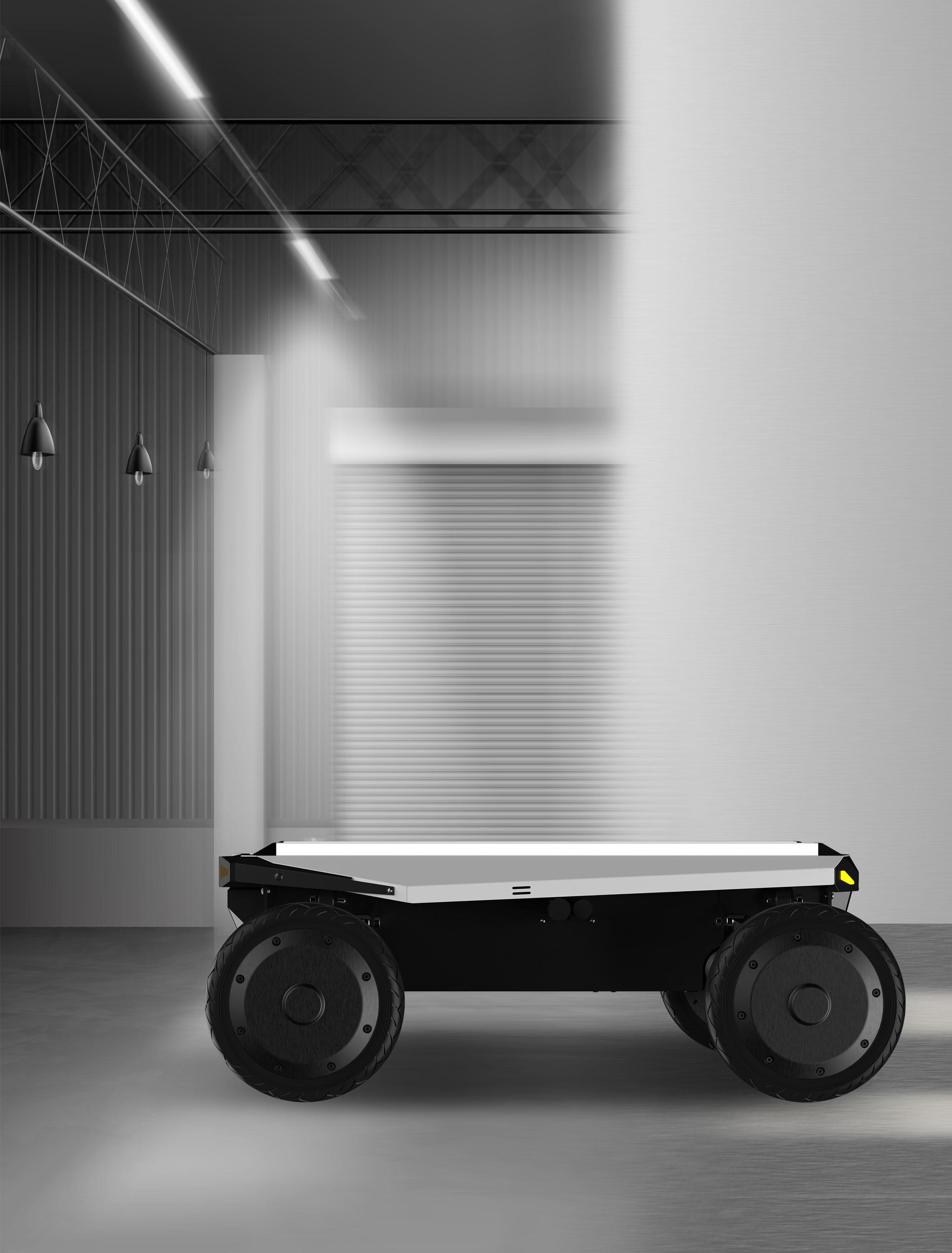

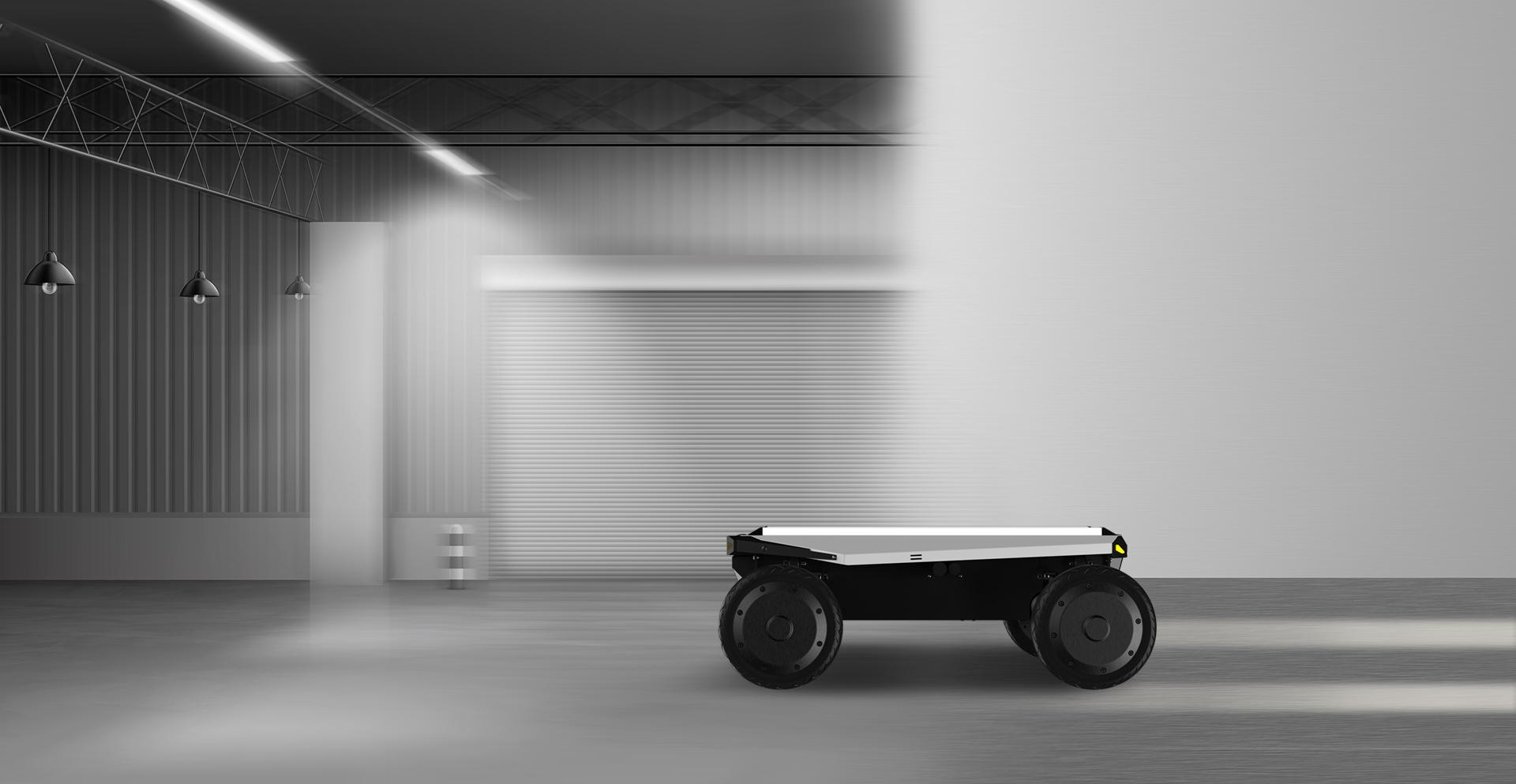

Lightweight Versatile UGV
Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.
- Obstacle Clearance Height：50mm(unladen)/50mm(laden)
- Max Climbing Angle：20°(unladen)/10°(laden)
- Max Speed：9.7km/h
- Braking Method：Motor Brake
- IP Rating：IP44
- Payload：50kg
Multi-level Security Protection
The chassis features a multilayered security architecture, covering operations, electrical systems, and control domains, achieving integrated hardware-software protection for an open and reliable modular robotic chassis.
-
-
Operational Safety
Integrates electronic braking with flexible control to deliver dual advantages of stability and agility.
-
Electrical Safety

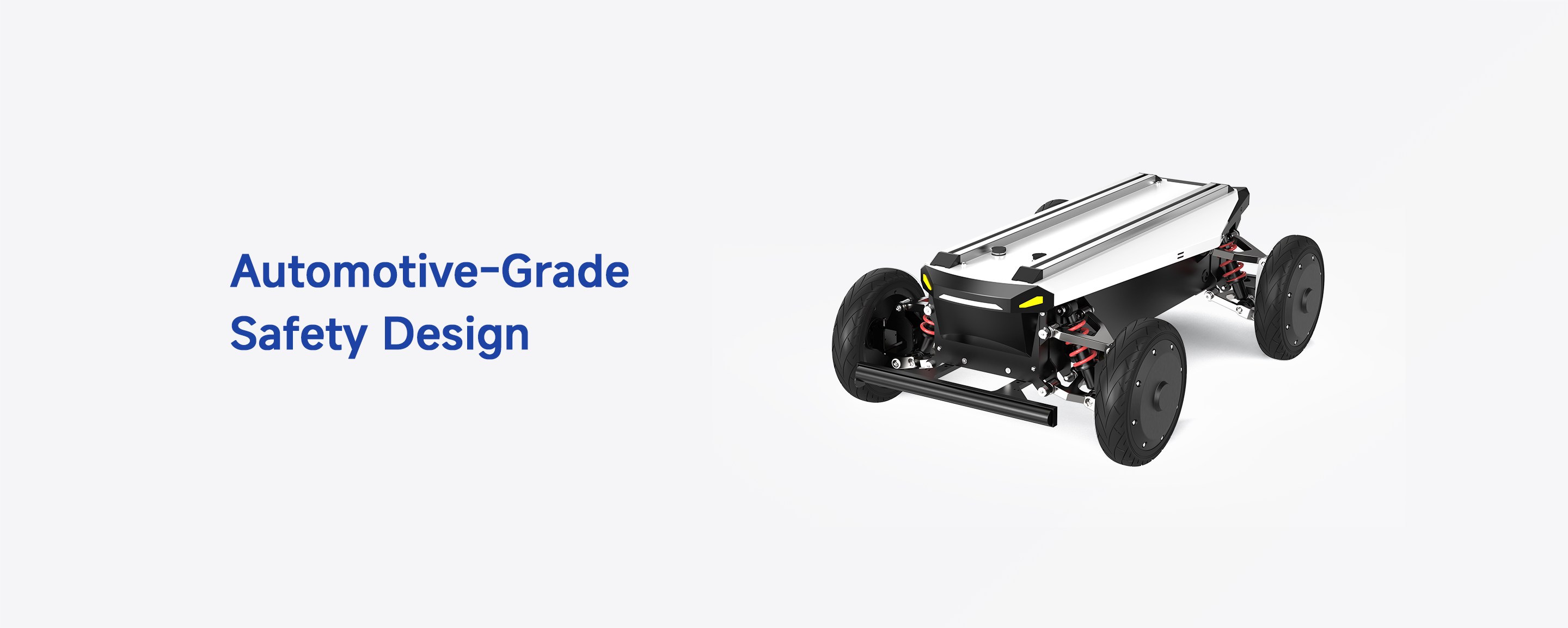

Automotive-grade EC-BOX enhances electrical stability and anti-interference capability in complex environments.
-
Control Safety
Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.
Modular Navigation Expansion
Advantages of Modular Design
Multi-Scenario Operating Capability
-

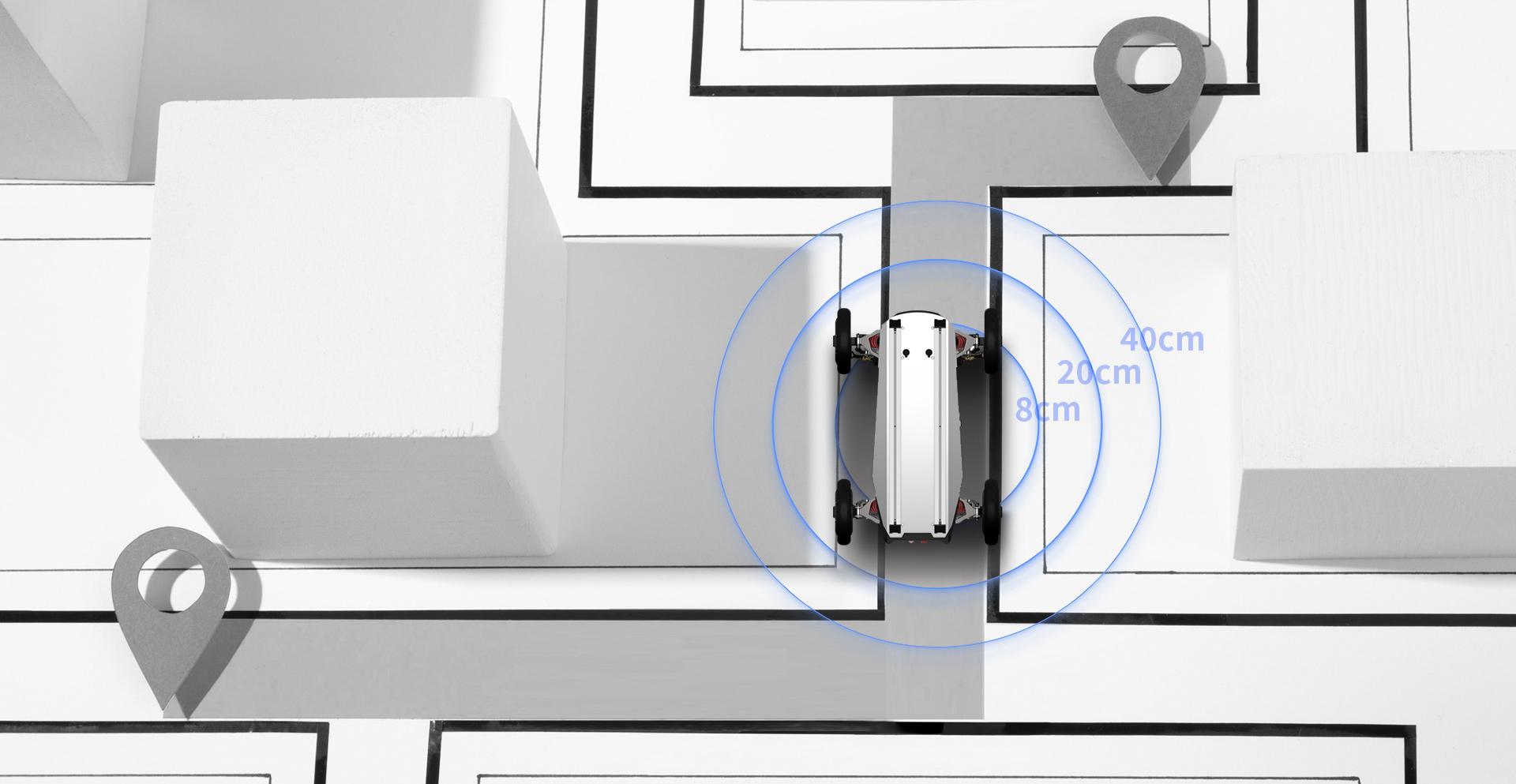

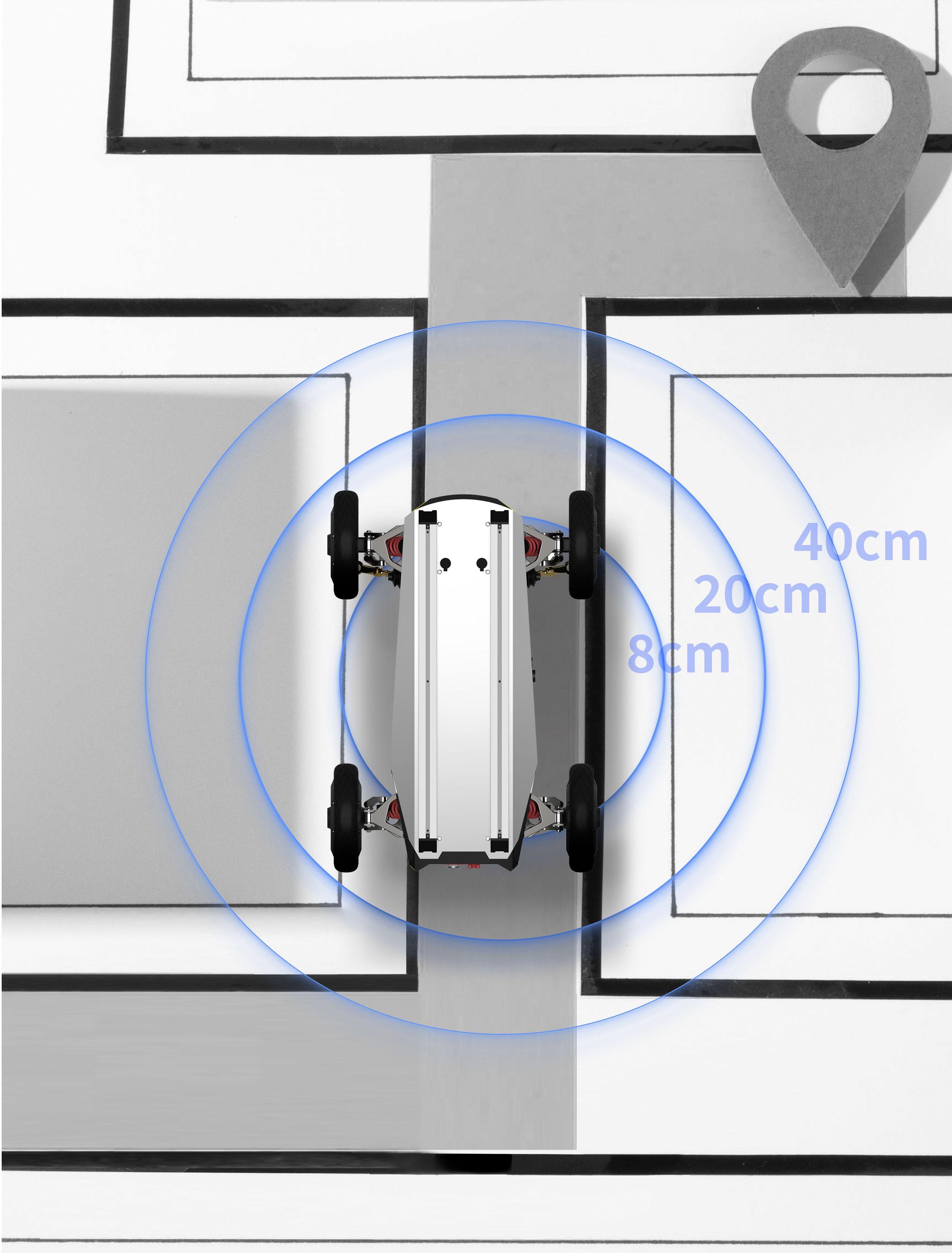

Indoor-Outdoor Narrow-space Transportation
-
High-Precision Positioning Under Signal Degradation
-

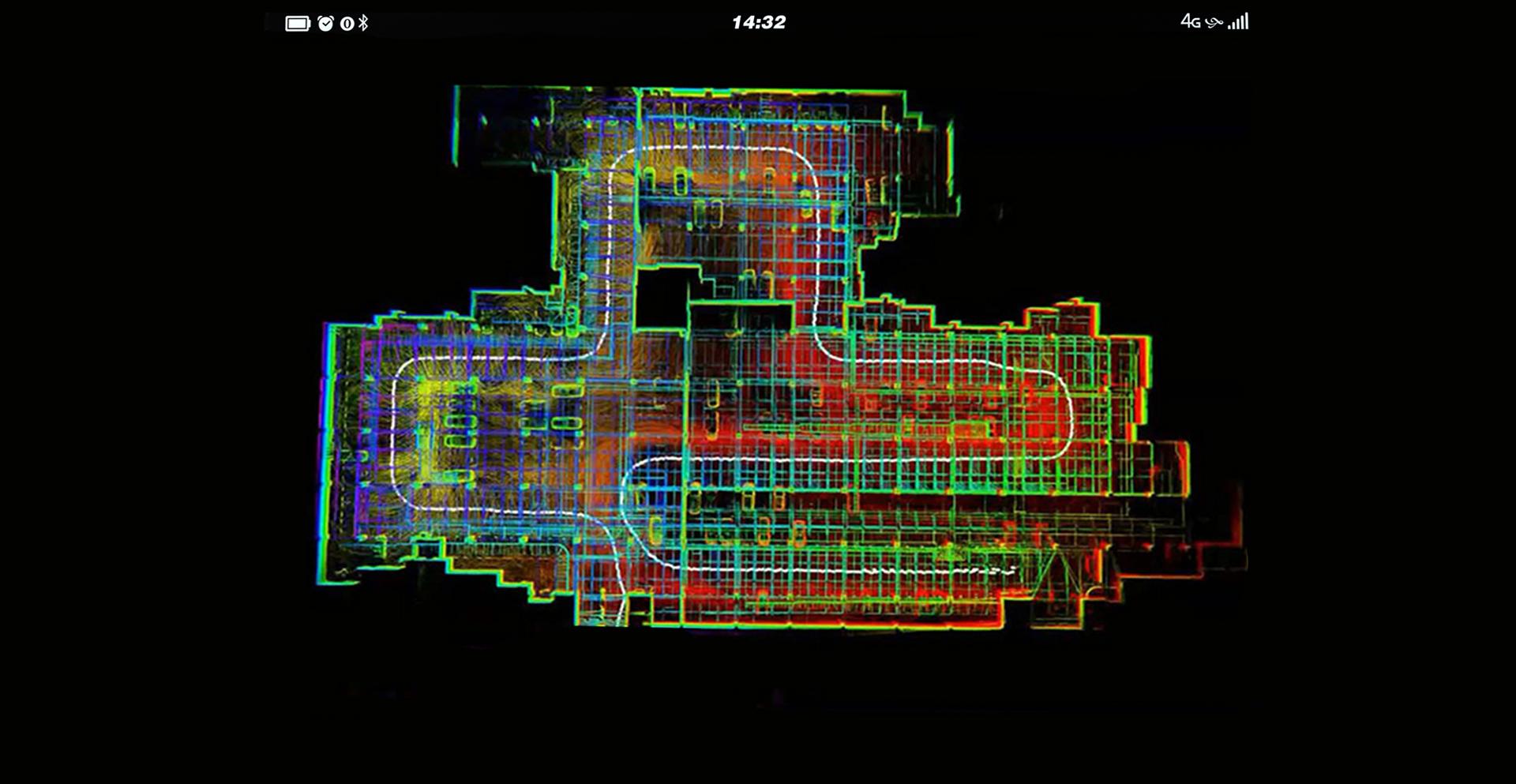

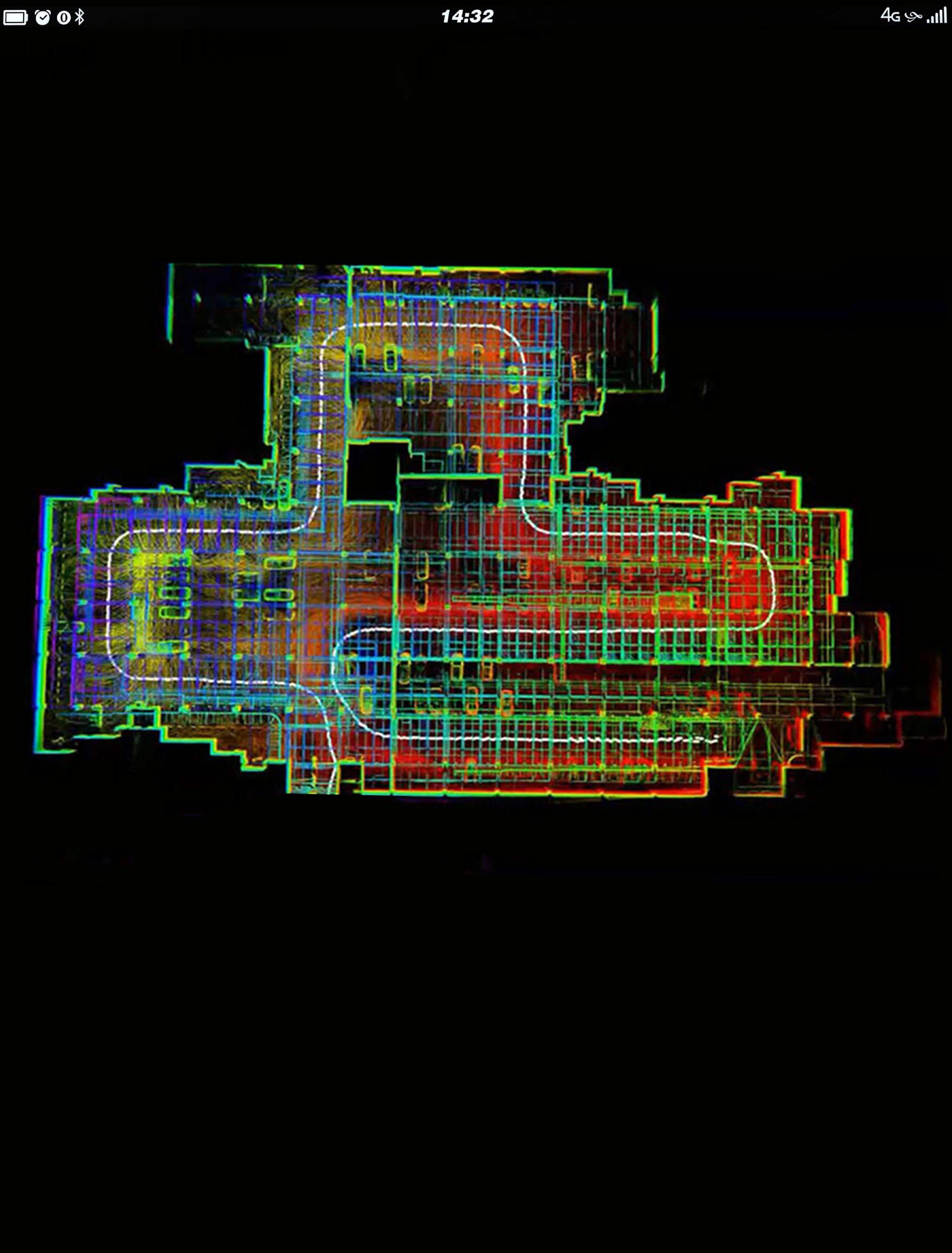

Large-Scale Mapping Performance
-

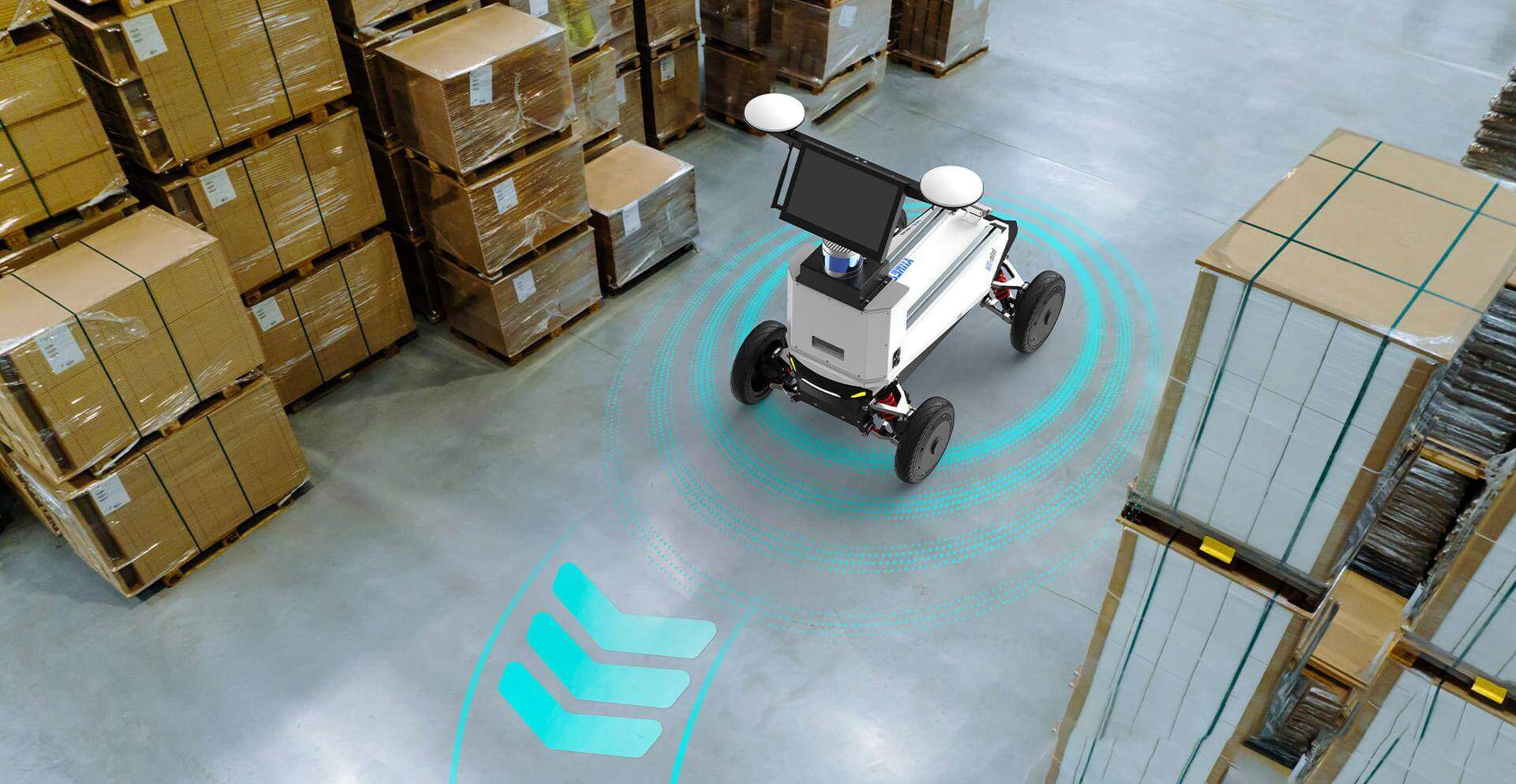

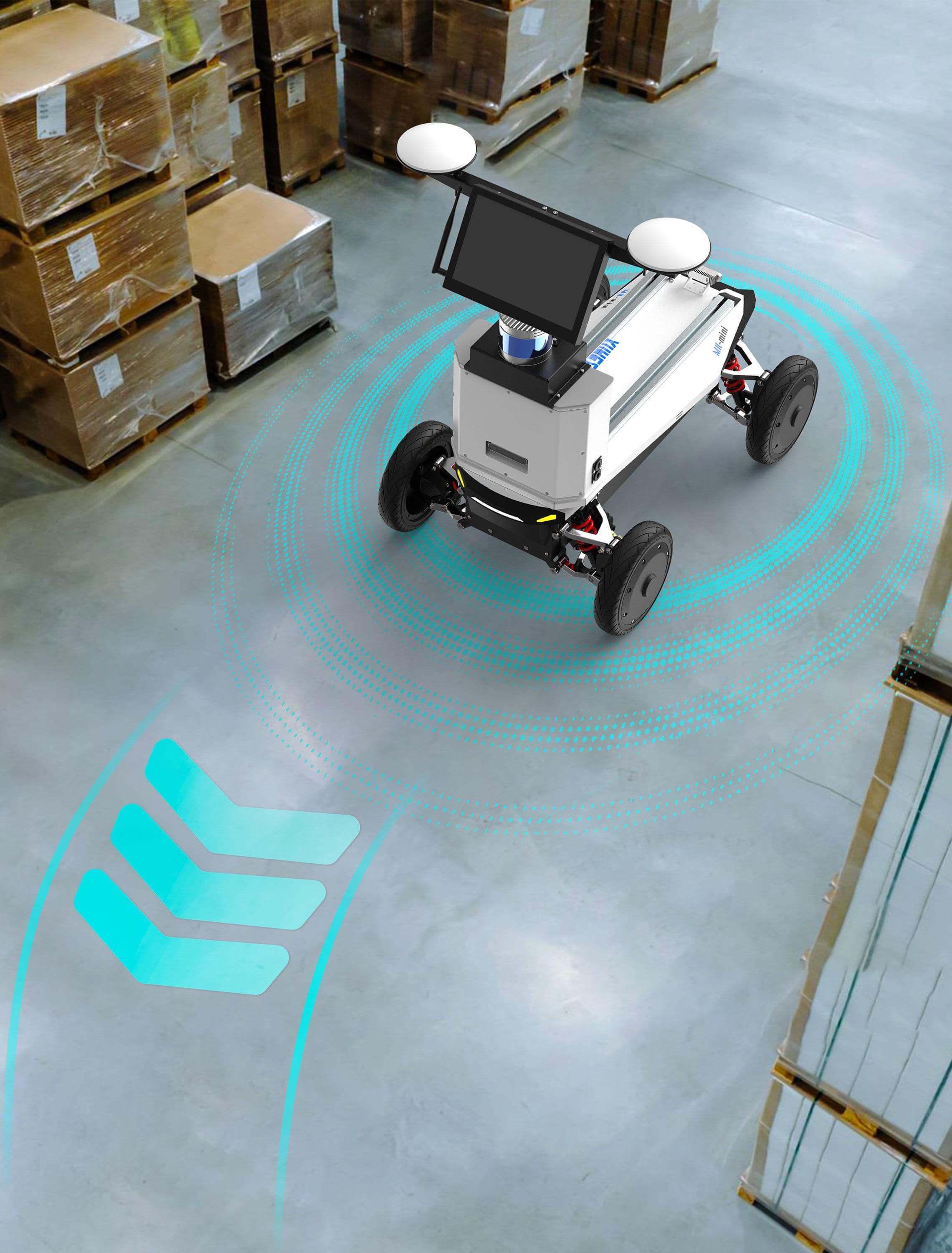

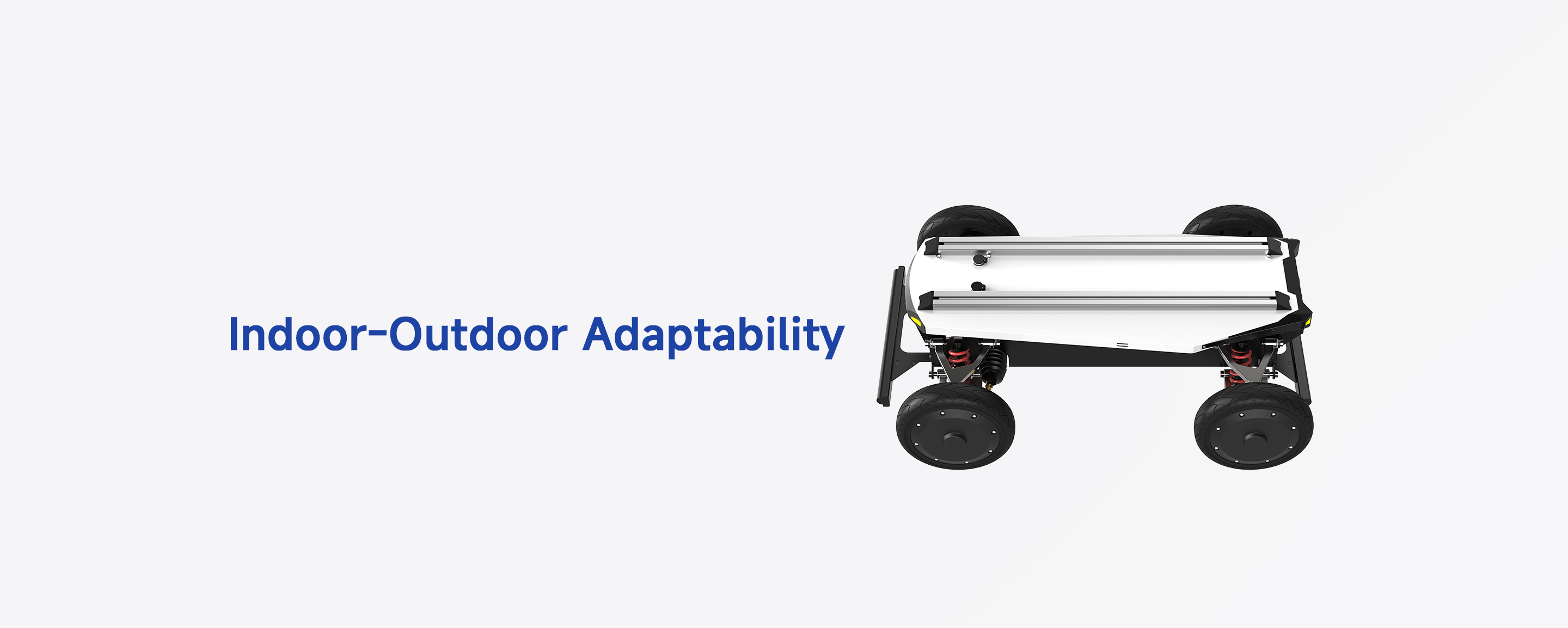

Indoor-Outdoor All-Terrain Mobility
Multi-Industry Application Capability
-
Energy
-
Manufacturing
-
Agriculture
-
Healthcare
Supporting the integration of diverse modular applications.
We anticipate collaborating with you to explore the future of the industry.
Parameter
- Size：900mm*600mm*310mm
- Weight：55kg
- Drive Form：Front Ackermann steering, rear motor drive
- Suspension：Independent Suspension
- Ground Clearance：93mm
- Wheelbase：600mm
- Wheel Track：518mm
- Tire Diameter：240mm
- Wheel Hub Motor：350W*2
- Battery：48V/20Ah(standard)
48V/40Ah(optional) - Charging Time：2-3h
- Charging Adapter：48V/10A
- Power Supply：12V/15A; 24V/15A; 48V/10A
- Braking Method：Motor Brake
- Parking Method：Motor Parking
- Payload(Level Ground)：50kg
- Max Speed：9.7km/h
- Wading Depth：100mm
- Mileage：60km(unladen); 40km(laden)
- Max Climbing Angle：20°(unladen); 10°(laden)
- Span Width：160mm(unladen); 140mm(laden)
- Obstacle Clearance Height：50mm(unladen); 50mm(laden)
- IP Rating：IP44
- Communication Interface：CAN2.0B
- Operating Temperature：-20~50℃
- Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
- Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
- Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
- Size：920mm*740mm*350mm
- Weight：71kg
- Drive Form：Front Ackermann steering, rear motor drive
- Suspension：Independent Suspension
- Ground Clearance：150mm
- Wheelbase：600mm
- Wheel Track：600mm
- Tire Diameter：324mm
- Wheel Hub Motor：400W*2
- Battery：48V/18Ah
- Charging Time：2-3h
- Charging Adapter：48V/10A
- Power Supply：12V/15A; 24V/15A; 48V/10A
- Braking Method：Motor Brake
- Parking Method：Electromagnetic power-off parking
- Payload(Level Ground)：80kg
- Max Speed：9.7km/h
- Wading Depth：120mm
- Mileage：35km(unladen); 25km(laden)
- Max Climbing Angle：20°(unladen); 10°(laden)
- Span Width：230mm(unladen); 180mm(laden)
- Obstacle Height：90mm(unladen); 50mm(laden)
- IP Rating：IP42
- Communication Interface：CAN2.0B
- Operating Temperature：-20~50℃
- Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
- Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
- Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
