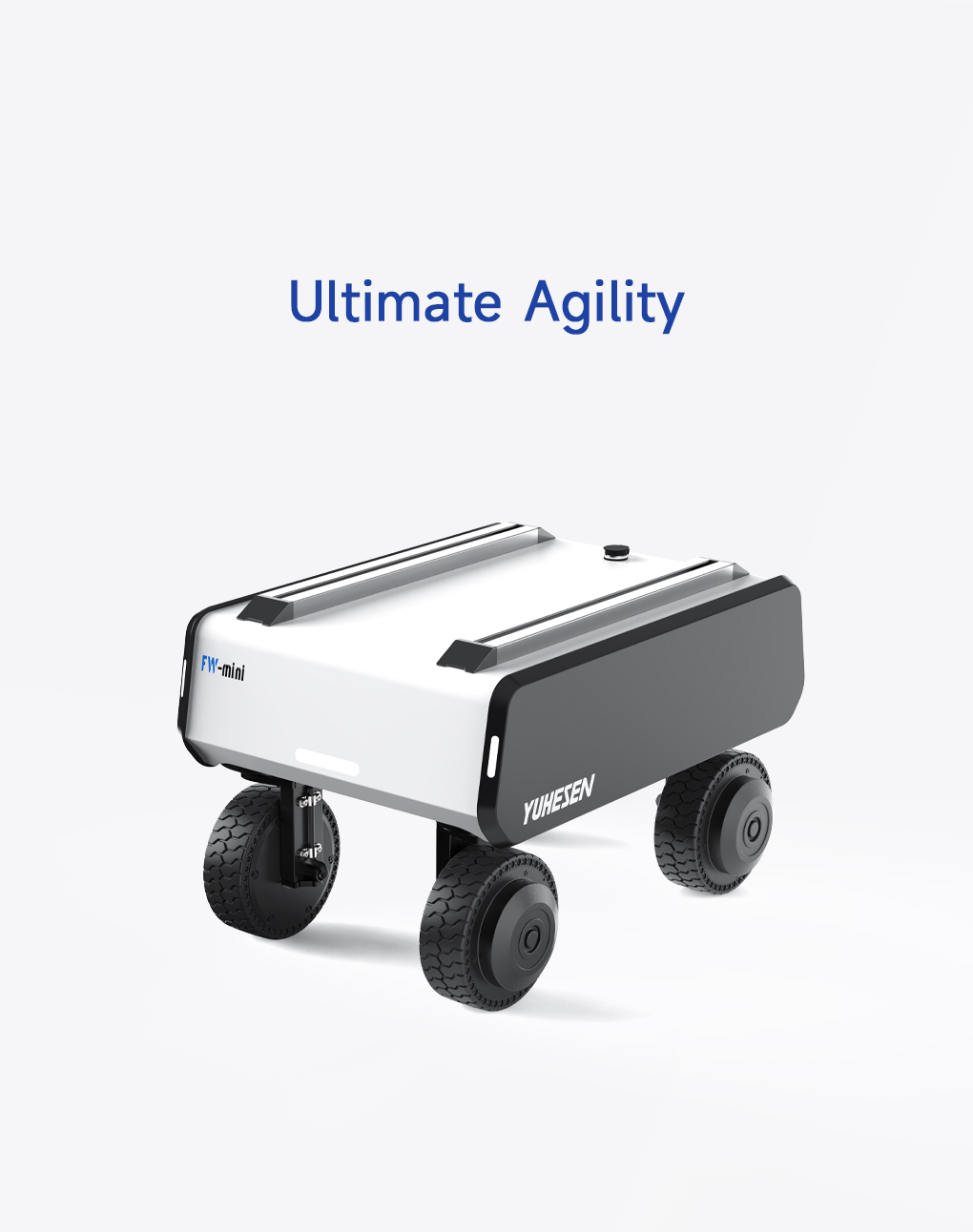

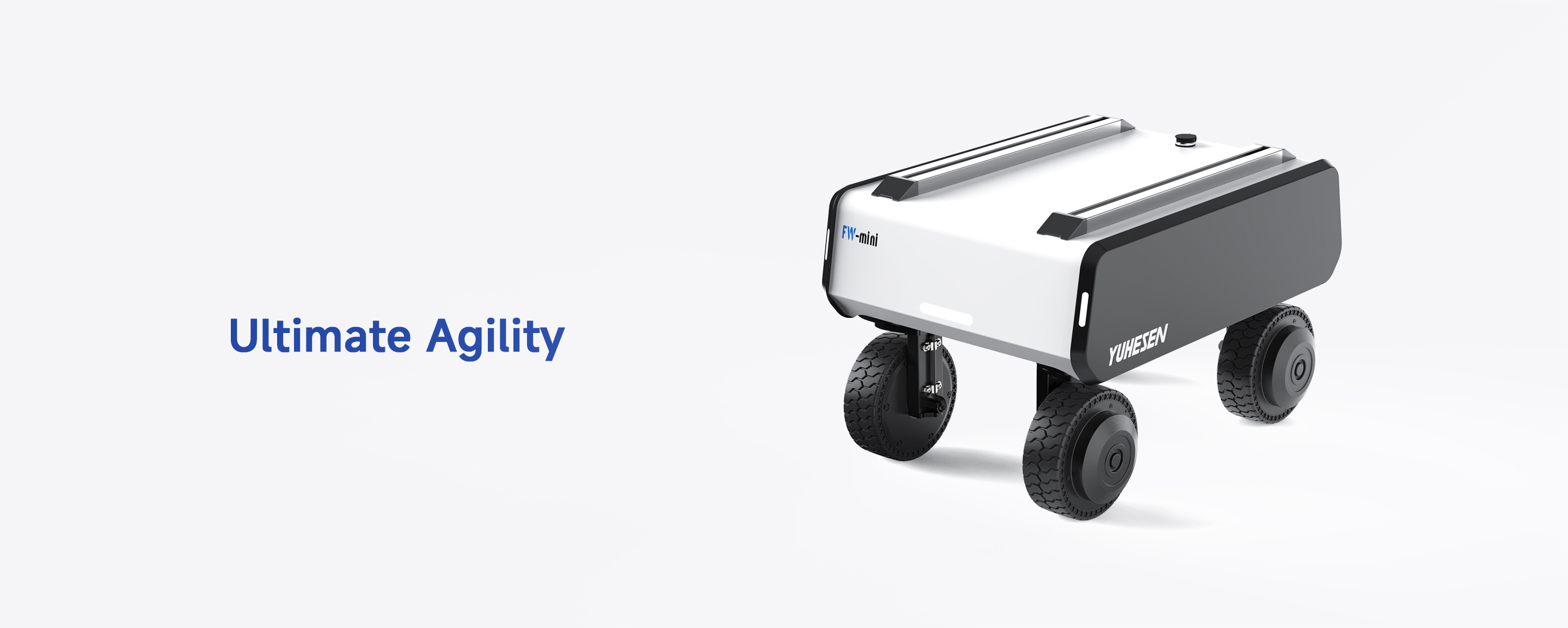

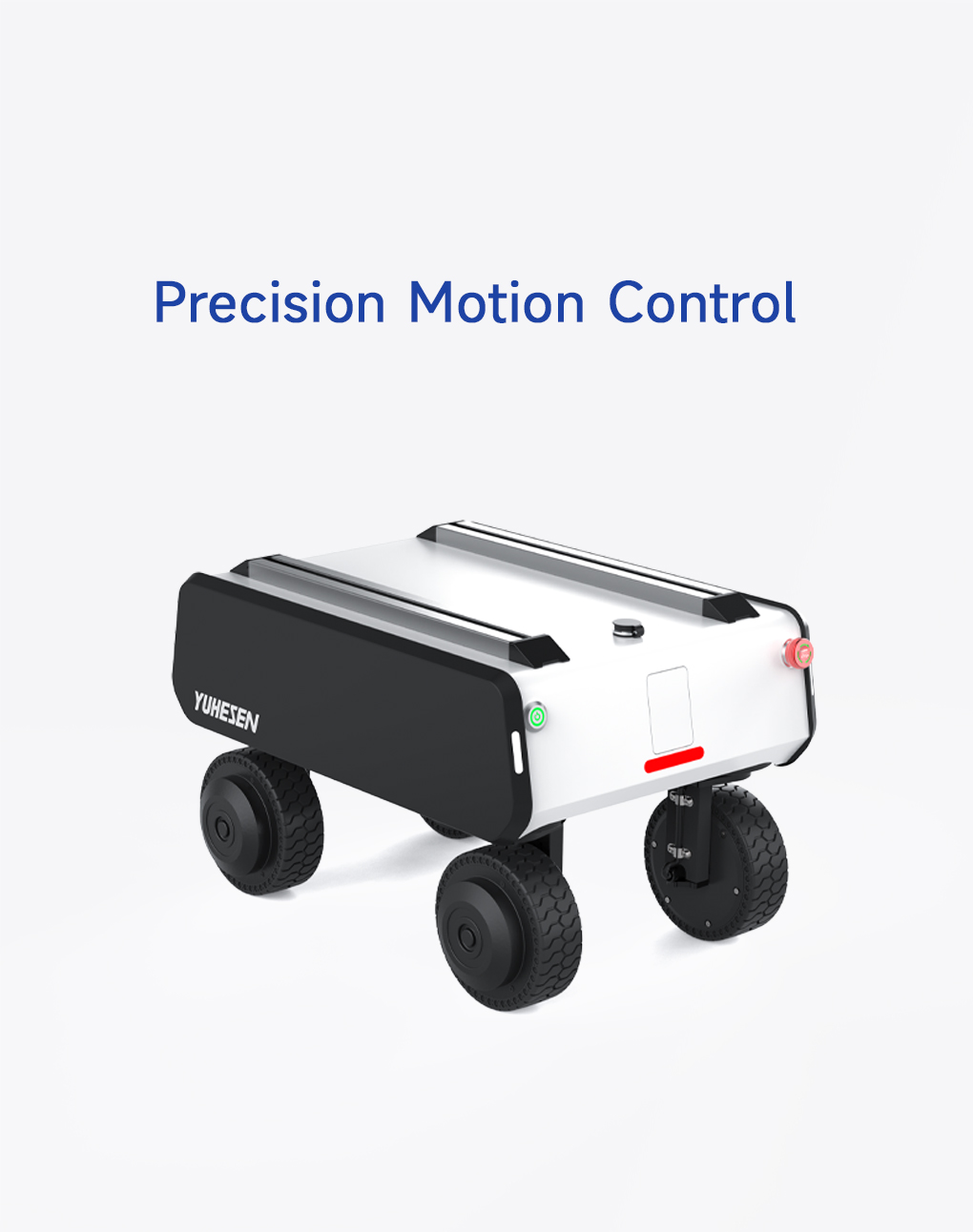

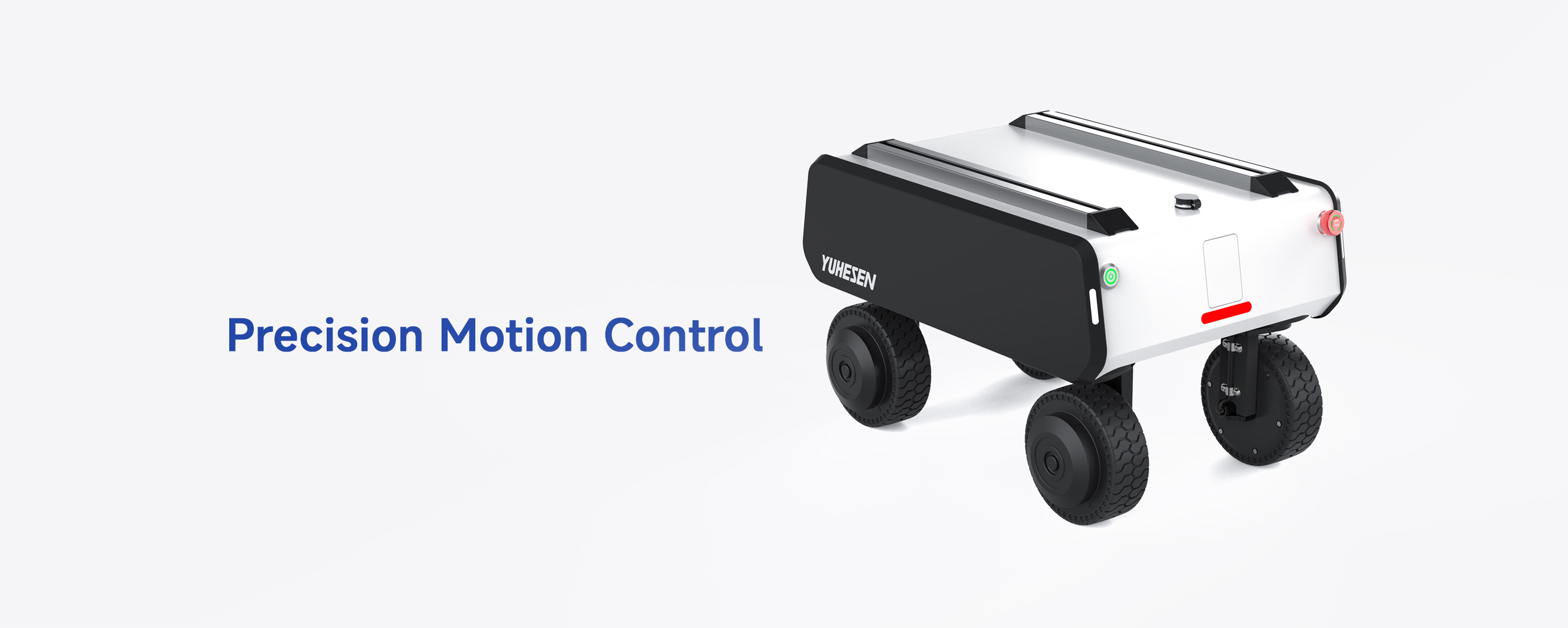

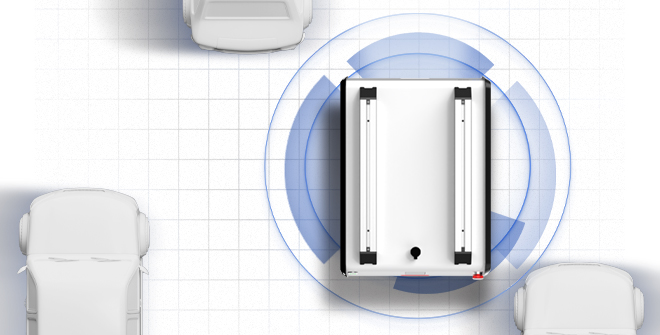

High-Precision Omnidirectional

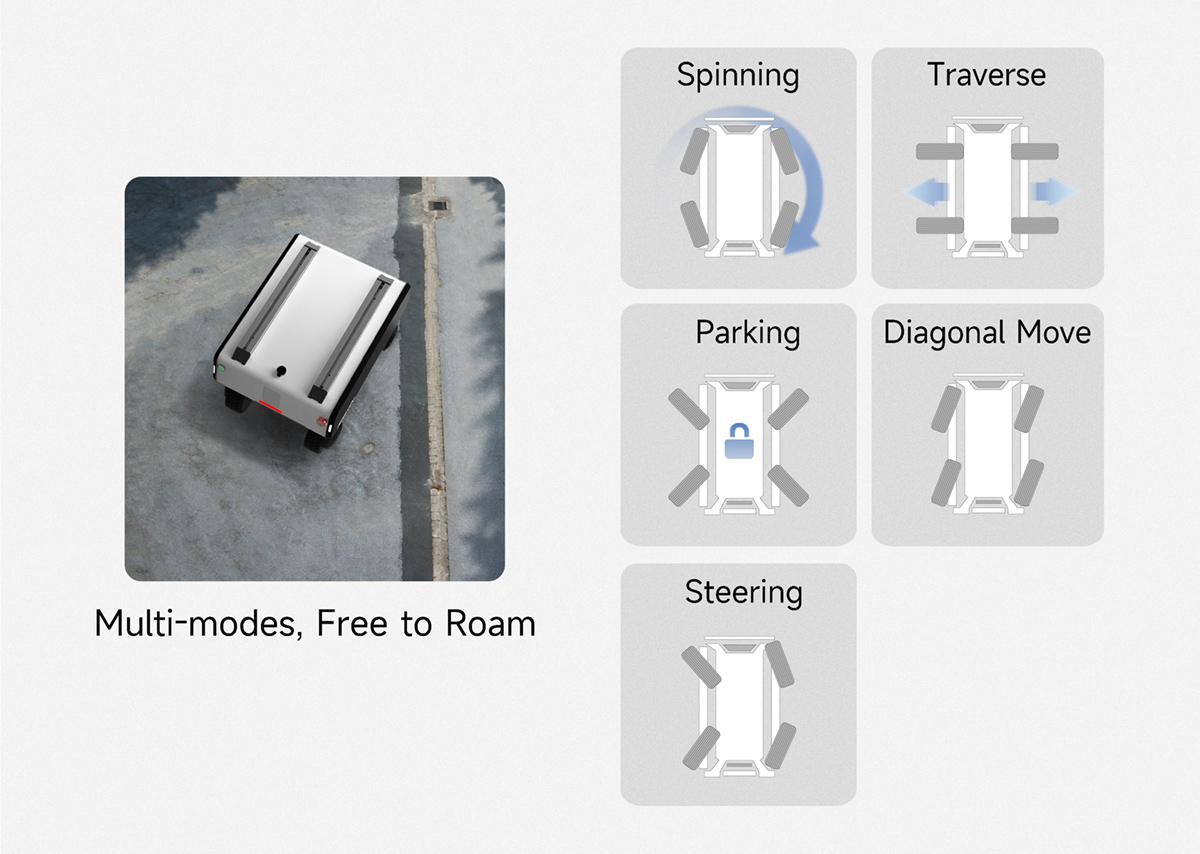

The chassis features a high-precision real-time motion control algorithm, supports multiple motion control modes, and is equipped with functions such as in-place turning, dual Ackermann steering, lateral and oblique movement.


Preemptive Planning Drive Algorithm

The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across multiple motion modes.

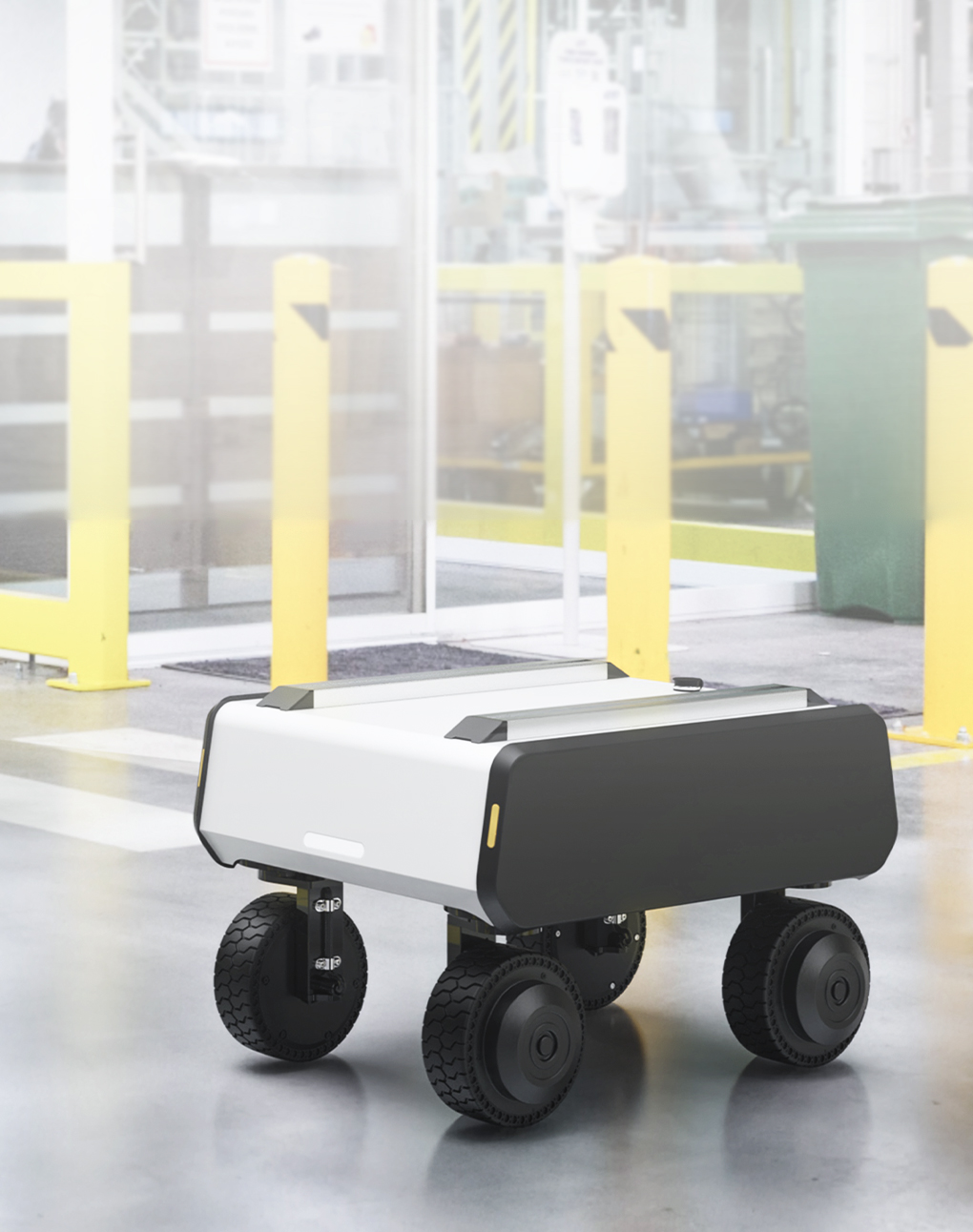

Lightweight Omnidirectional UGV

Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.

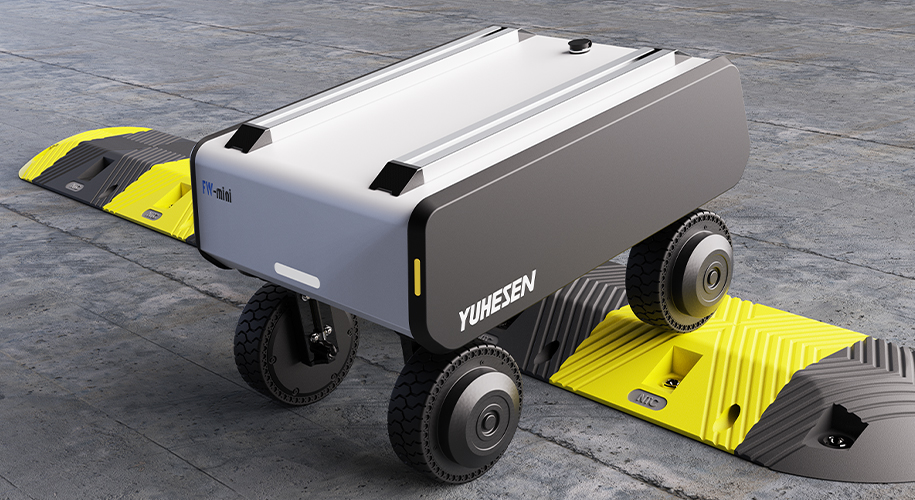

  • Obstacle Clearance Height：40mm(unladen)/40mm(laden)
  • Max Climbing Angle：30°(unladen)/15°(laden)
  • Max Speed：3.6km/h
  • Braking Method：Motor Brake
  • IP Rating：IP55
  • Payload：30kg

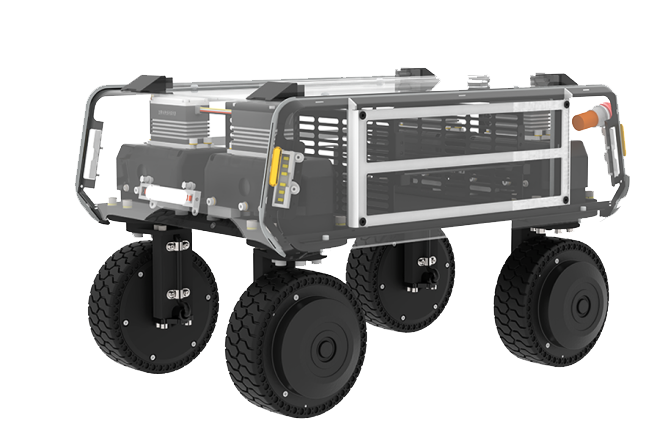

Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.

  • 1.png

    Application Safety

    Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

  • f52482855f3b498ebad59b385a717f70.png

    Operational Safety

    Integrates electronic braking with flexible control to deliver dual advantages of stability and smoothness.

  • ba4eb03488c386c4df9dc8e97e3936c0.png

    Electrical Safety

    Automotive-grade EC-BOX enhances electrical stability and anti-interference capability in complex environments.

  • 6c1d9688e726771a87fc3bc971e8275b.png

    Control Safety

    Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.

No record
No record

Multi-Scenario Operating Capability

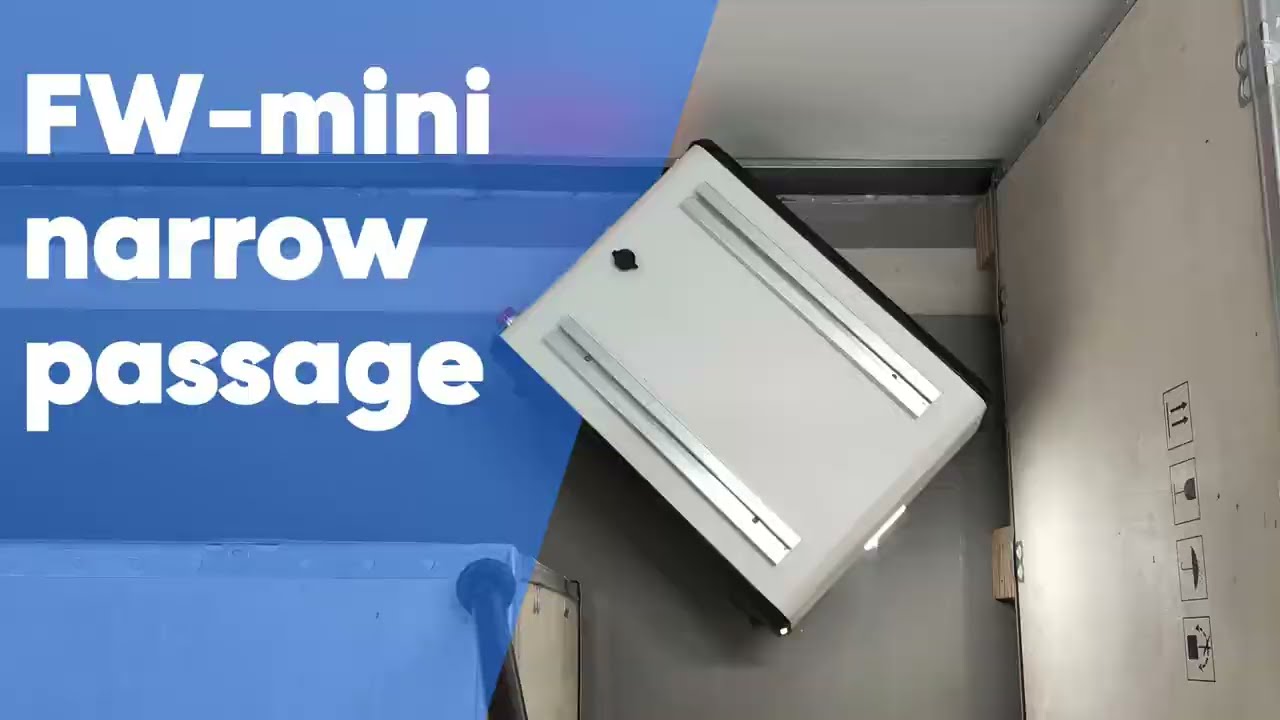

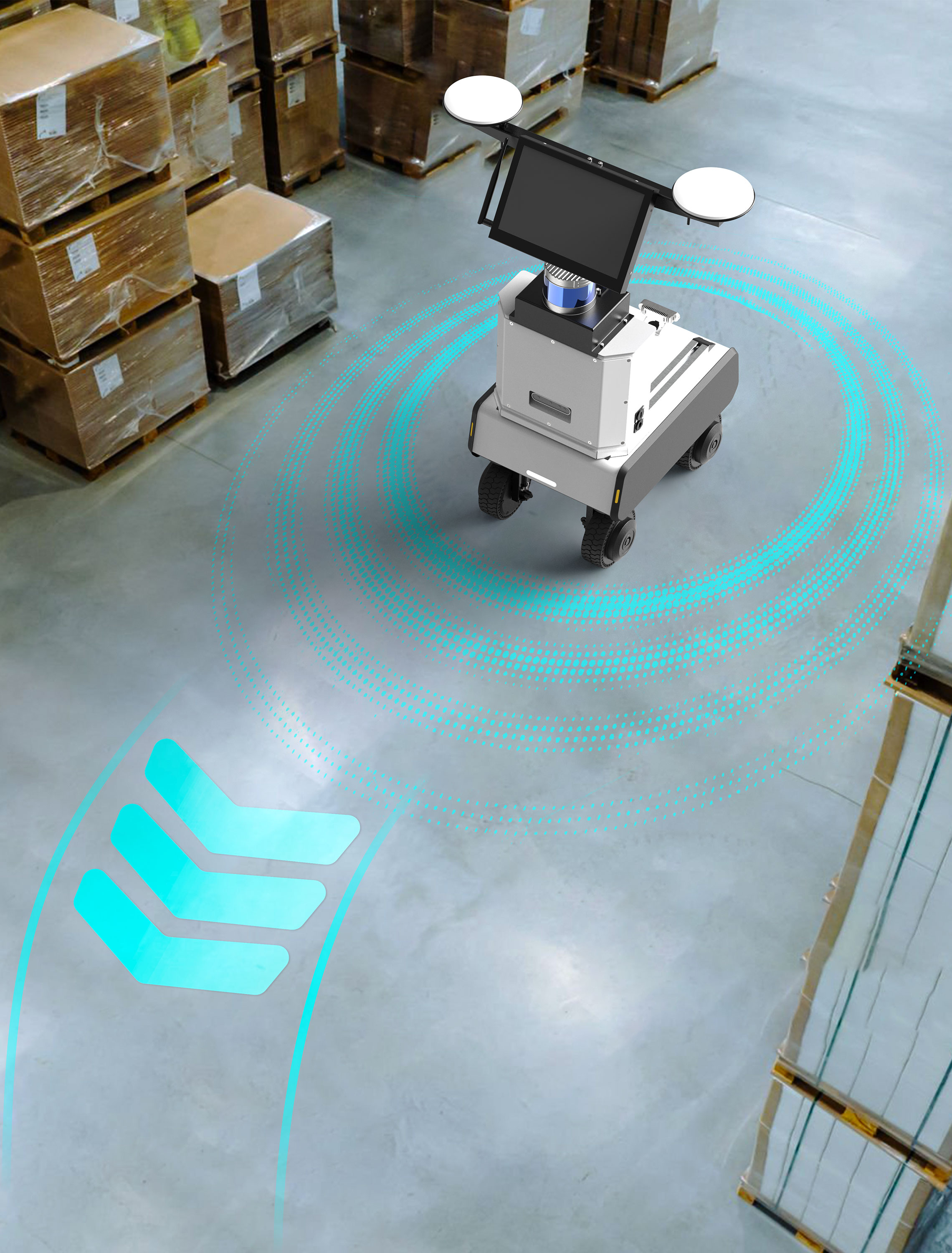

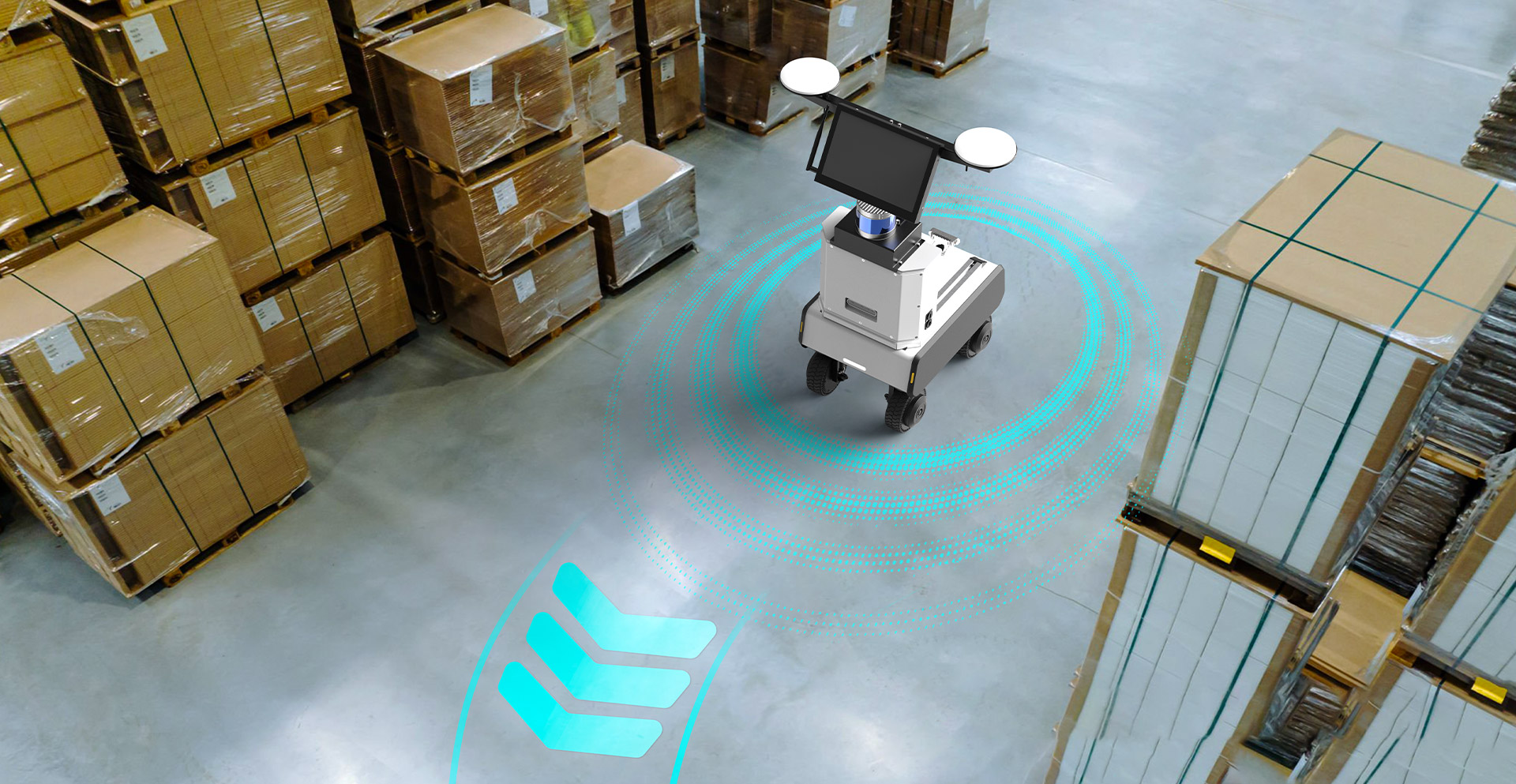

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

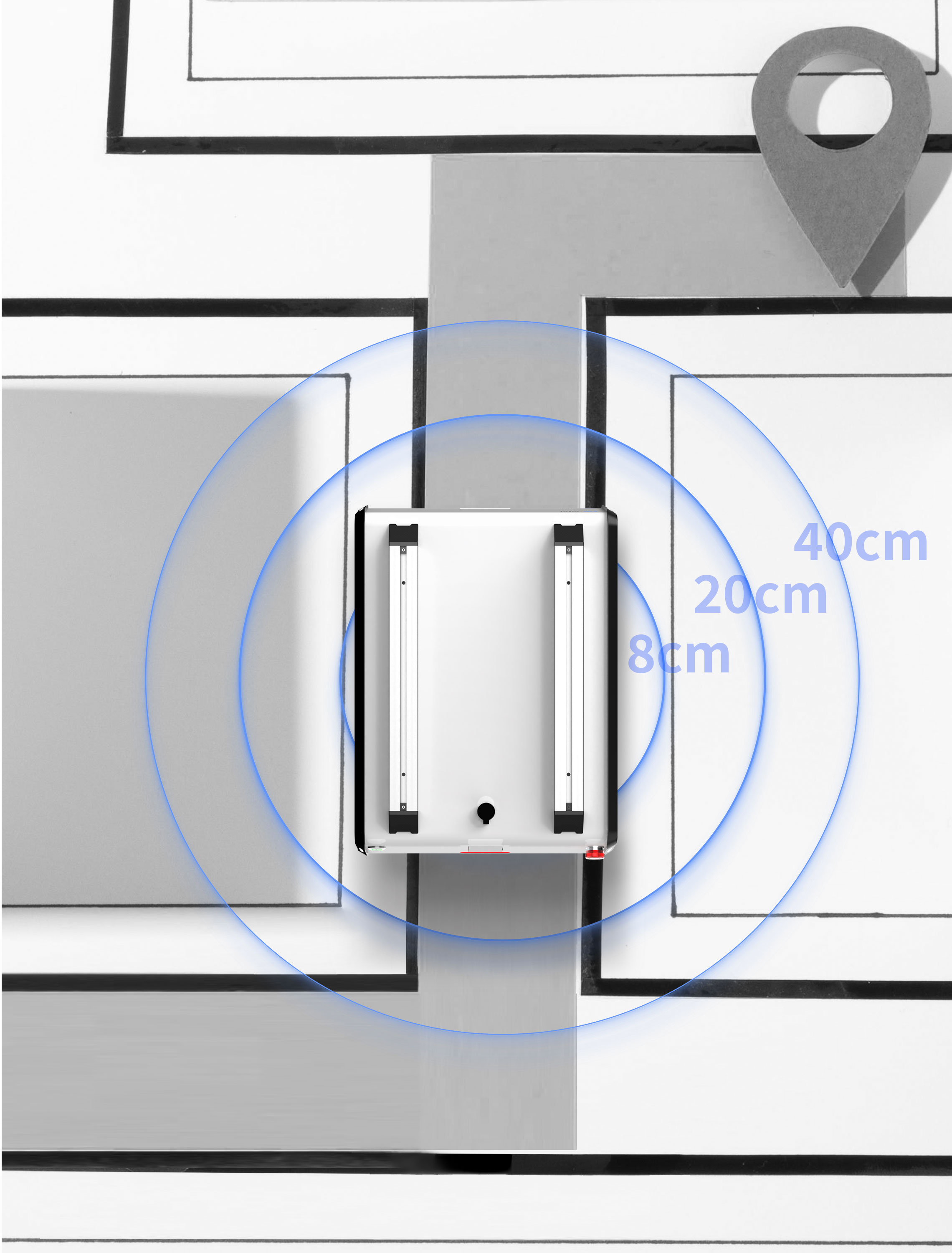

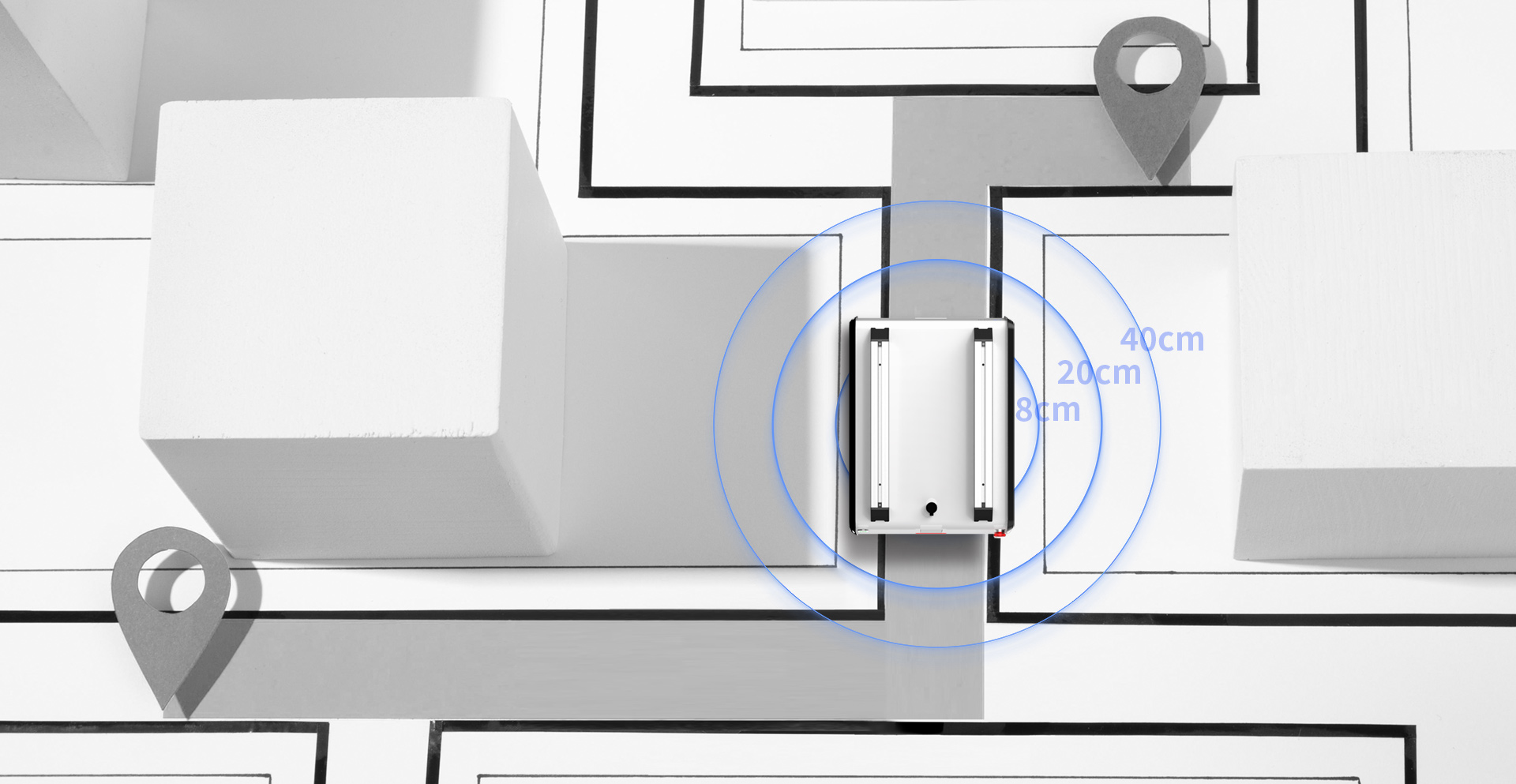

  • High-Precision Positioning Under Signal Degradation


    High-Precision Positioning Under Signal Degradation

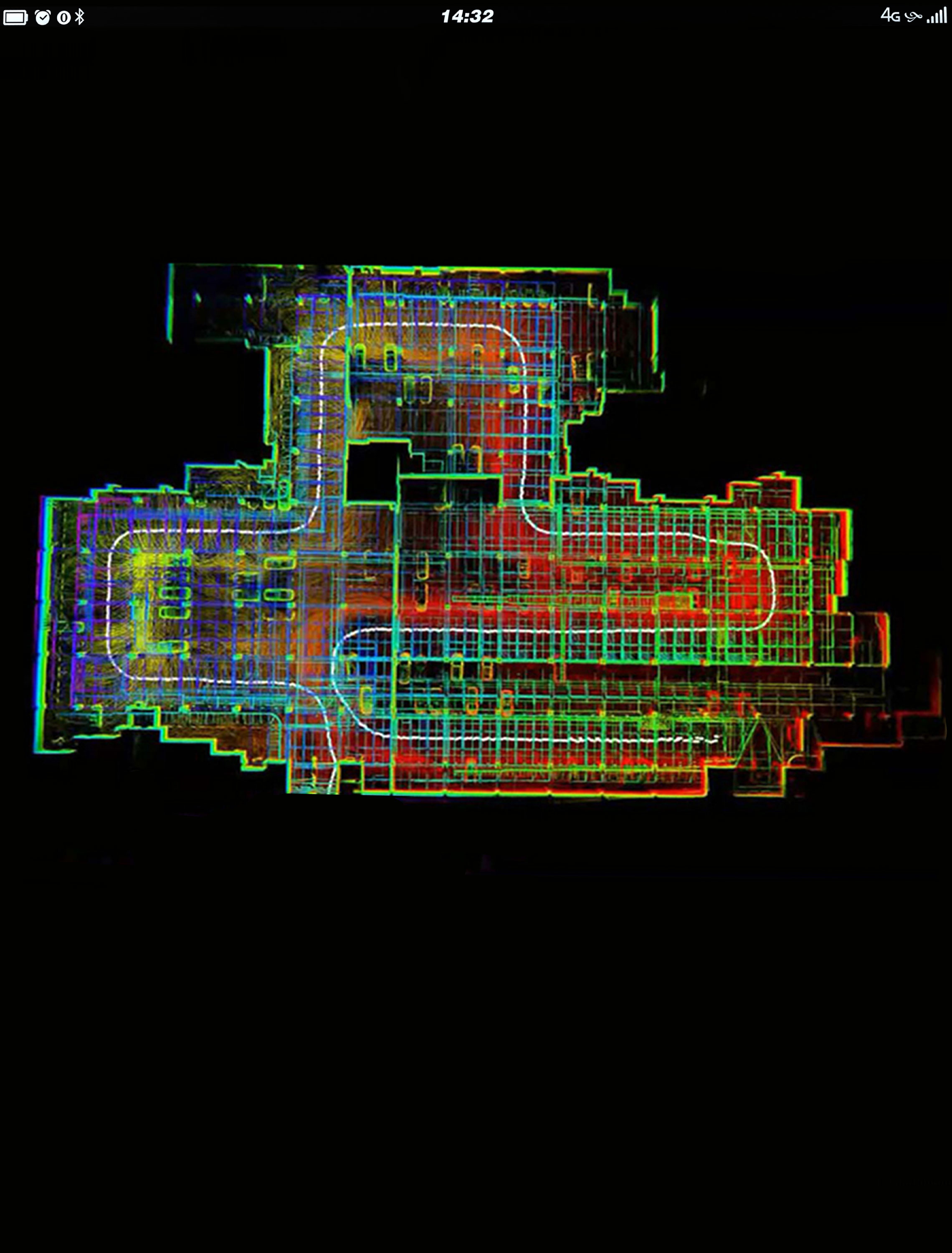

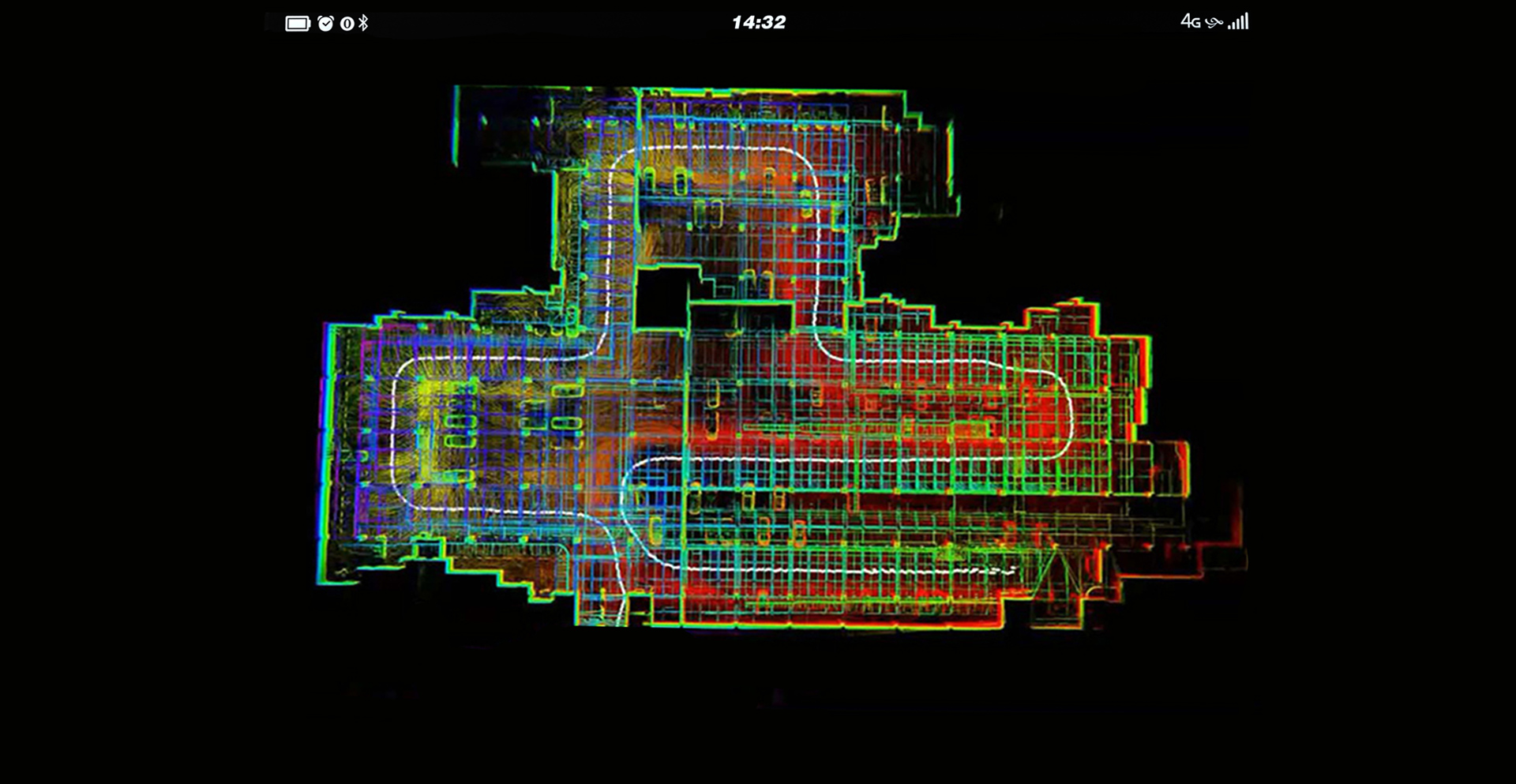

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

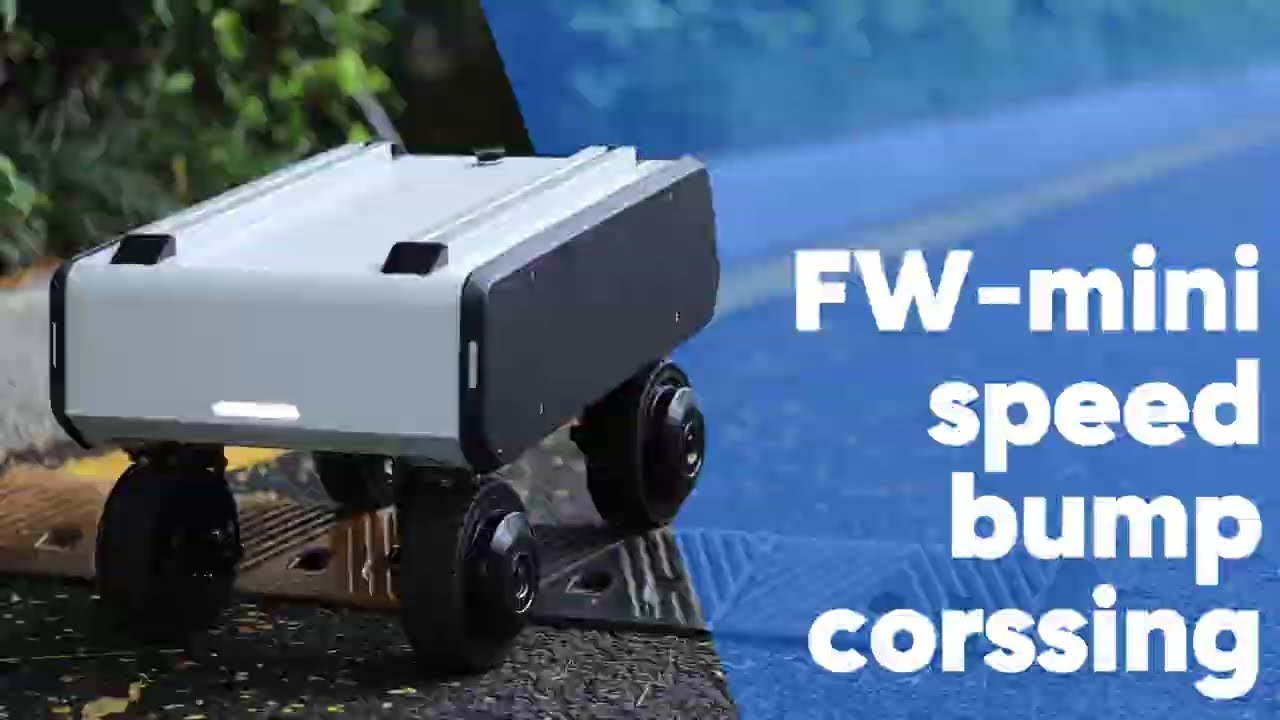

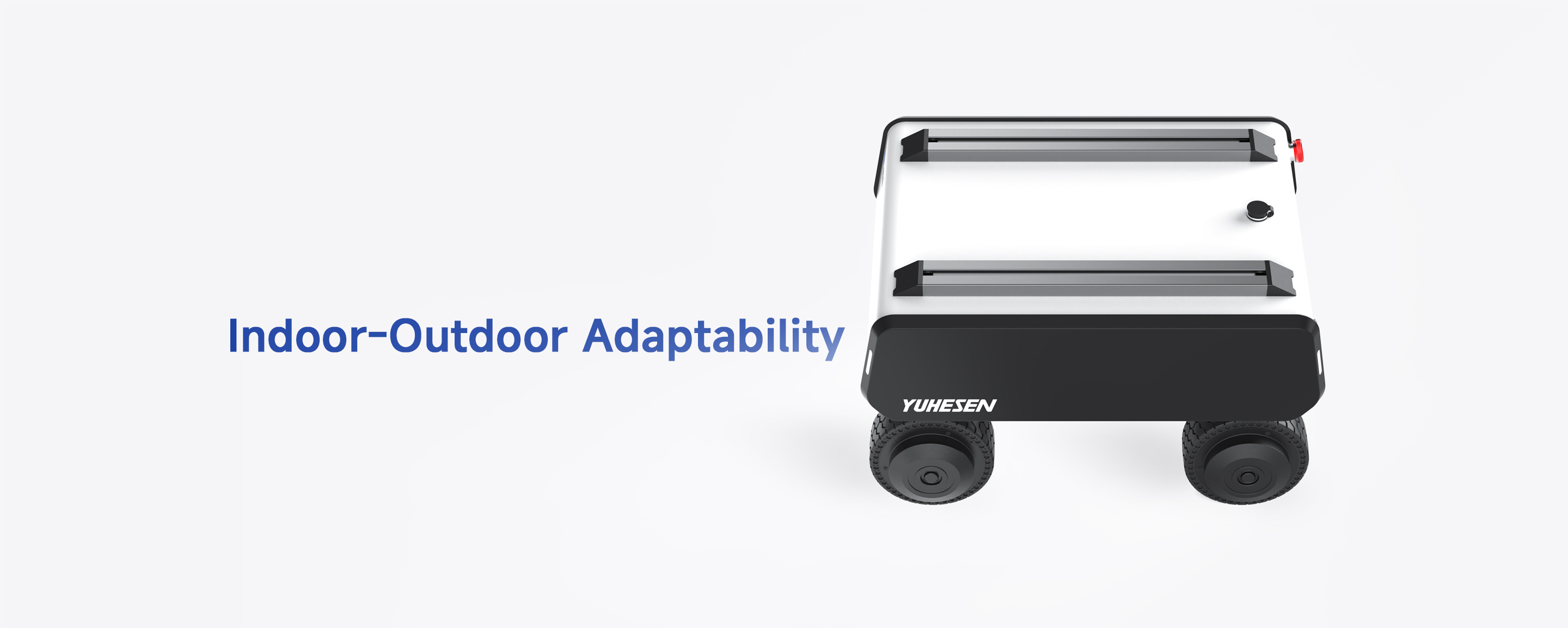

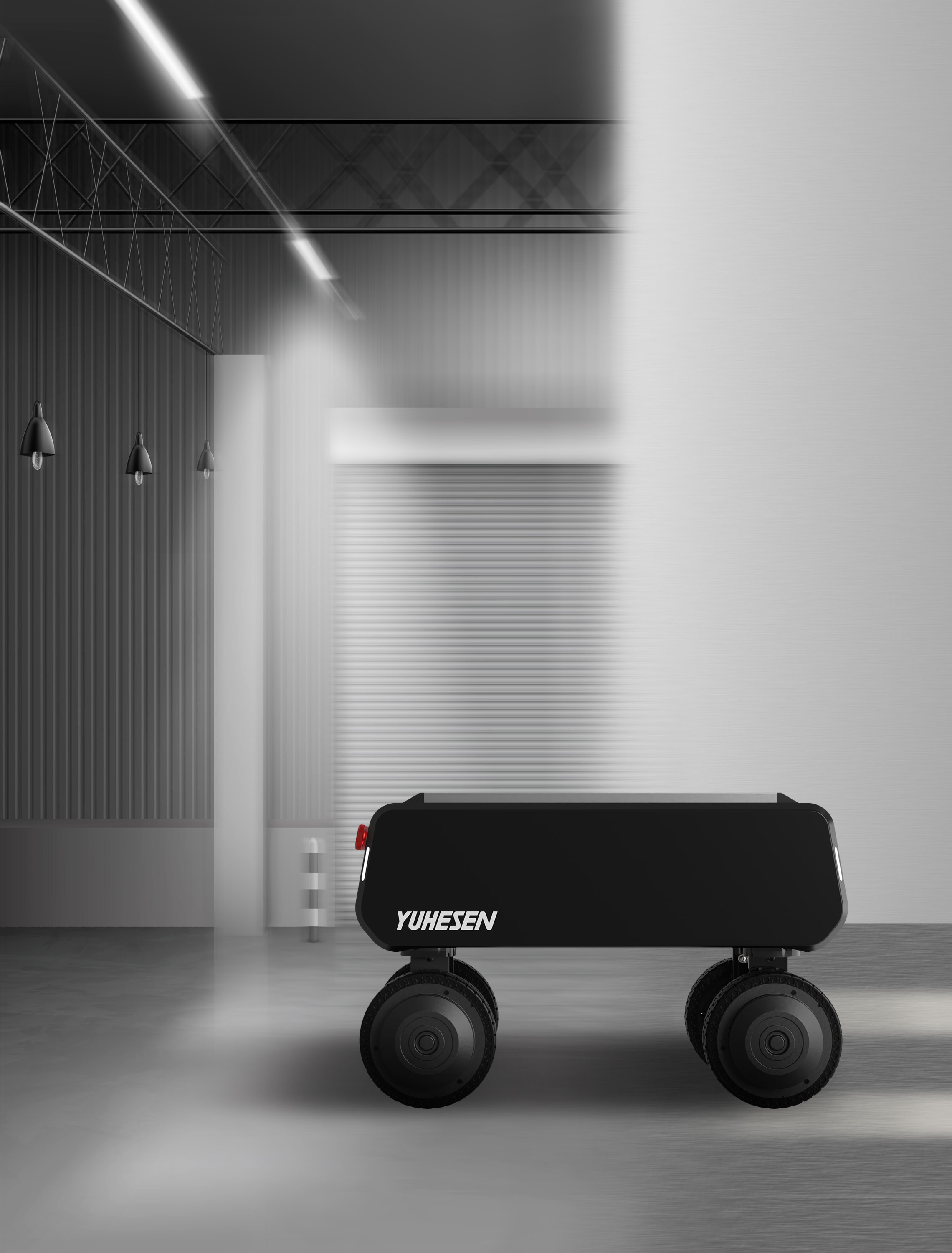

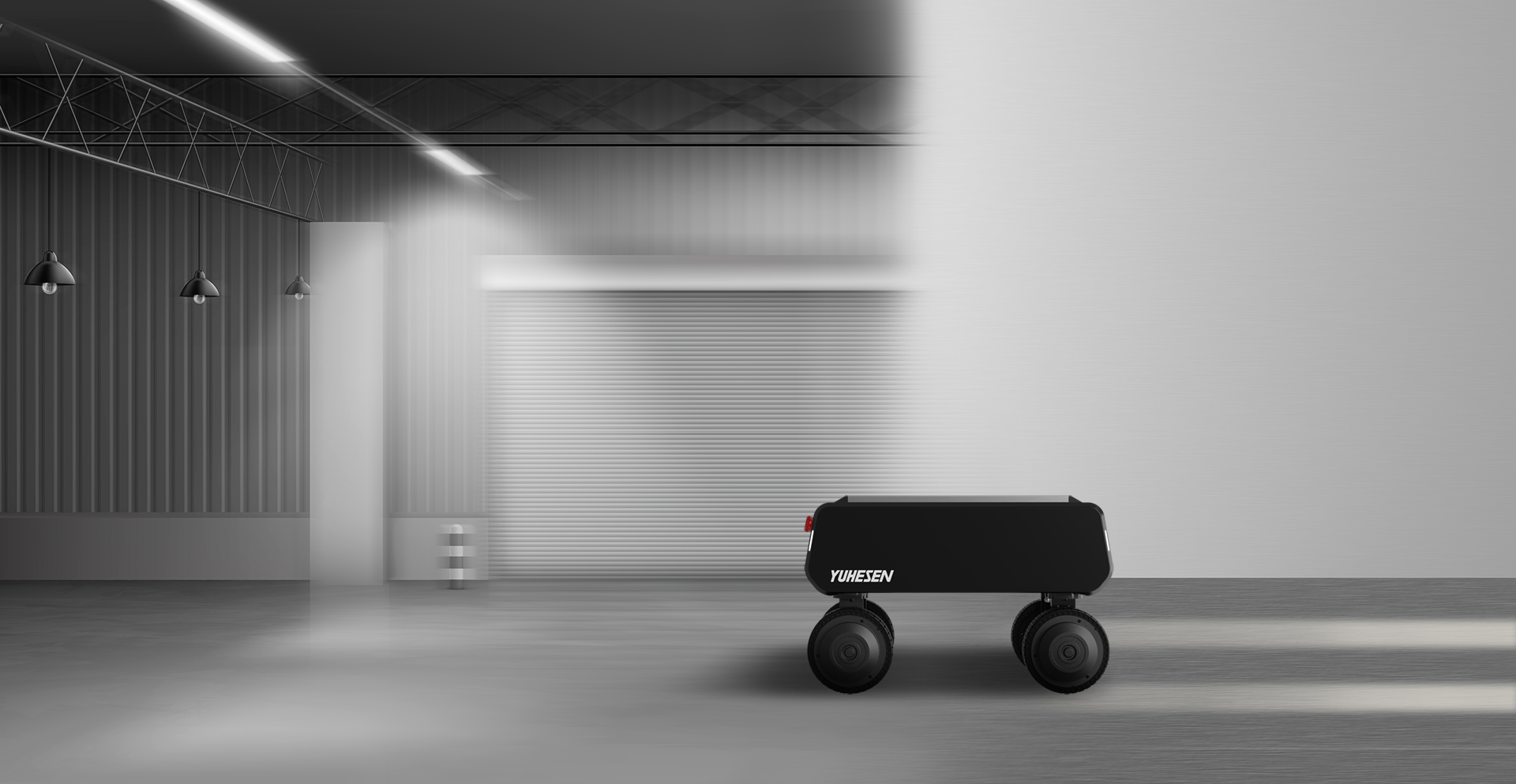

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

  • High-Precision Positioning Under Signal Degradation


    High-Precision Positioning Under Signal Degradation


  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-Industry Application Capability

  • Energy

    Energy

  • Manufacturing

    Manufacturing

  • Agriculture

    Agriculture

  • Healthcare

    Healthcare

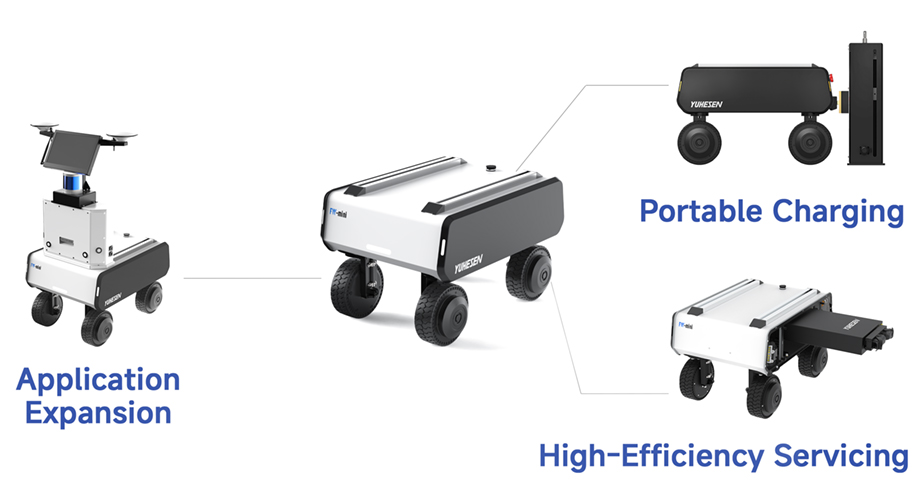

Supporting the integration of diverse modular applications.

We anticipate collaborating with you to explore the future of the industry.

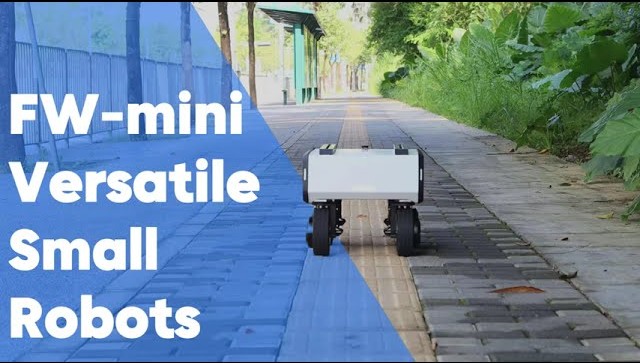

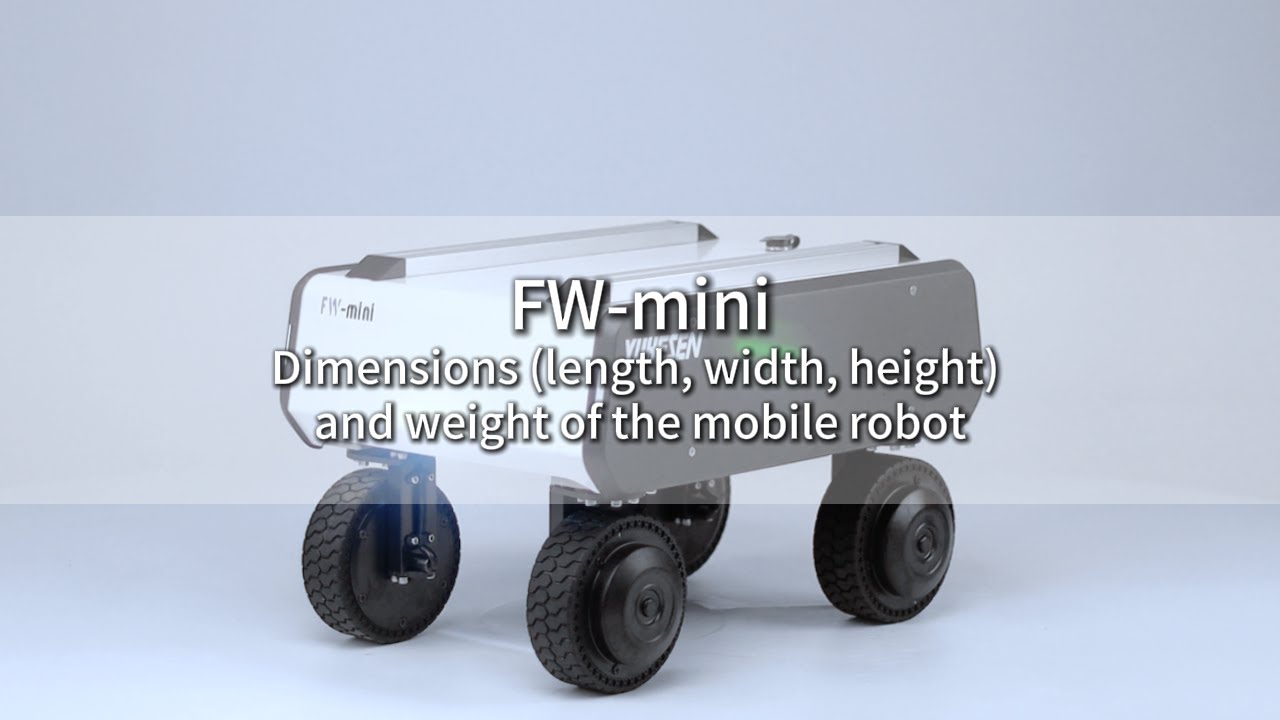

FW-mini

  • Size：495mm*360mm*320mm
  • Weight：32kg
  • Drive Form：Swerve Steering and Motor Drive
  • Suspension：/
  • Ground Clearance：170mm(chassis)
  • Wheelbase：350mm
  • Wheel Track：250mm
  • Tire Diameter：140mm
  • Wheel Hub Motor：100W*4
  • Battery：24V/20Ah
  • Charging Time：2-3h
  • Charging Adapter：24V/10A
  • Power Supply：12V/15A; 24V/10A
  • Braking Method：Motor Brake
  • Parking Method：Kinematic Parking
  • Payload(Level Ground)：30kg
  • Max Speed：3.6km/h
  • Wading Depth：50mm
  • Mileage：40km(unladen); 30km(laden)
  • Max Climbing Angle：30°(unladen); 15°(laden)
  • Span Width：110mm(unladen); 100mm(laden)
  • Obstacle Clearance Height：40mm(unladen); 40mm(laden)
  • IP Rating：IP55
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK) / STP files / User Manual / Online Technical Support
  • Configuration Notes：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.

FW-mini pro

  • Size：565mm*380mm*255mm
  • Weight：30kg
  • Drive Form：Swerve Steering and Motor Drive
  • Suspension：Independent Suspension
  • Ground Clearance：50mm(suspension); 70mm(chassis)
  • Wheelbase：360mm
  • Wheel Track：280mm
  • Tire Diameter：140mm
  • Wheel Hub Motor：100W*4
  • Battery：24V/20Ah
  • Charging Time：2-3h
  • Charging Adapter：24V/10A
  • Power Supply：12V/15A; 24V/10A
  • Braking Method：Motor Brake
  • Parking Method：Kinematic Parking
  • Payload(Level Ground)：40kg
  • Max Speed：5.4km/h
  • Wading Depth：50mm
  • Mileage：40km(unladen); 20km(laden)
  • Max Climbing Angle：30°(unladen); 10°(laden)
  • Span Width：110mm(unladen); 100mm(laden)
  • Obstacle Clearance Height：40mm(unladen); 40mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK) / STP files / User Manual / Online Technical Support
  • Configuration Notes：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
