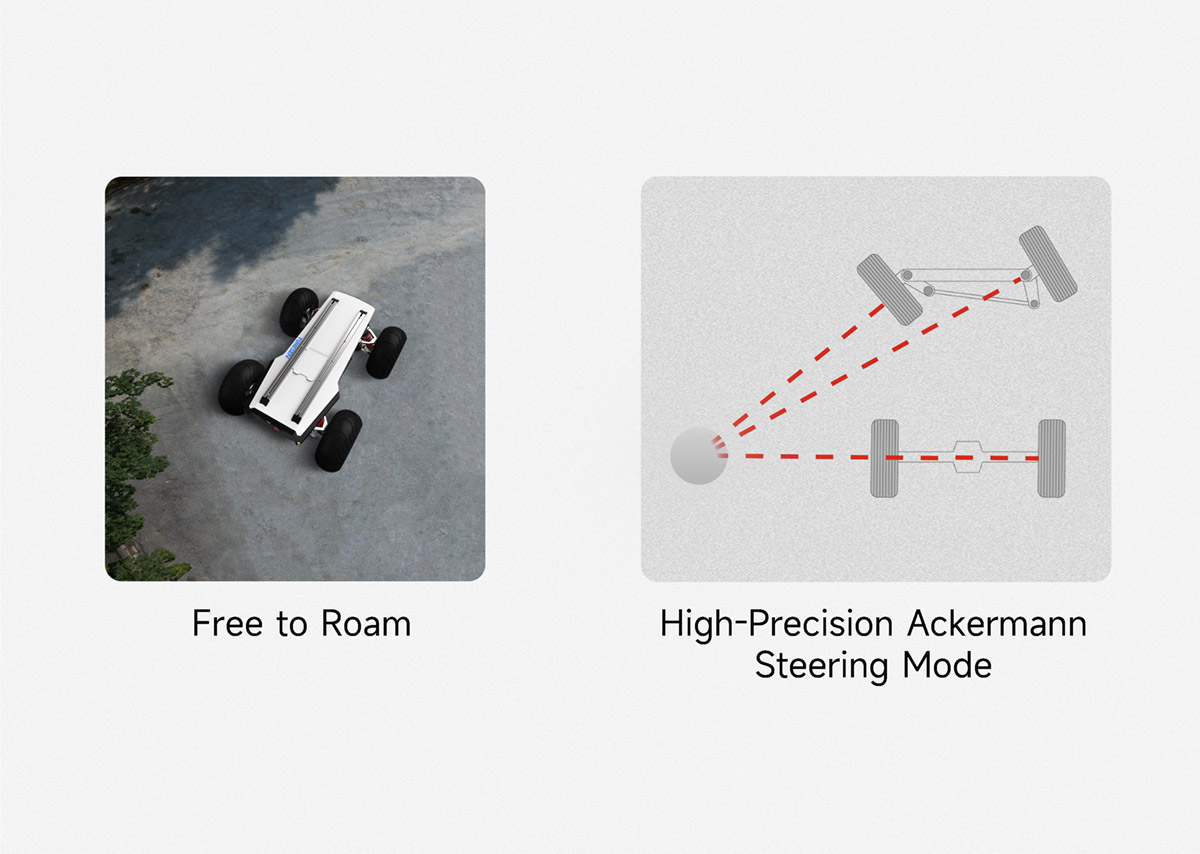

All-Scenario Ackermann Steering

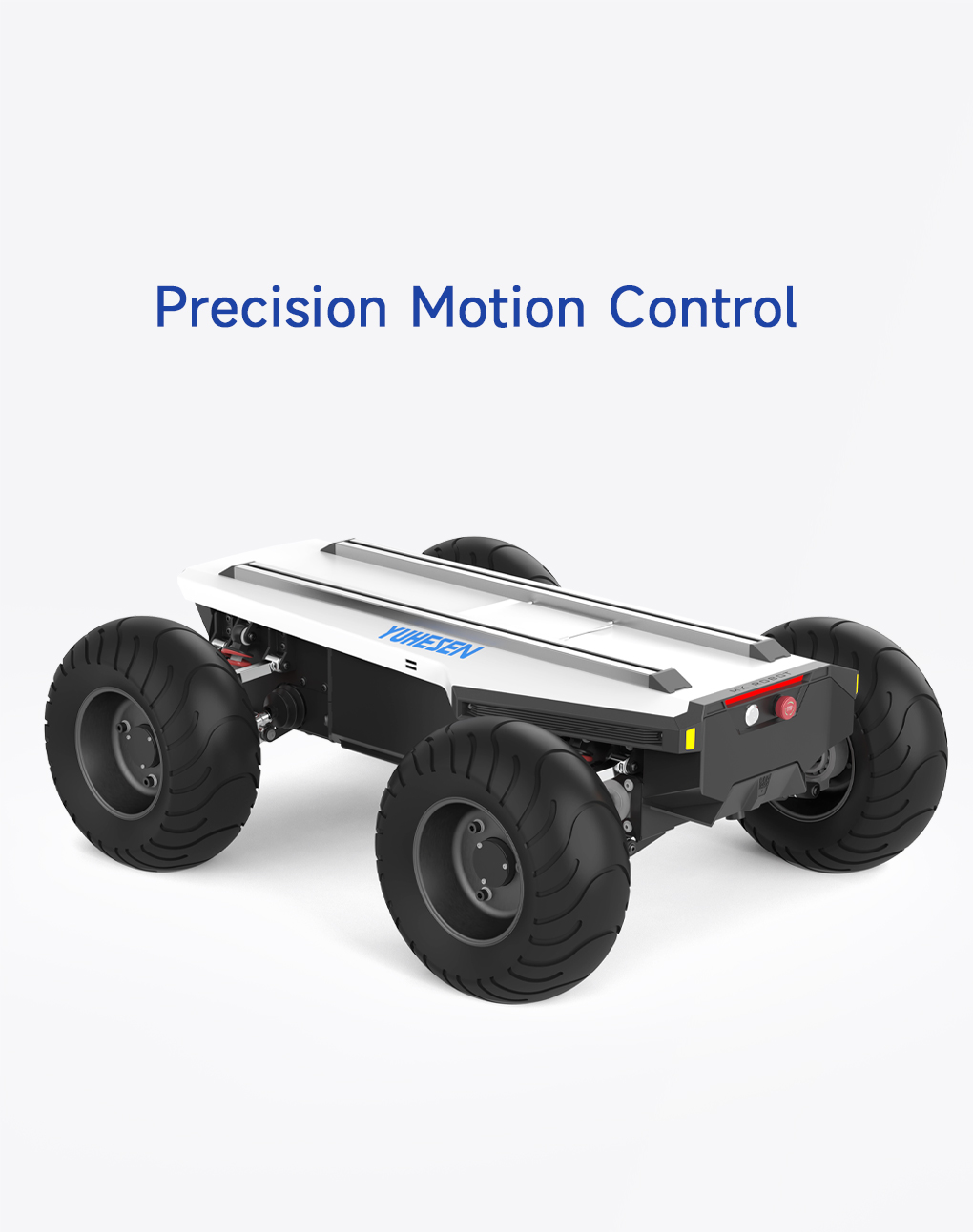

The chassis adopts an all-terrain independent suspension design with excellent shock absorption performance. Combined with millimeter-level motion control precision, it delivers smoother and more responsive dynamic performance.


Preemptive Planning Drive Algorithm

The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across Ackermann steering mode.

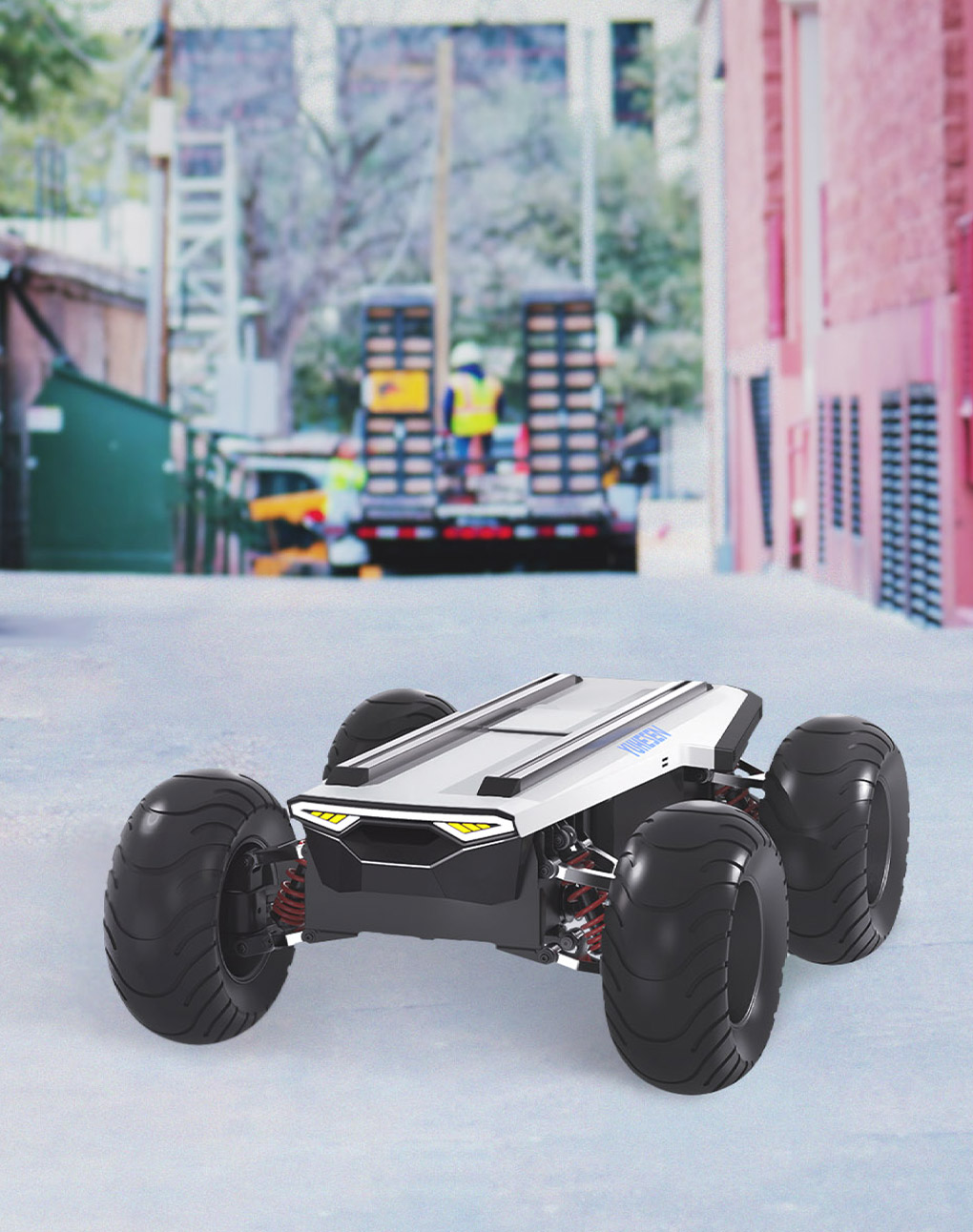

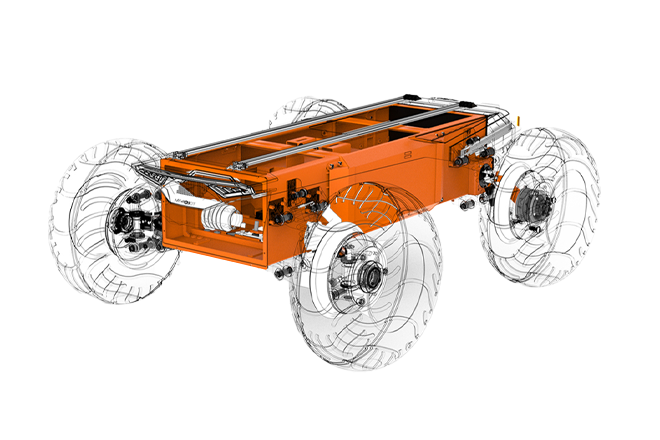

High-Strength Lightweight All-Terrain UGVs

Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.

  • Obstacle Clearance Height：90mm(unladen)/50mm(laden)

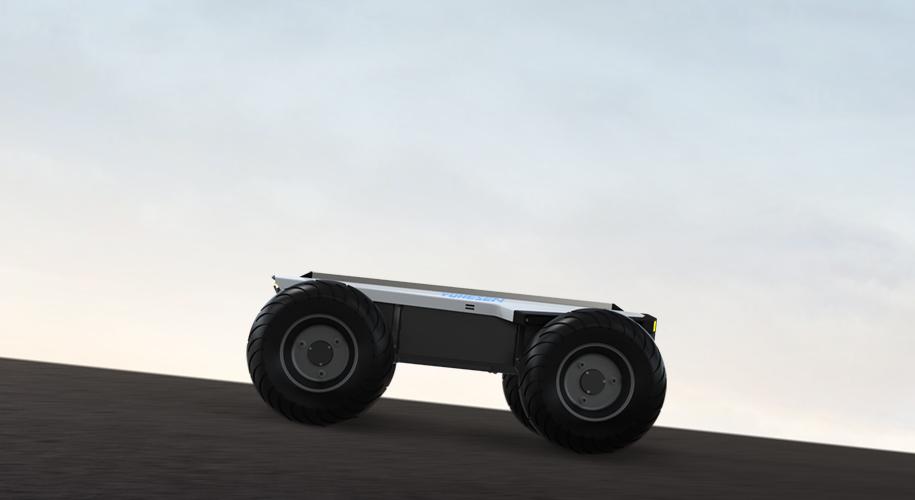

  • Max Climbing Angle：20°(unladen)/10°(laden)
  • Max Speed：9.7km/h
  • Braking Method：Motor Brake
  • IP Rating：IP42
  • Payload：80kg

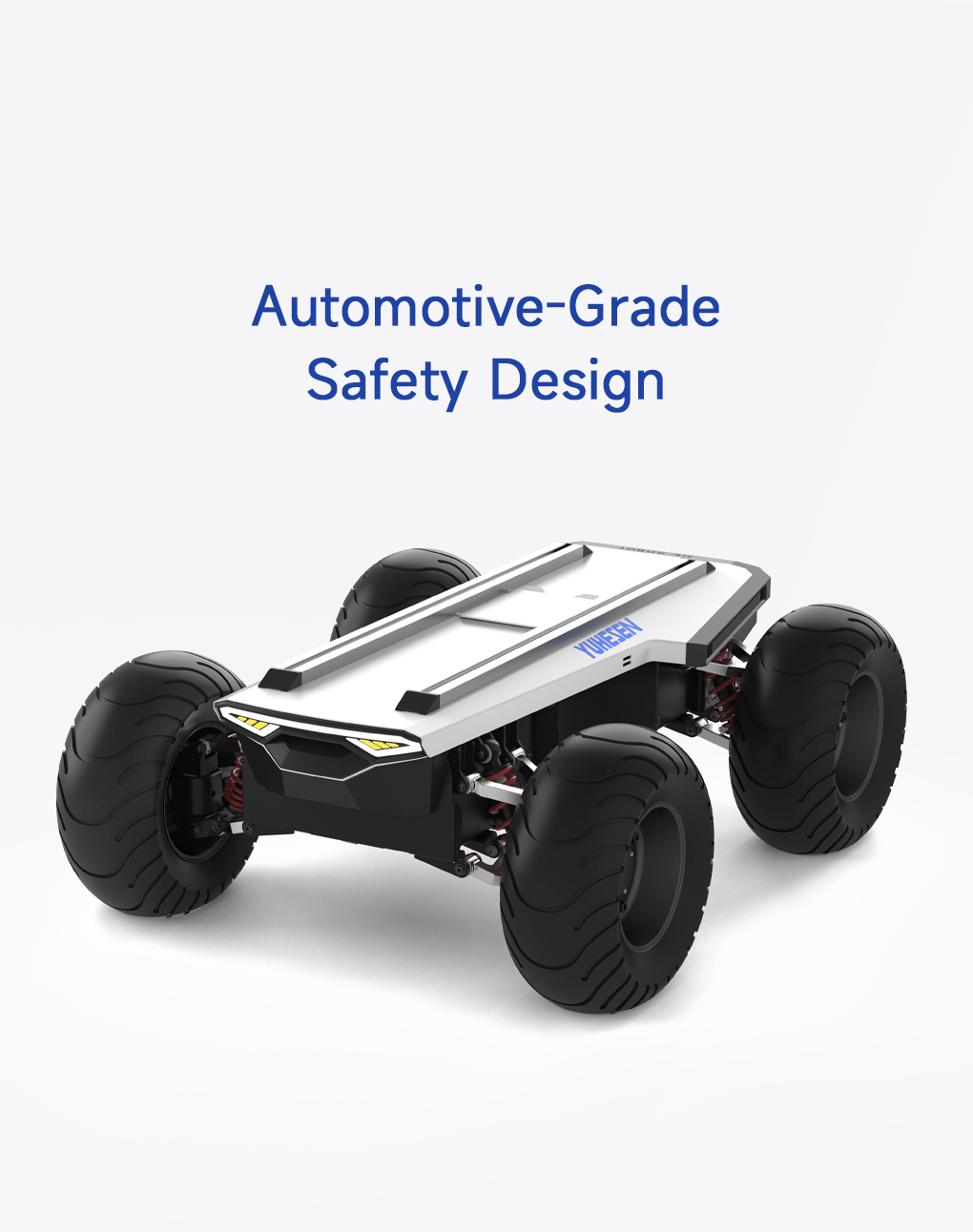

Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.

  • 1.png

    Application Safety

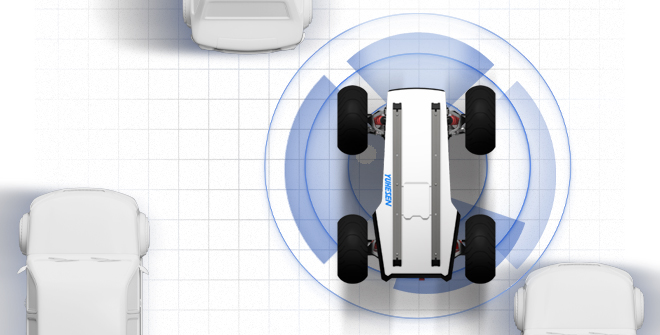

    Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

  • 1.png

    Operational Safety

    Combine electronic differential control with flexible motion management to deliver both stability and agility, enabling more reliable performance across industry applications.

  • 1.png

    Electrical Safety

    Adopt automotive-grade battery protection designs to withstand harsh environments, improve durability, and support effective application development.

  • 6c1d9688e726771a87fc3bc971e8275b.png

    Control Safety

    Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.

No record
No record

Multi-Scenario Operating Capability

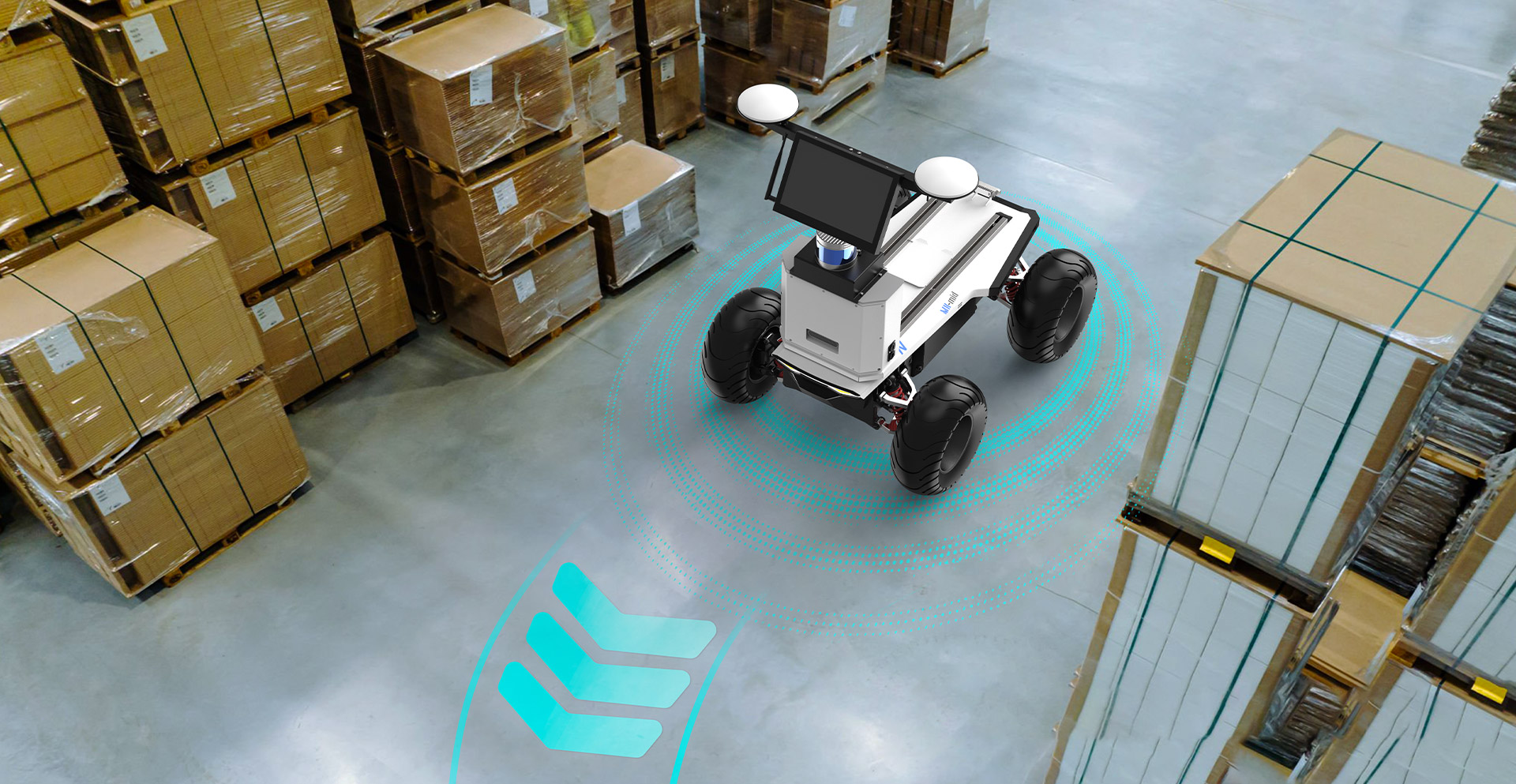

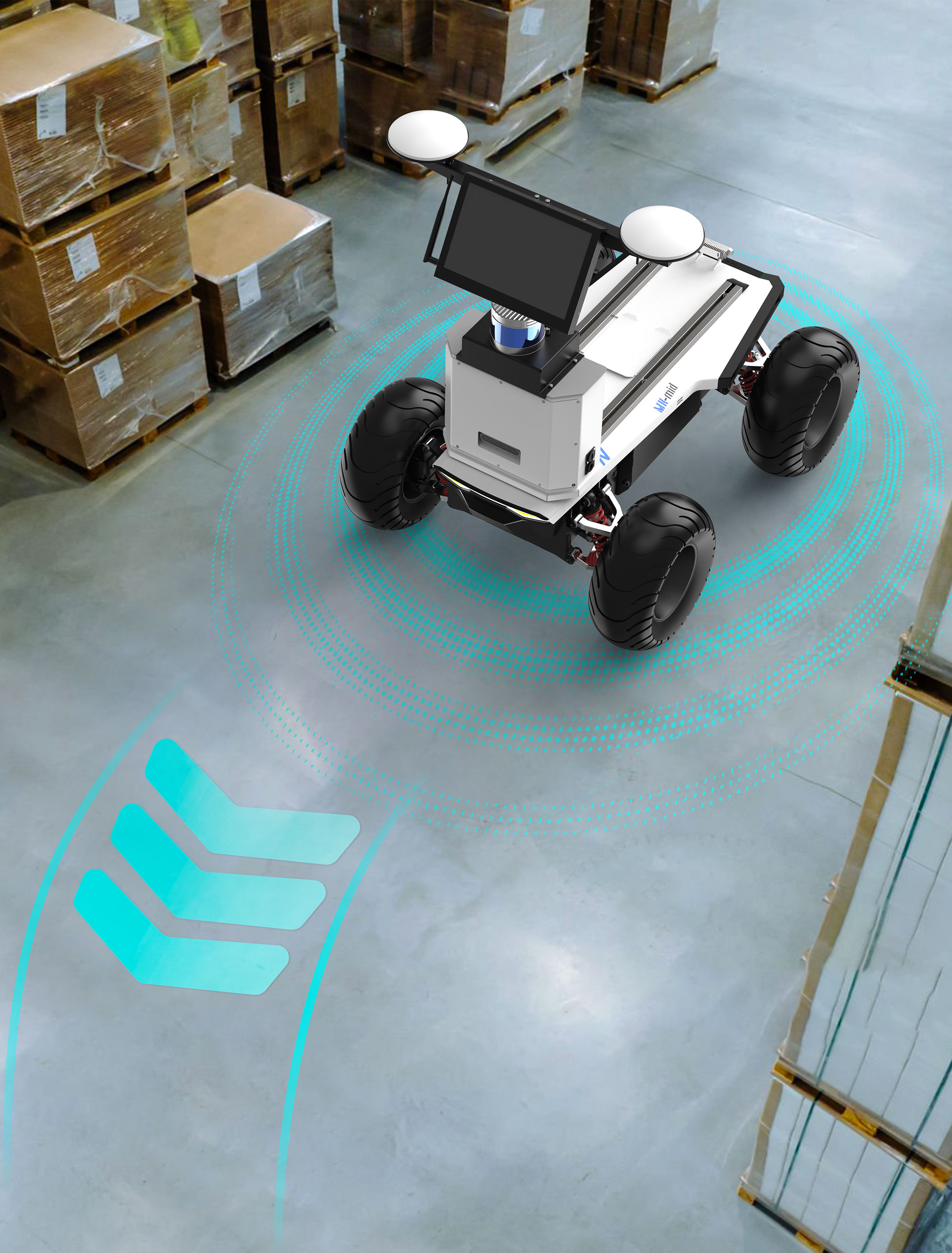

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

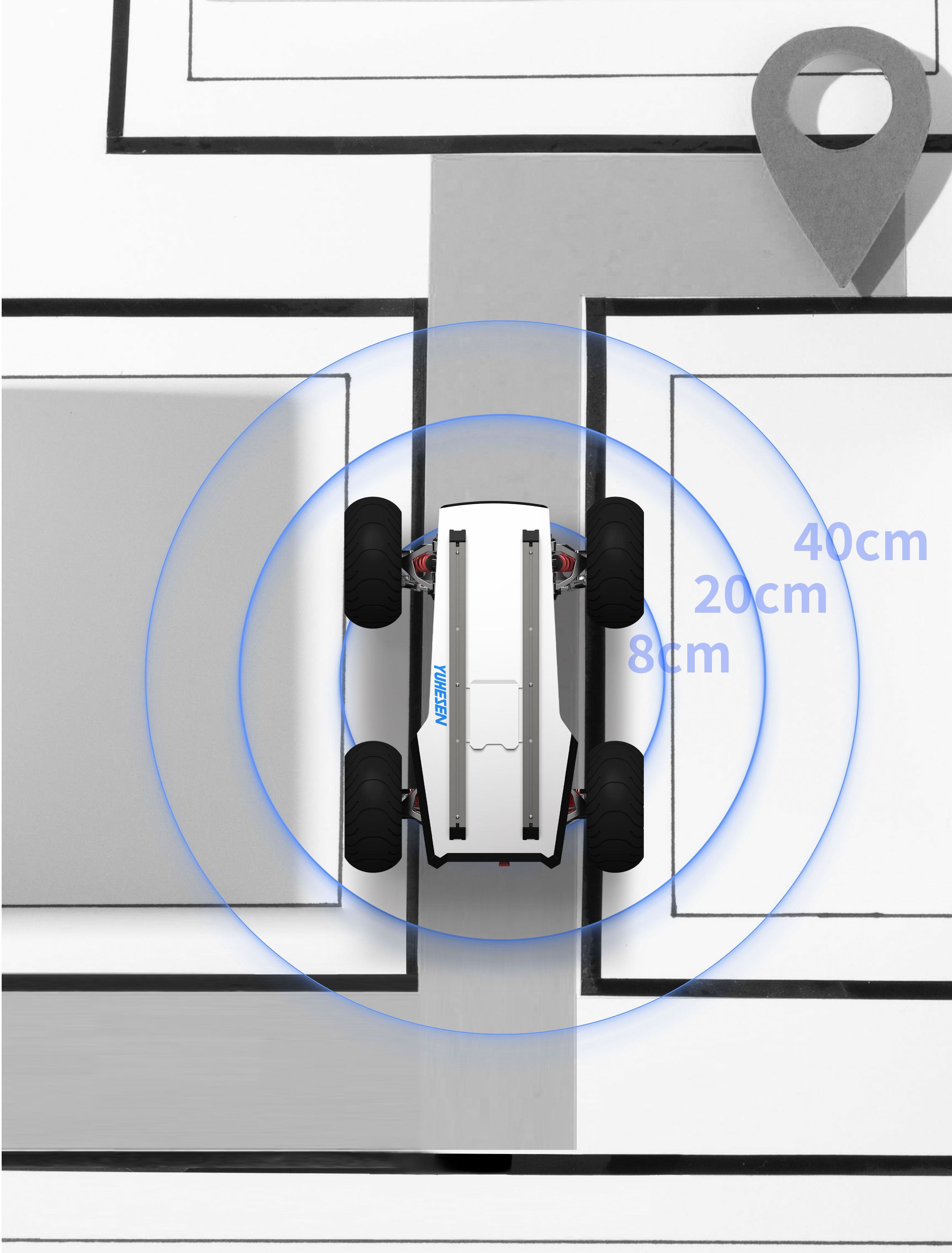

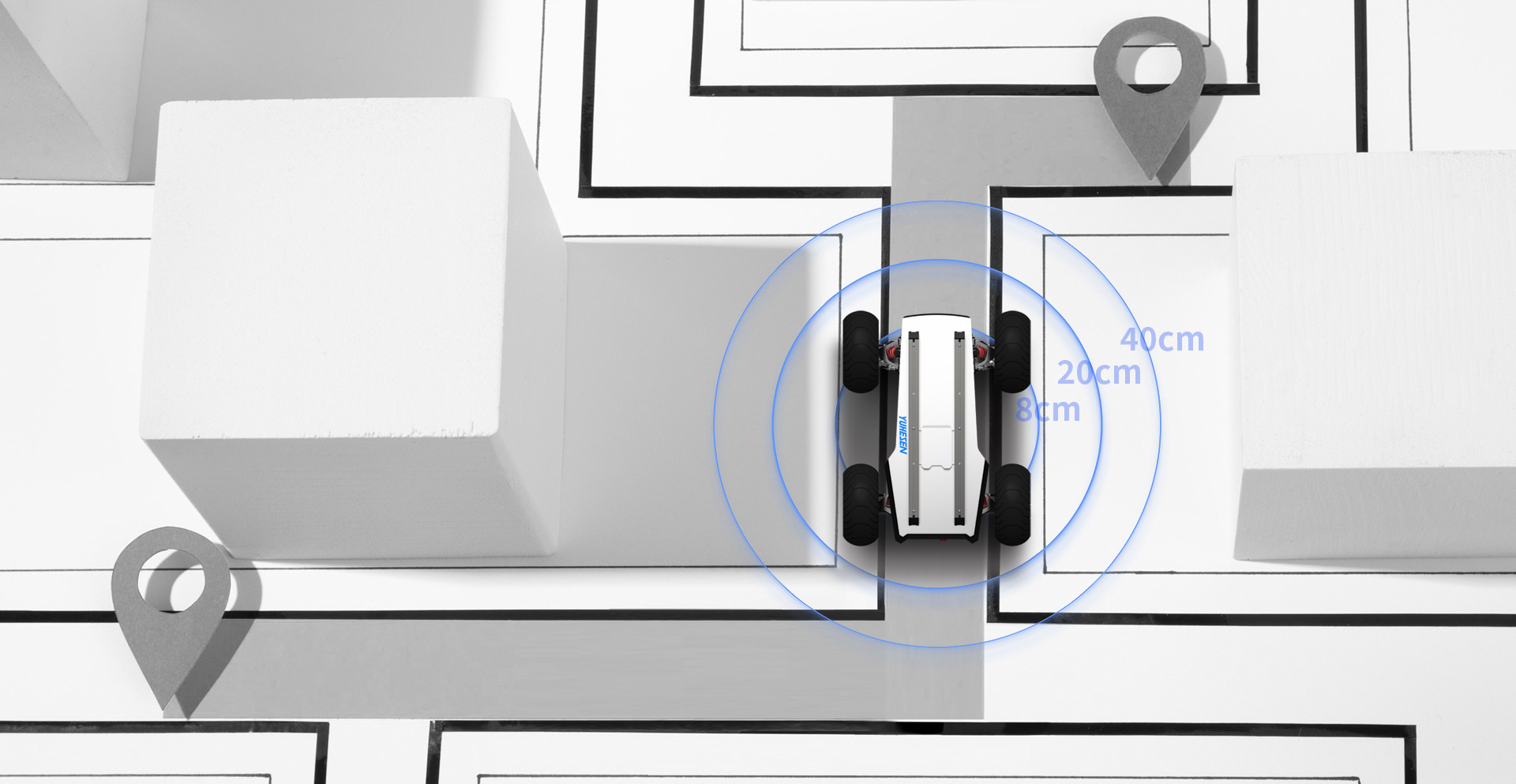

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

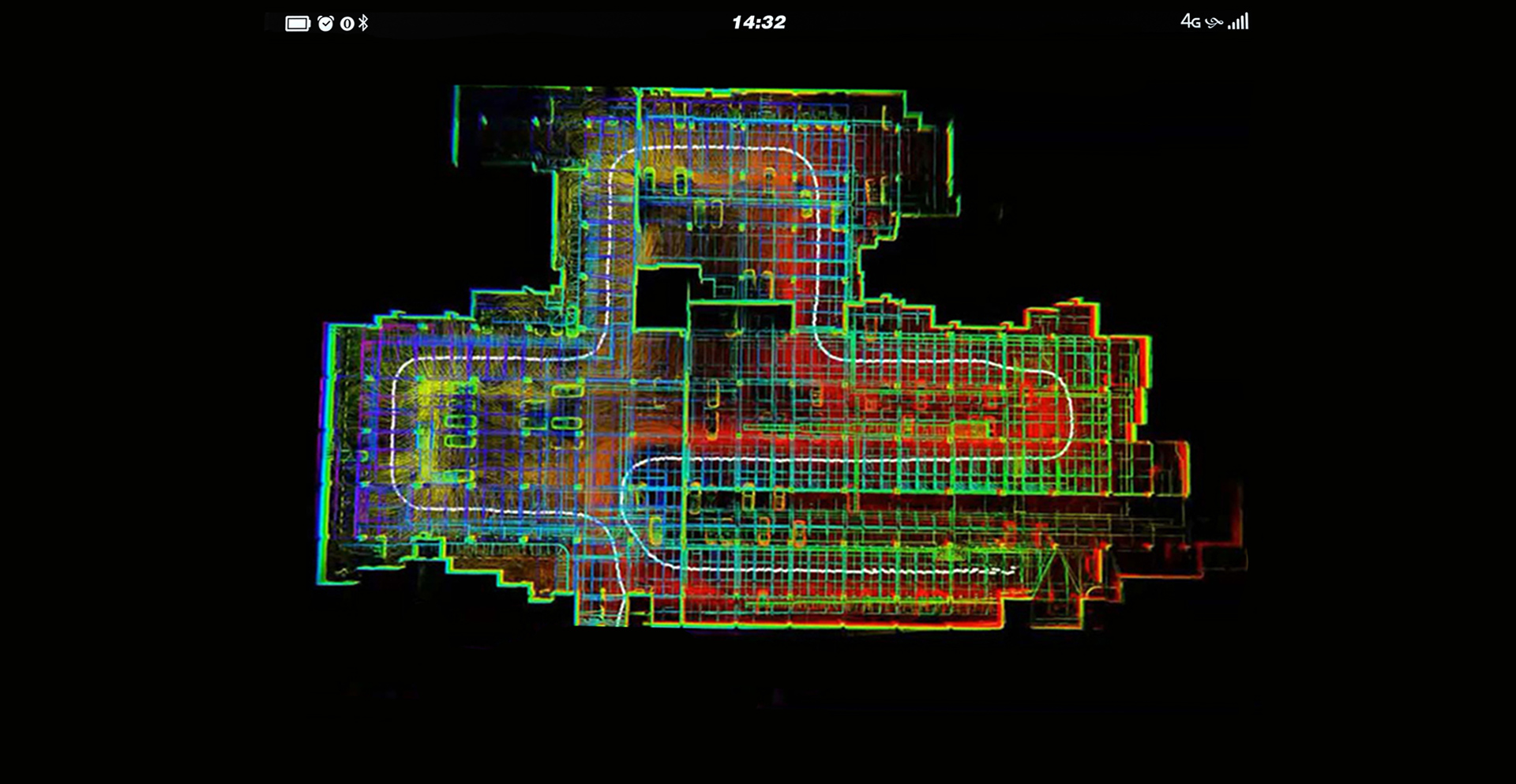

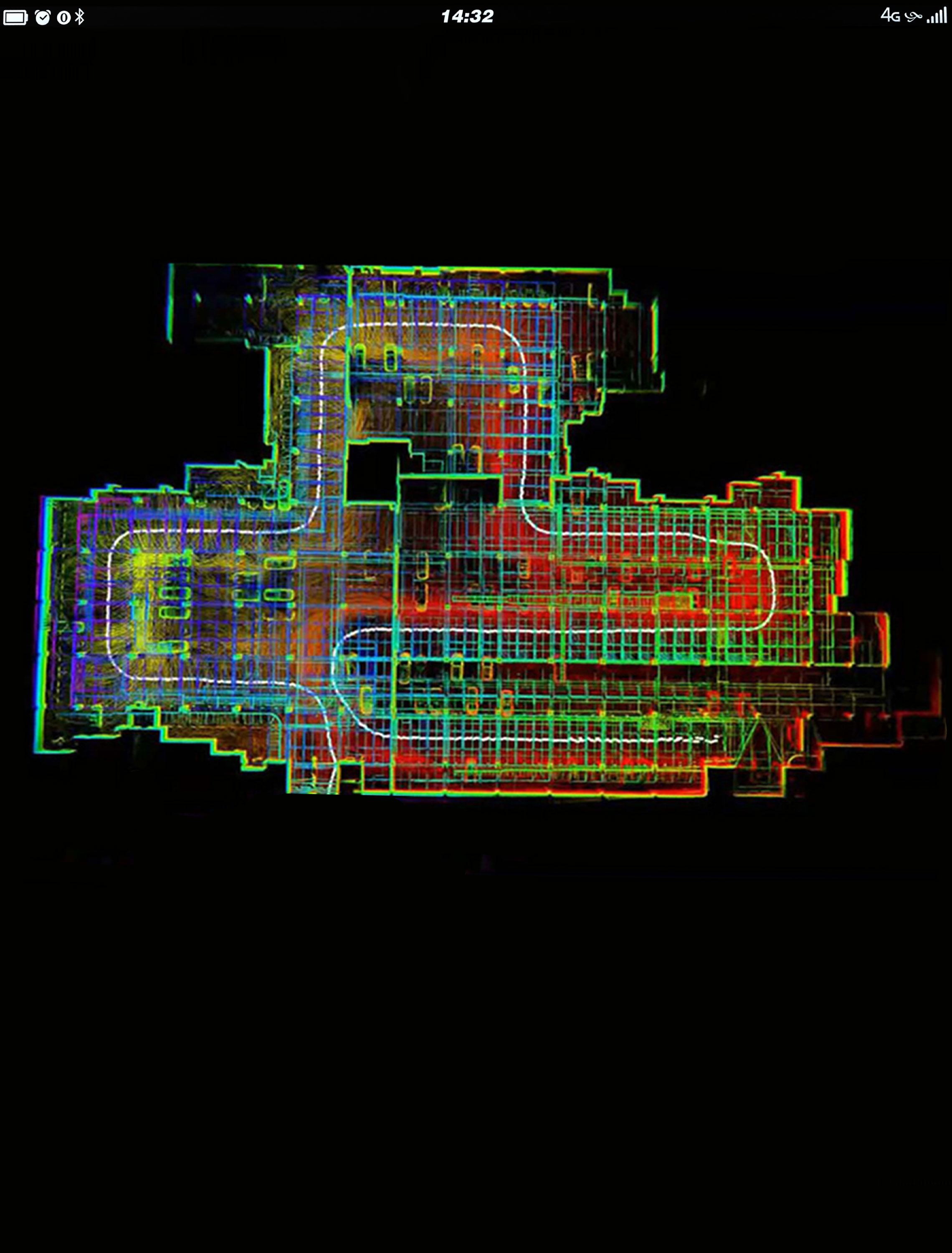

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

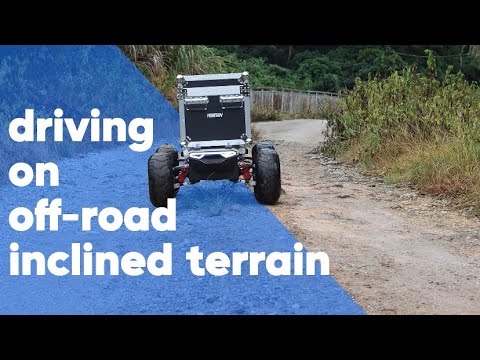

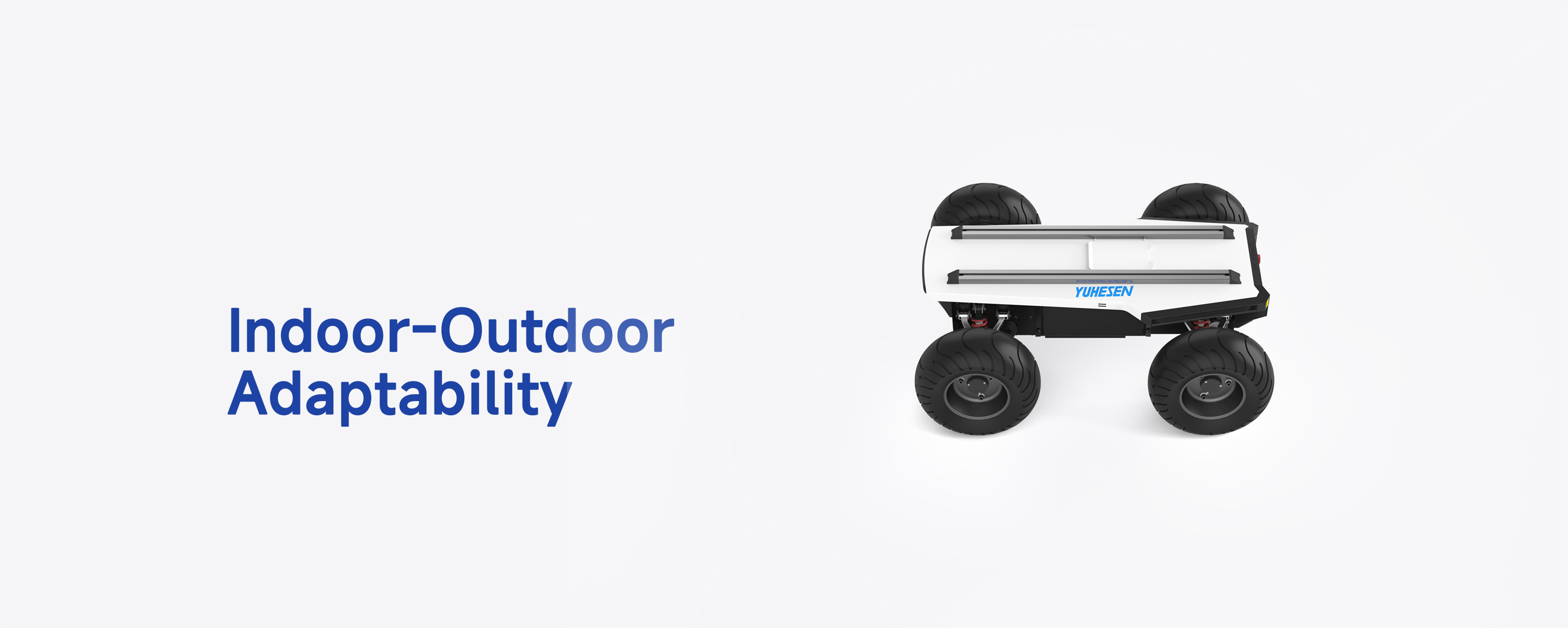

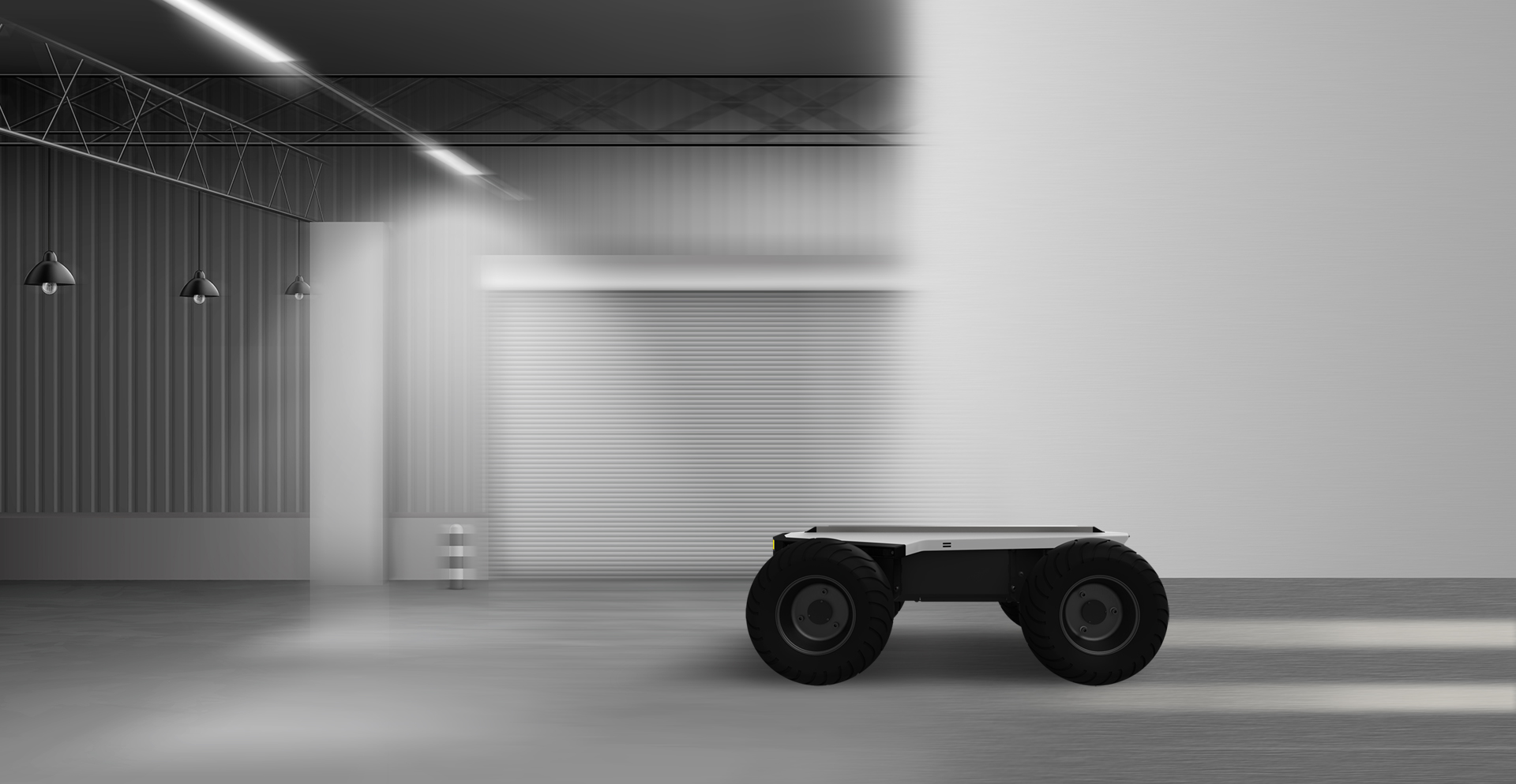

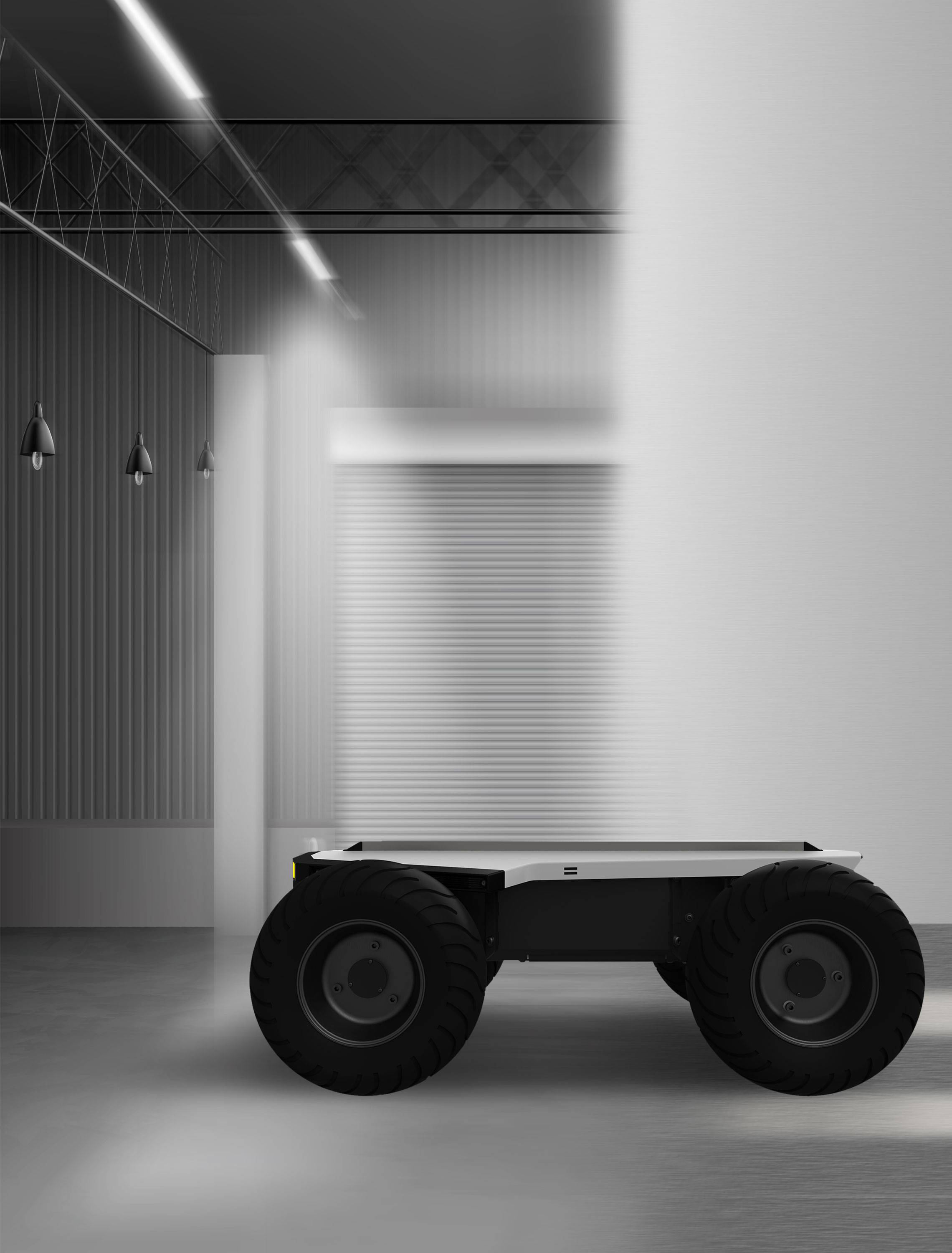

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-Industry Application Capability

  • Energy

    Energy

  • Manufacturing

    Manufacturing

  • Agriculture

    Agriculture

  • Healthcare

    Healthcare

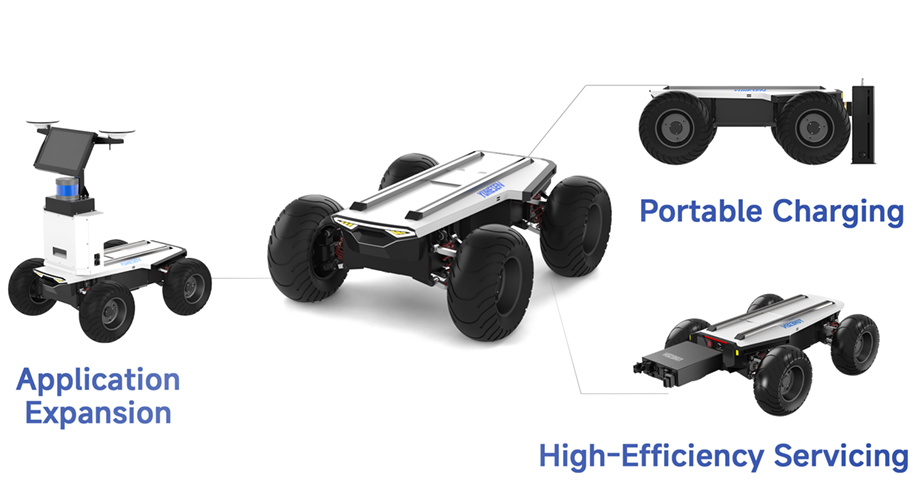

Supporting the integration of diverse modular applications.

We anticipate collaborating with you to explore the future of the industry.

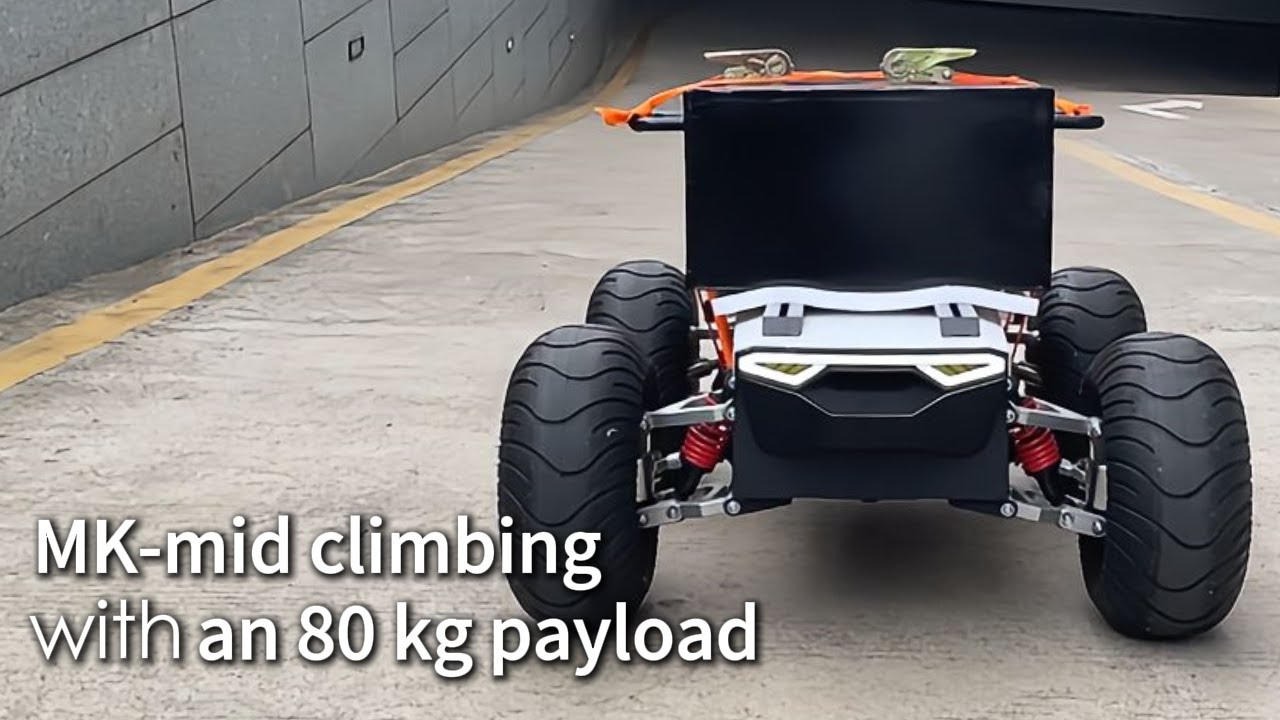

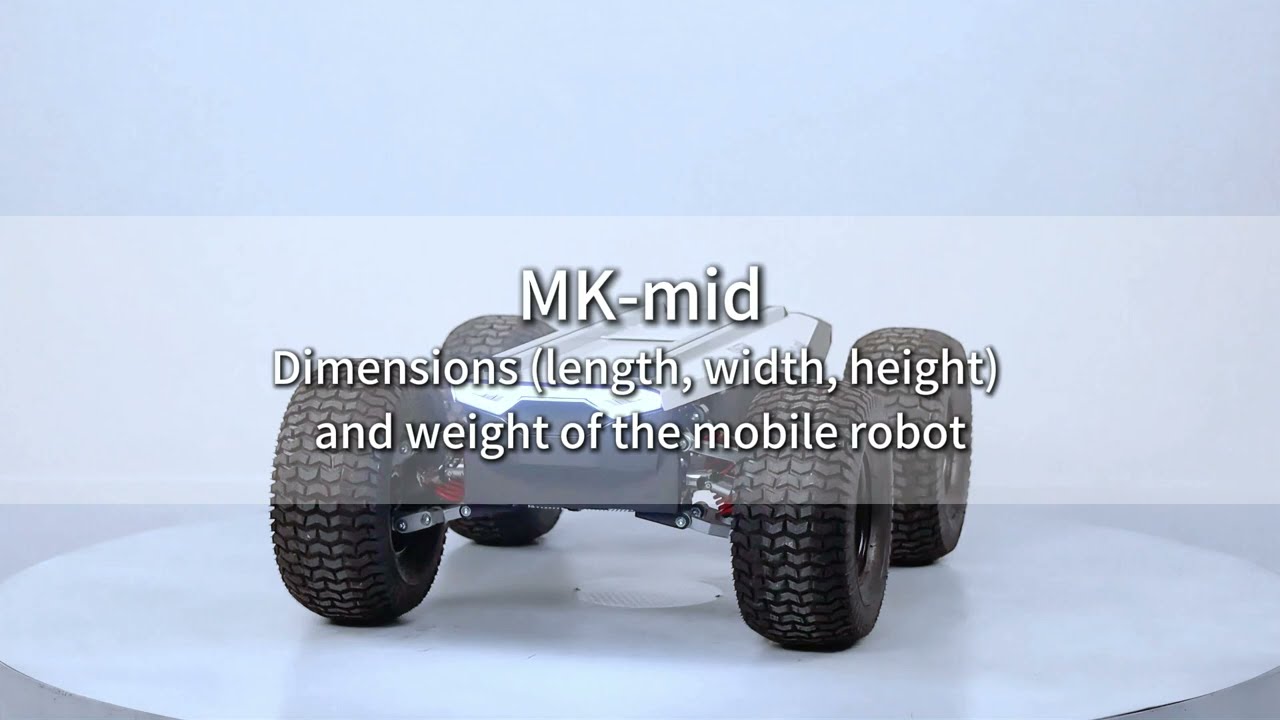

MK-mid

  • Size：920mm*740mm*350mm
  • Weight：71kg
  • Drive Form：Front Ackermann steering, rear motor drive
  • Suspension：Independent Suspension
  • Ground Clearance：150mm
  • Wheelbase：600mm
  • Wheel Track：600mm
  • Tire Diameter：324mm
  • Wheel Hub Motor：400W*2
  • Battery：48V/18Ah
  • Charging Time：2-3h
  • Charging Adapter：48V/10A
  • Power Supply：12V/15A; 24V/15A; 48V/10A
  • Braking Method：Motor Brake
  • Parking Method：Electromagnetic power-off parking
  • Payload(Level Ground)：80kg
  • Max Speed：9.7km/h
  • Wading Depth：120mm
  • Mileage：35km(unladen); 25km(laden)
  • Max Climbing Angle：20°(unladen); 10°(laden)
  • Span Width：230mm(unladen); 180mm(laden)
  • Obstacle Height：90mm(unladen); 50mm(laden)
  • IP Rating：IP42
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
  • Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.

MK-mini

  • Size：900mm*600mm*310mm
  • Weight：55kg
  • Drive Form：Front Ackermann steering, rear motor drive
  • Suspension：Independent Suspension
  • Ground Clearance：93mm
  • Wheelbase：600mm
  • Wheel Track：518mm
  • Tire Diameter：240mm
  • Wheel Hub Motor：350W*2
  • Battery：48V/20Ah(standard)
    48V/40Ah(optional)
  • Charging Time：2-3h
  • Charging Adapter：48V/10A
  • Power Supply：12V/15A; 24V/15A; 48V/10A
  • Braking Method：Motor Brake
  • Parking Method：Motor Parking
  • Payload(Level Ground)：50kg
  • Max Speed：9.7km/h
  • Wading Depth：100mm
  • Mileage：60km(unladen); 40km(laden)
  • Max Climbing Angle：20°(unladen); 10°(laden)
  • Span Width：160mm(unladen); 140mm(laden)
  • Obstacle Clearance Height：50mm(unladen); 50mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/OS-mate kit/OS-lite kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
  • Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
