Modular Ackermann Platform

Equipped with automotive-grade Ackermann steering system and modular expansion design, the chassis enables low speed autonomous driving development with 100kg load capacity.

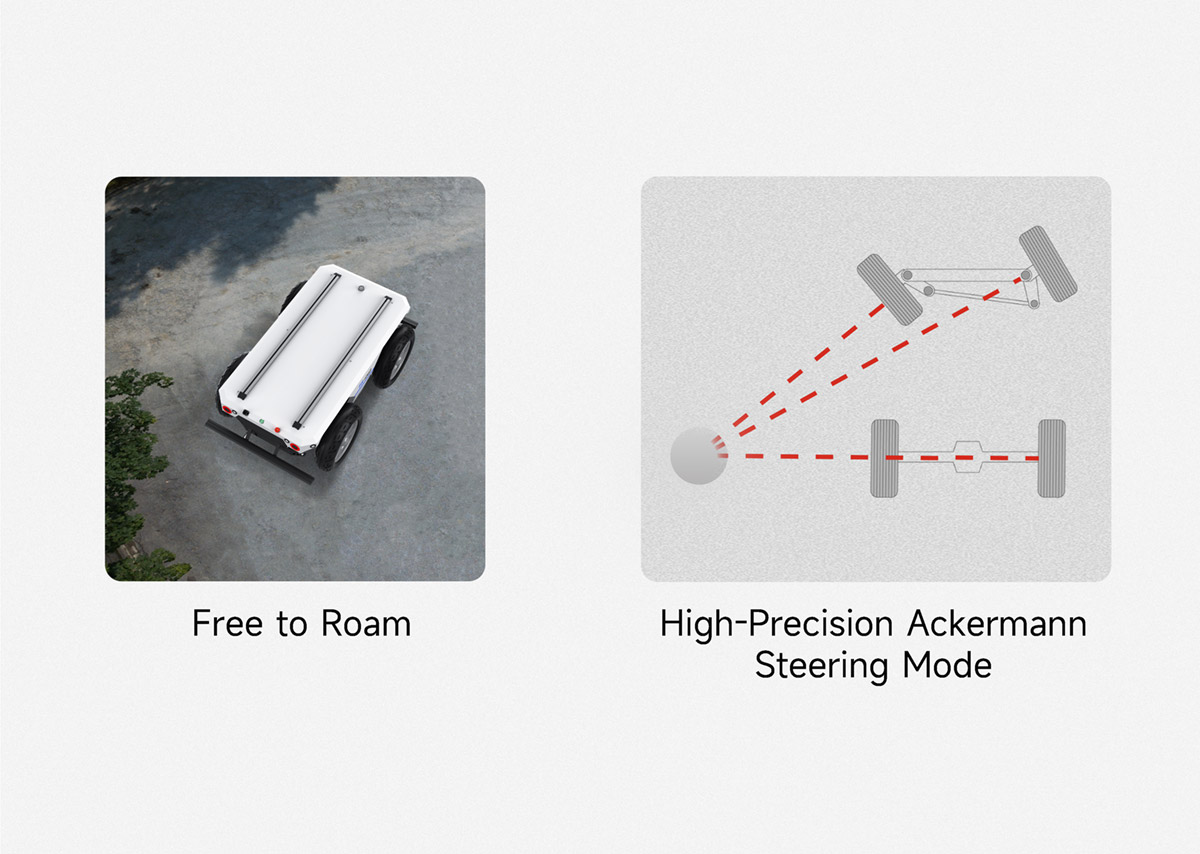

Preemptive Planning Drive Algorithm

The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across Ackermann steering mode.

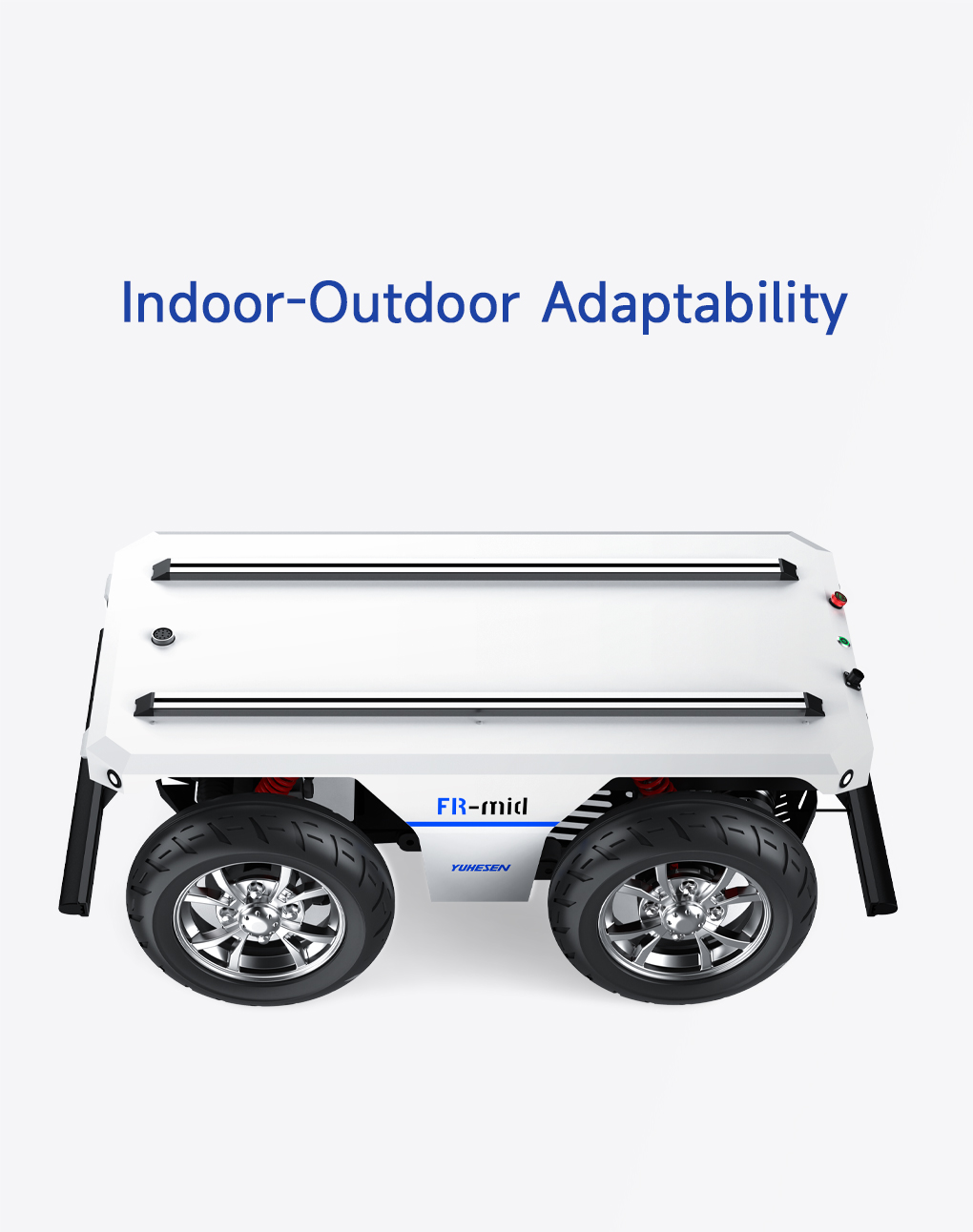

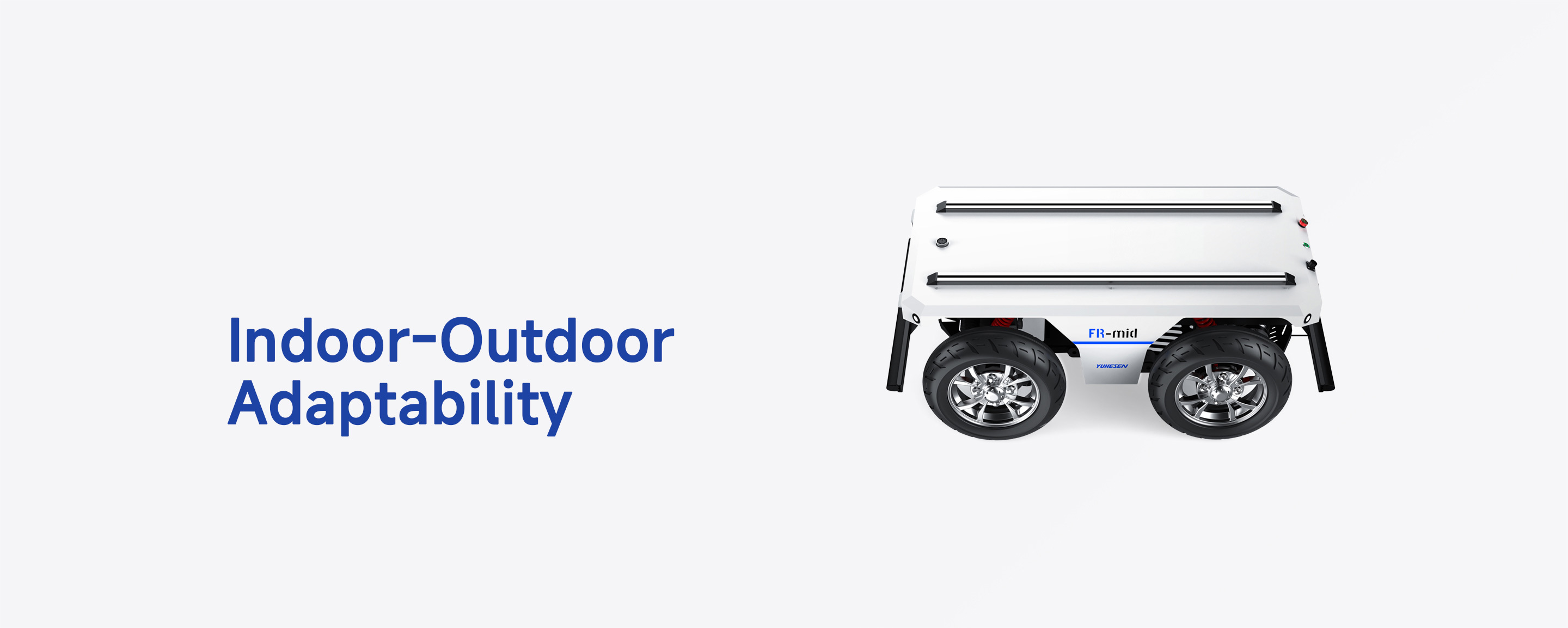

Versatile Ackermann UGV

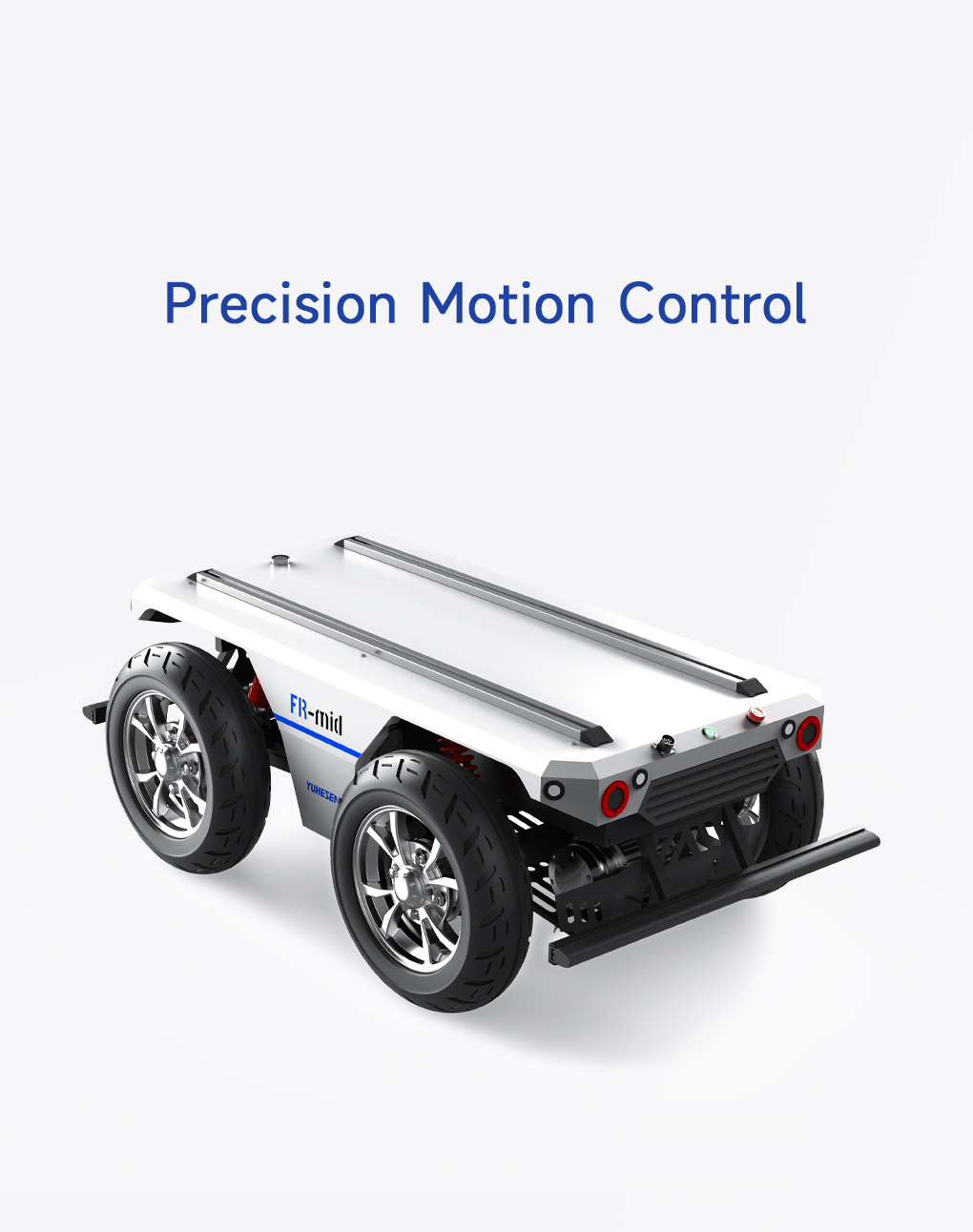

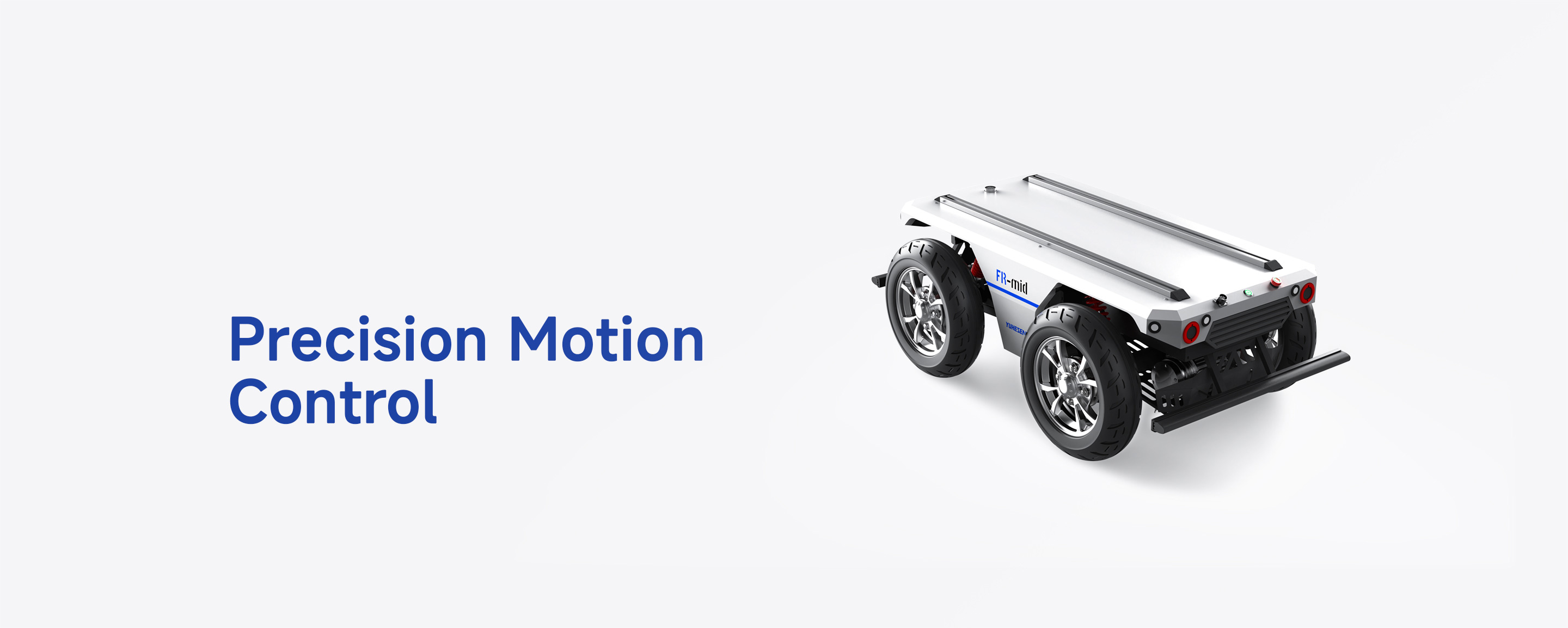

Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.

  • Obstacle Clearance Height：90mm(unladen)/60mm(laden)

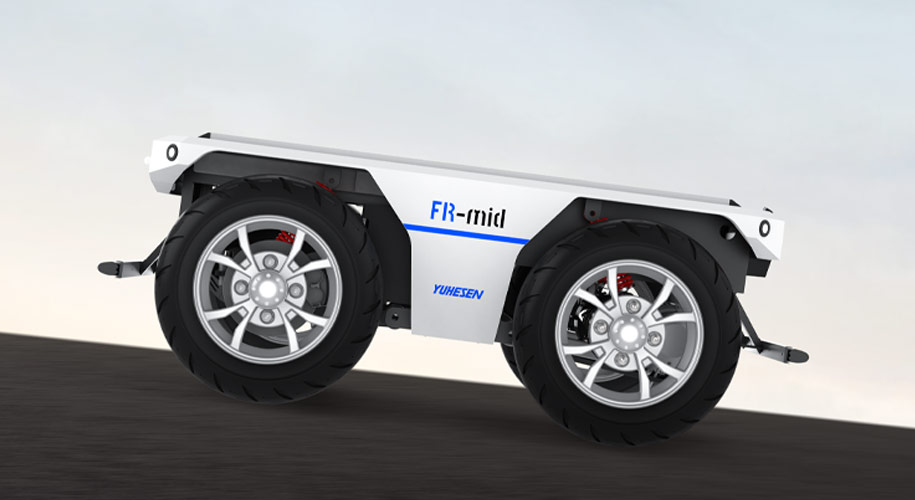

  • Max Climbing Angle：20(unladen)/10°(laden)
  • Max Speed：8km/h
  • Braking Method：Motor Brake
  • IP Rating：IP44
  • Payload：100kg

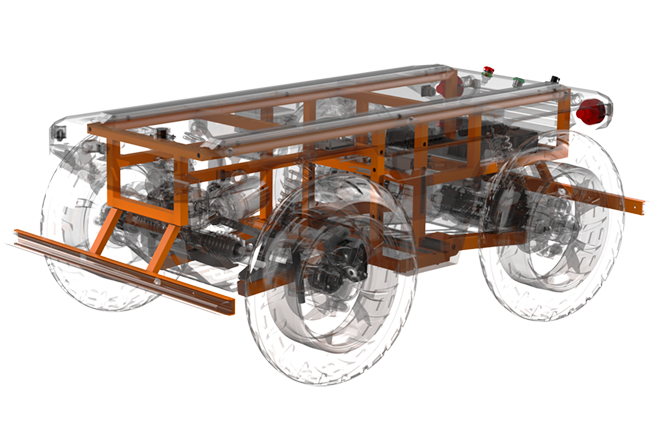

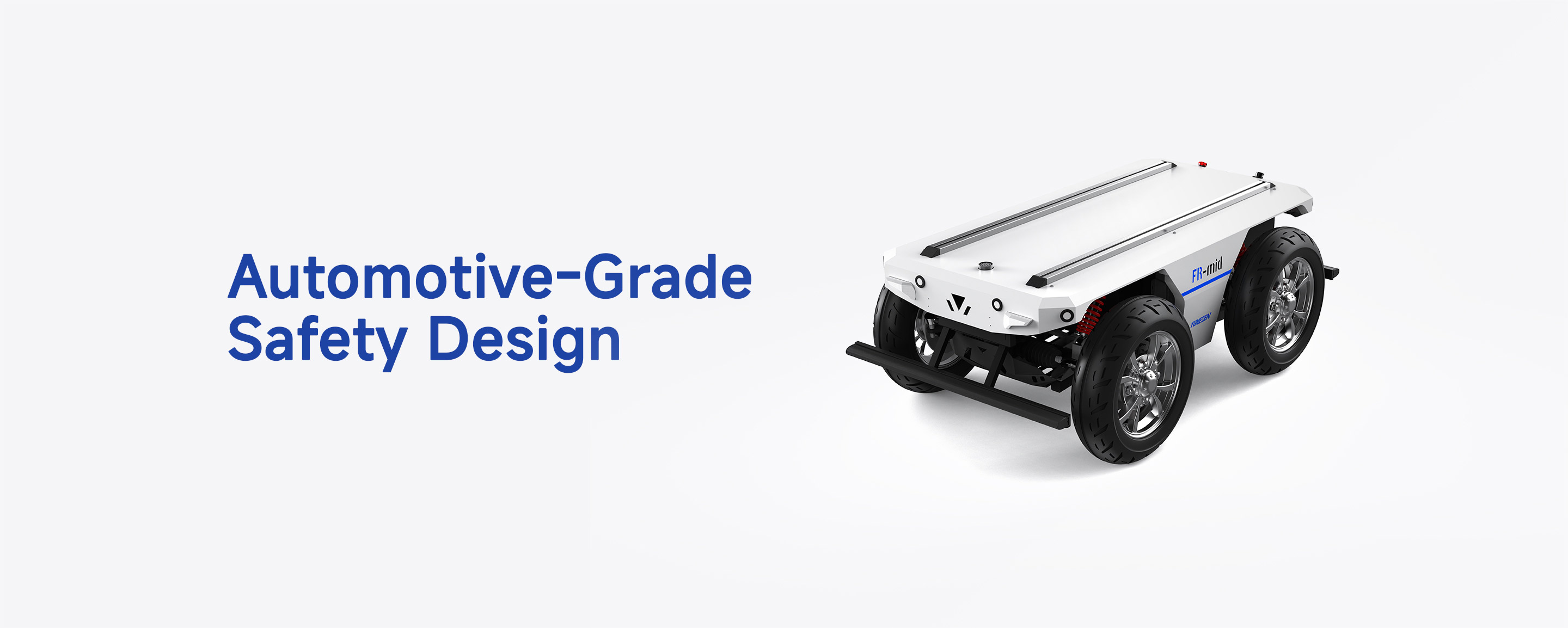

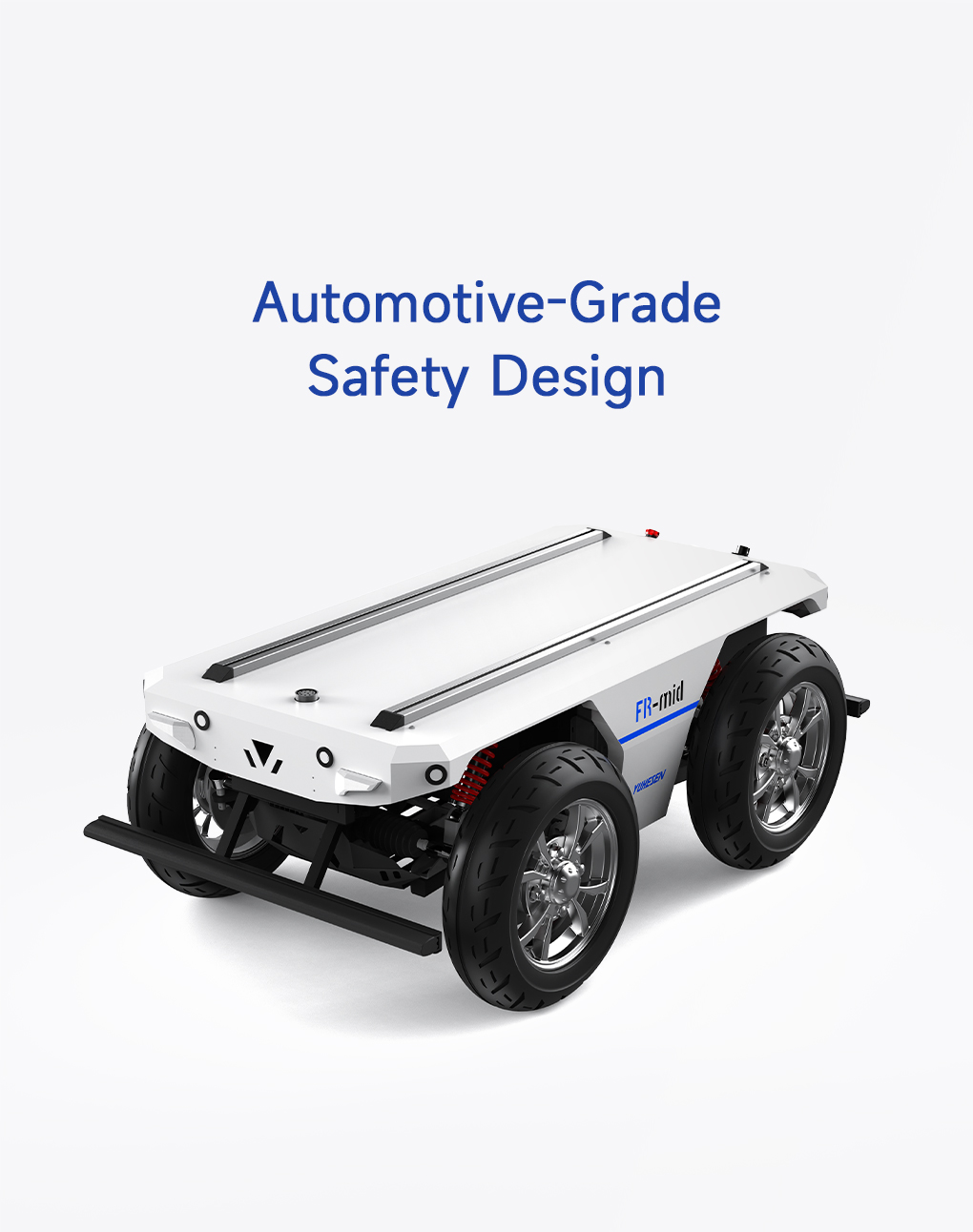

Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.

  • 1.png

    Application Safety

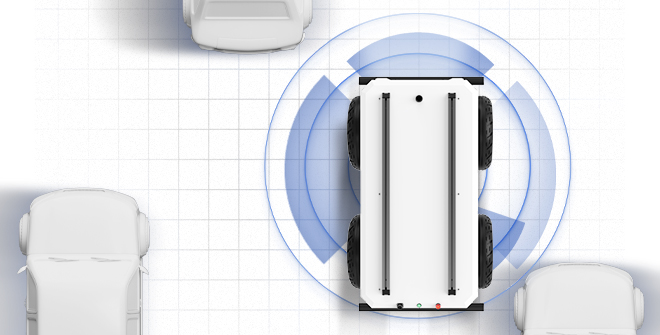

    Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

  • 1.png

    Operational Safety

    Integrates electronic braking with flexible control to deliver dual advantages of stability and agility.

  • 1.png

    Electrical Safety

    Automotive-grade EC-BOX enhances electrical stability and anti-interference capability in complex environments.

  • 1.png

    Control Safety

    Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.

No record
No record

Multi-Scenario Operating Capability

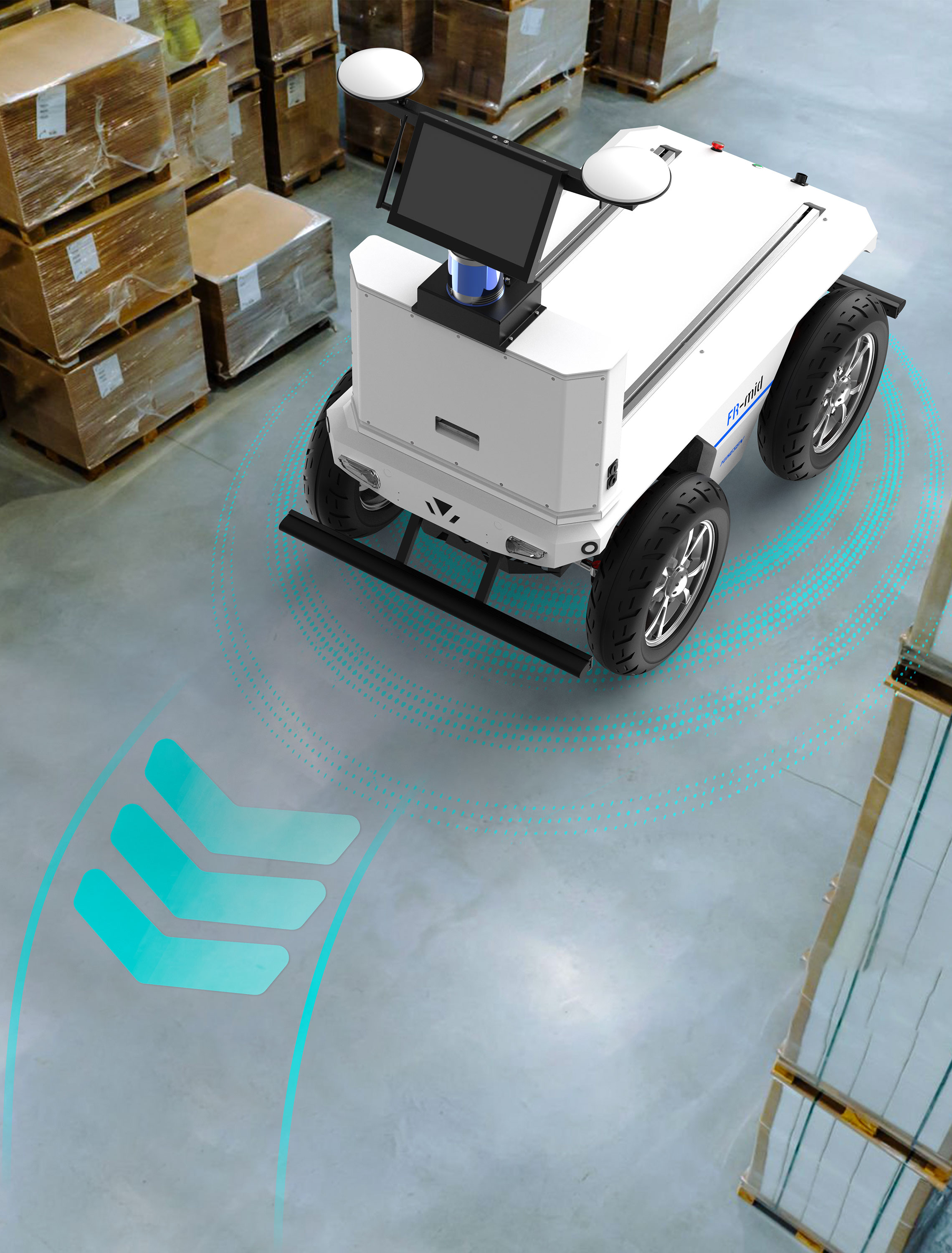

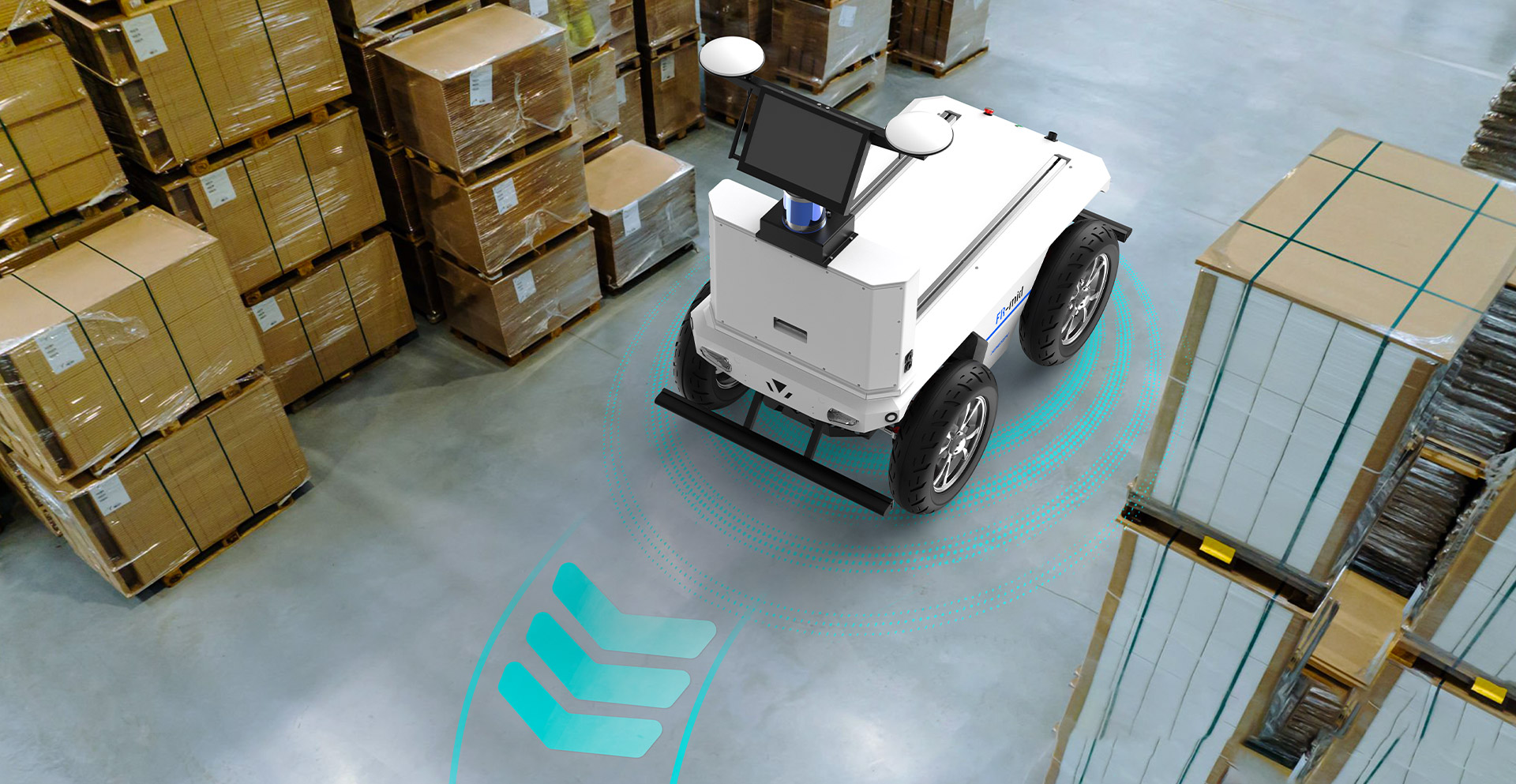

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

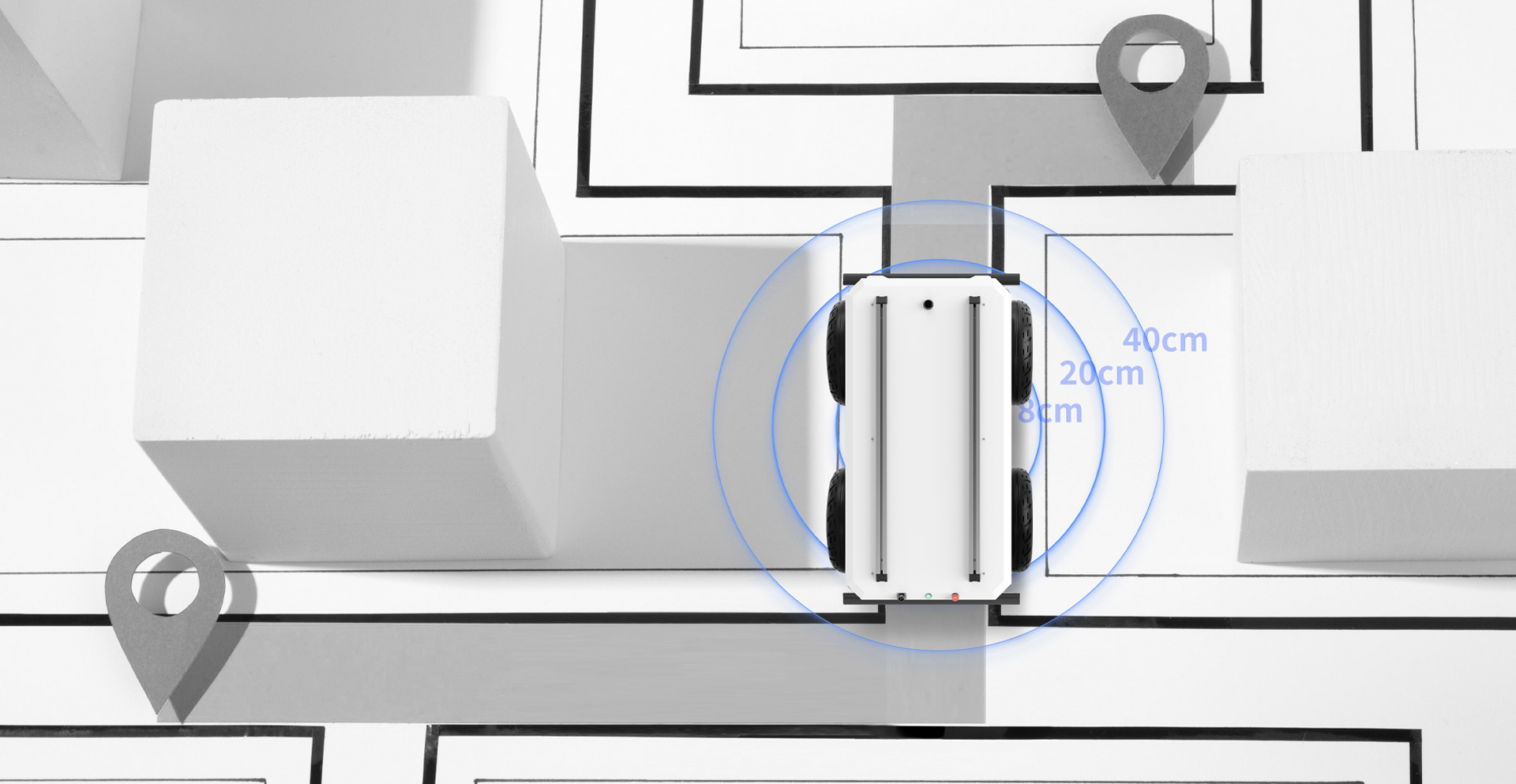

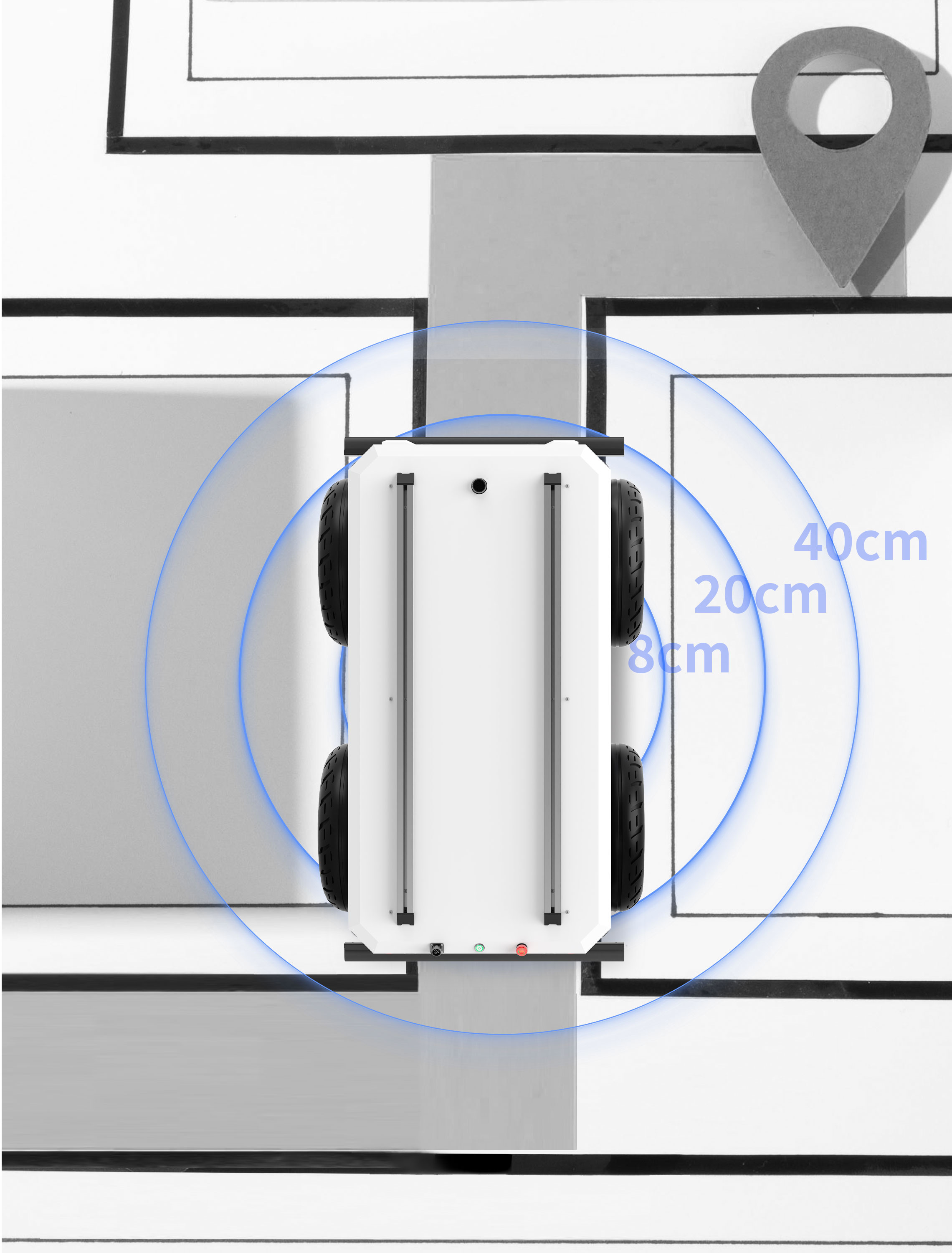

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

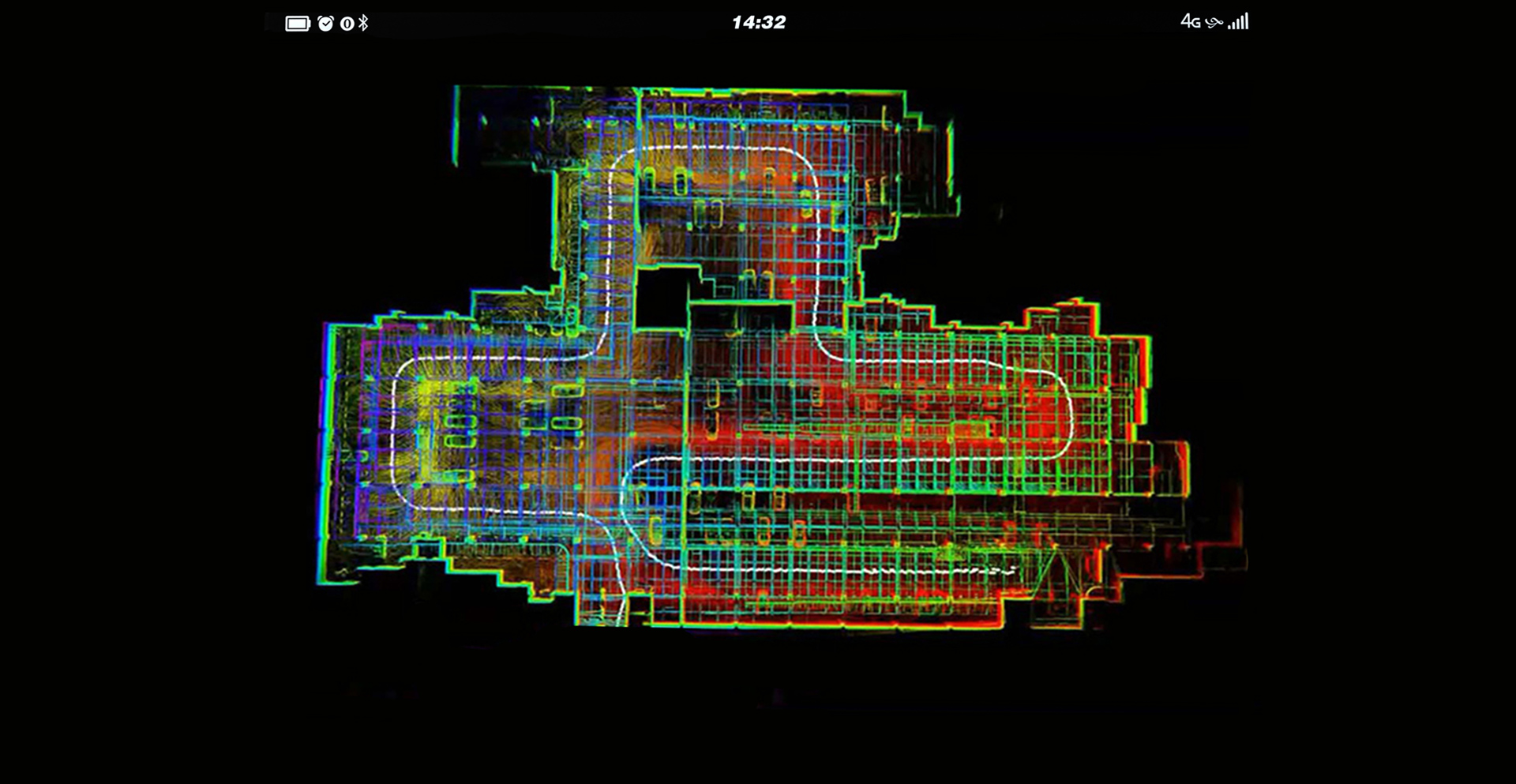

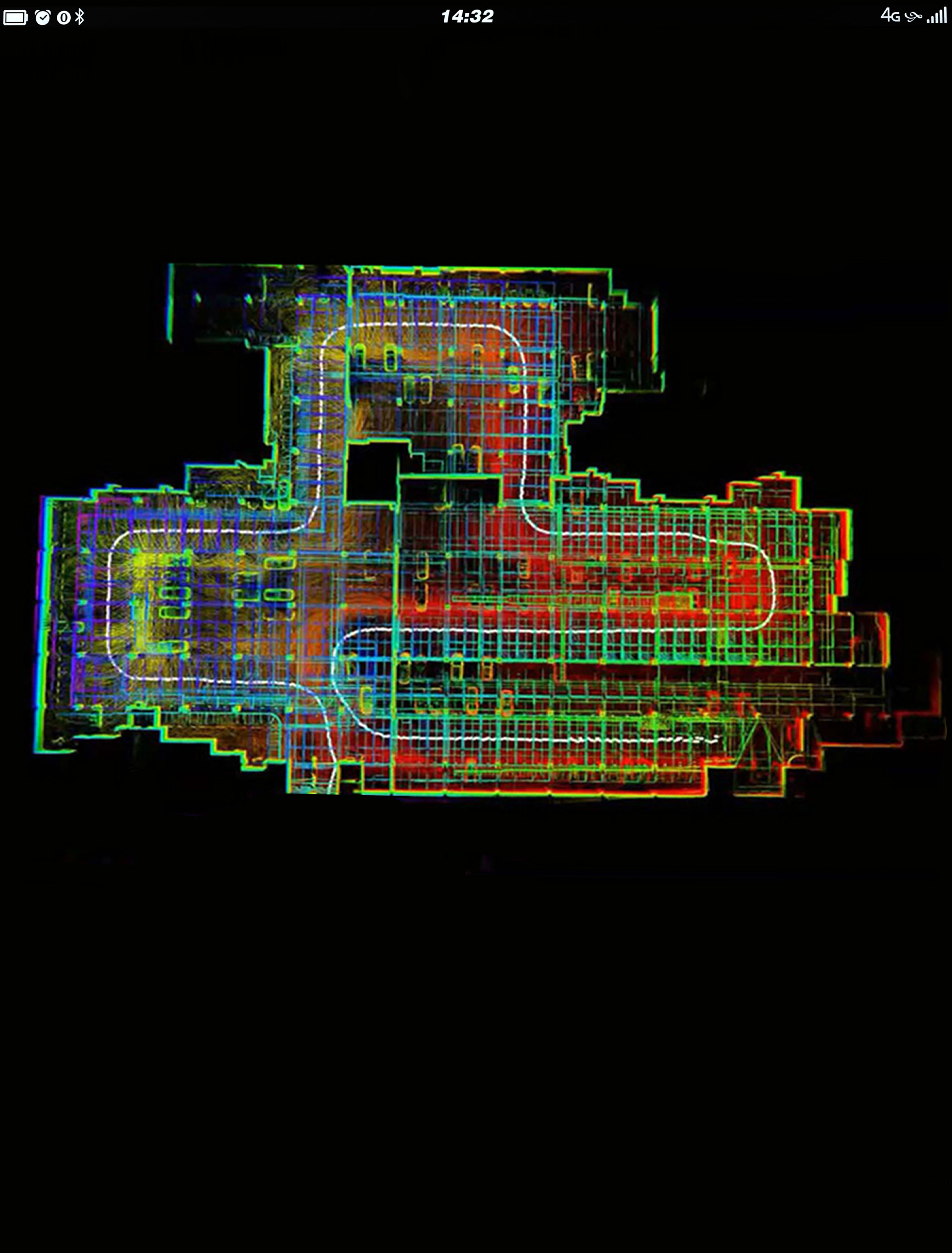

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

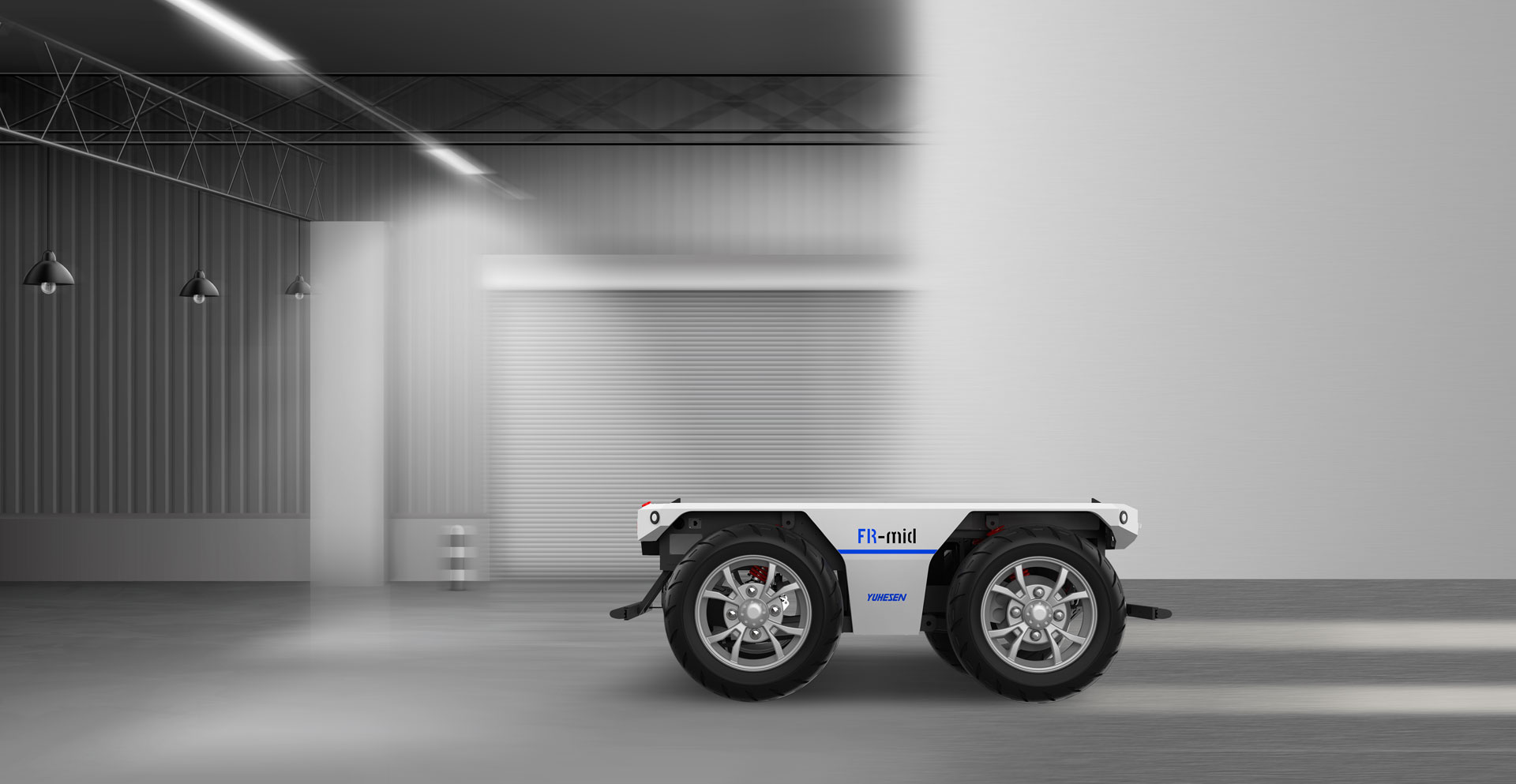

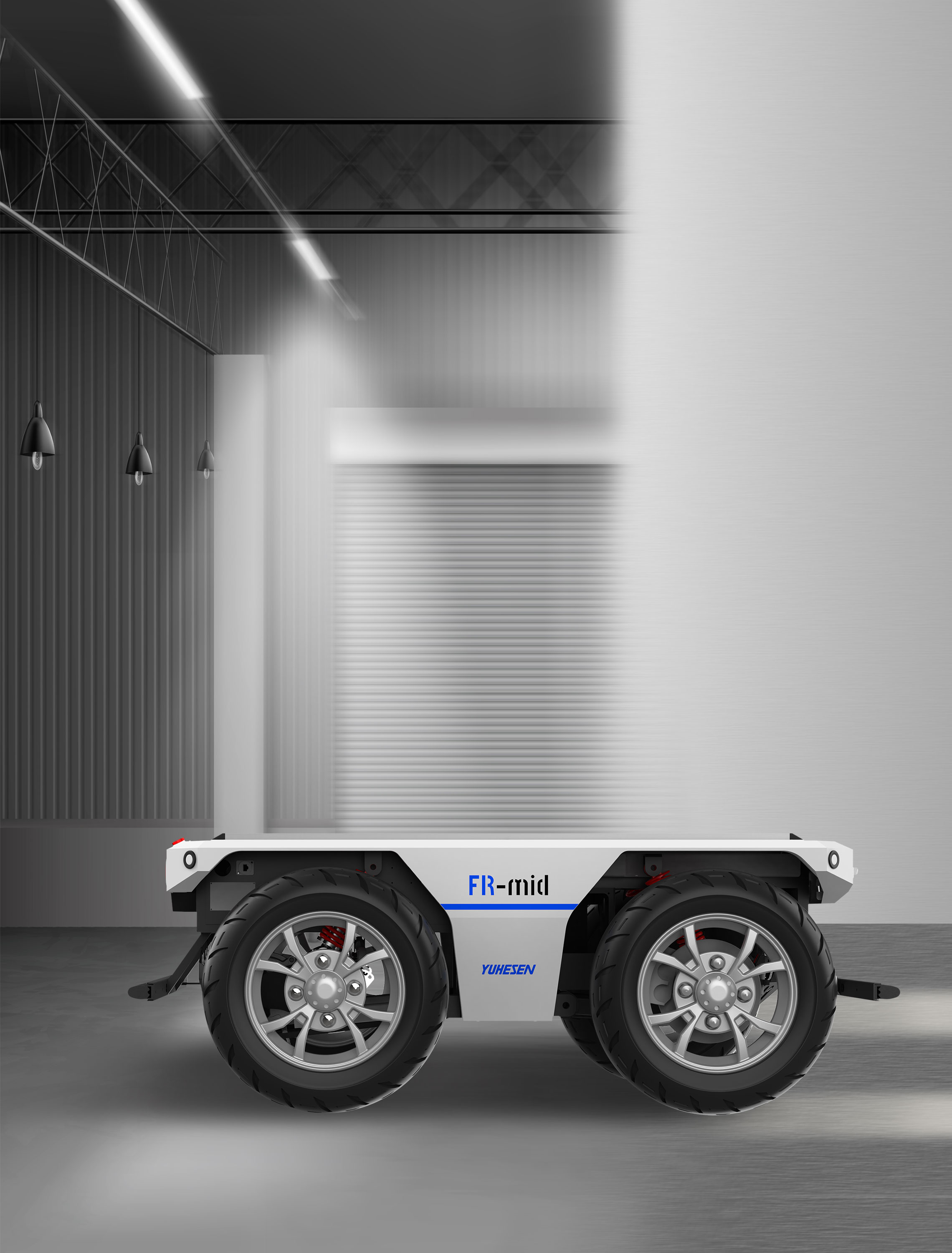

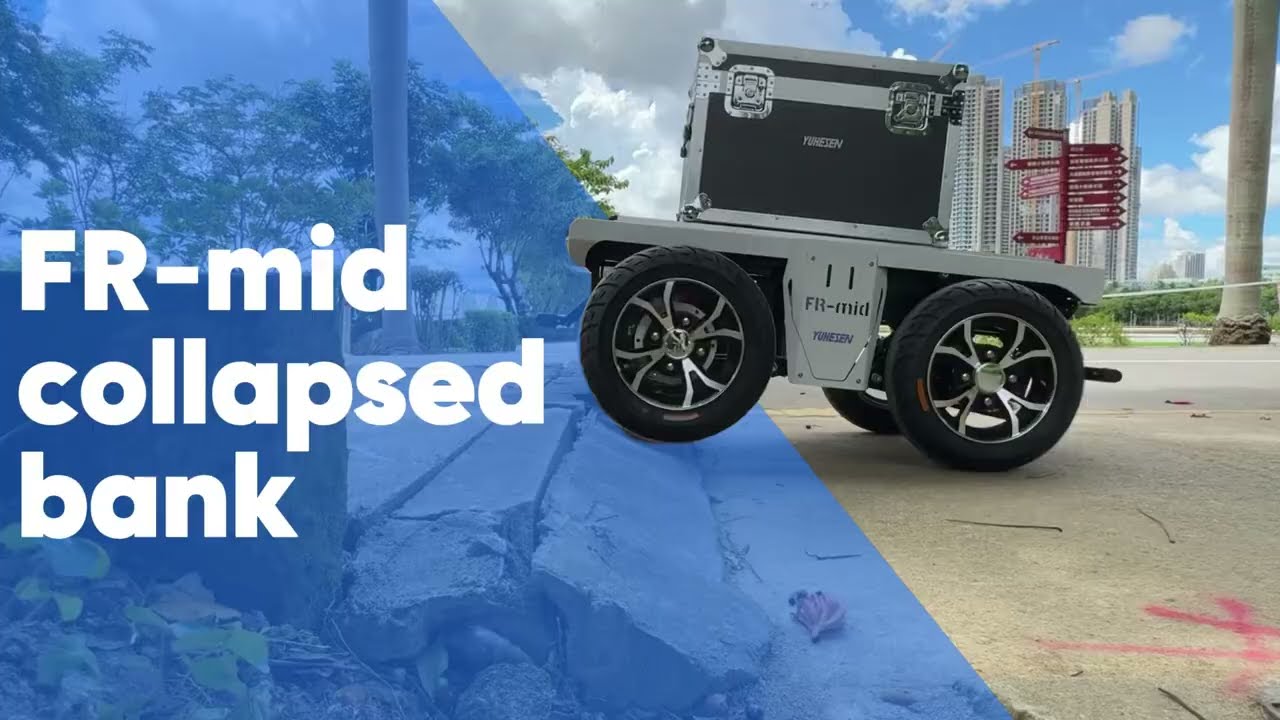

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-Industry Application Capability

  • Energy

    Energy

  • Manufacturing

    Manufacturing

  • Agriculture

    Agriculture

  • Healthcare

    Healthcare

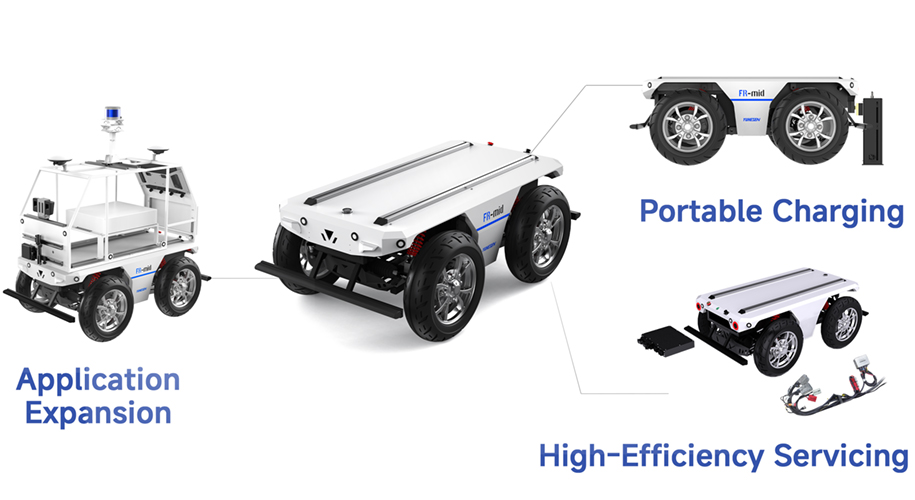

Supporting the integration of diverse modular applications.

We anticipate collaborating with you to explore the future of the industry.

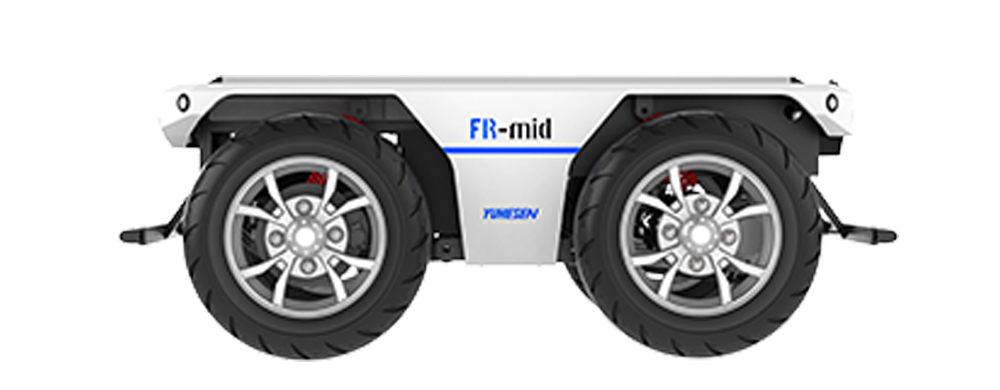

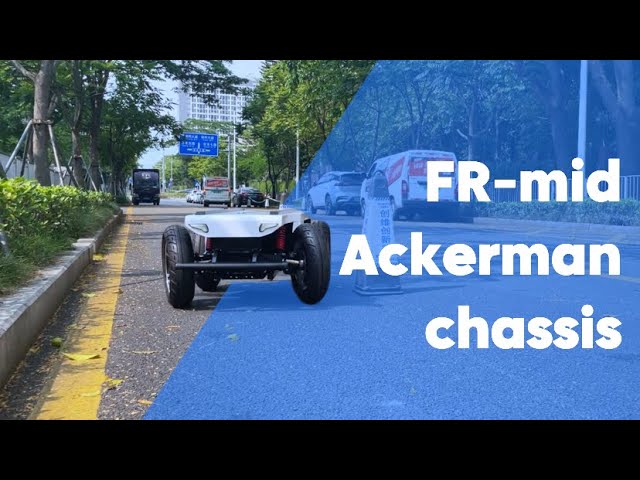

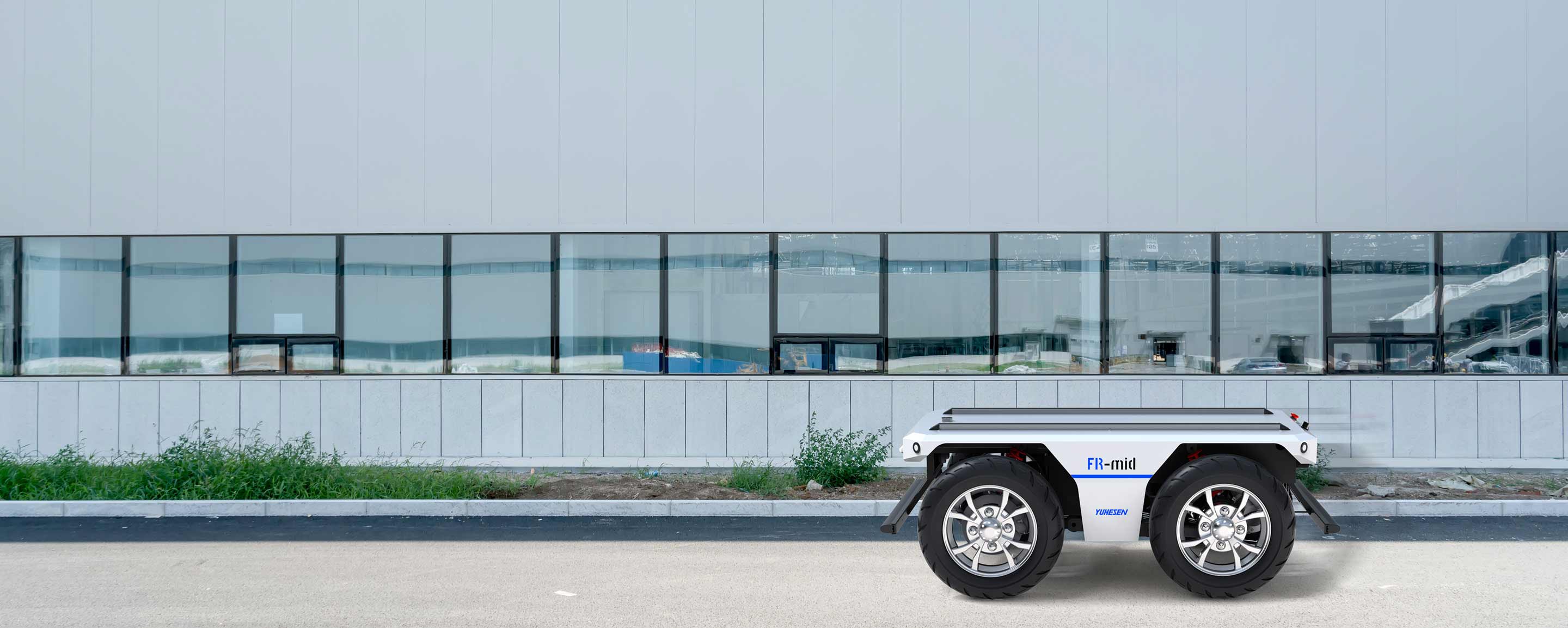

FR-mid

  • Size：1320mm*785mm*490mm
  • Weight：125kg
  • Drive Form：Front Ackermann steering, rear motor drive
  • Suspension：Non-independent Suspension
  • Ground Clearance：115mm
  • Wheelbase：660mm
  • Wheel Track：665mm
  • Tire Diameter：420mm
  • Wheel Hub Motor：1000W*1
  • Battery：48V/20Ah(standard); 48V/40Ah(optional)
  • Charging Time：2-3h
  • Charging Adapter：48V/10A
  • Power Supply： 12V/15A; 24V/15A; 48V/10A
  • Braking Method：Motor Brake
  • Parking Method：Electromagnetic power-off parking
  • Payload(Level Ground)：100kg
  • Max Speed：8km/h
  • Wading Depth：80mm
  • Mileage：45km(unladen); 30km(laden)
  • Max Climbing Angle：20°(unladen); 10°(laden)
  • Span Width：270mm(unladen); 200mm(laden)
  • Obstacle Height：90mm(unladen); 60mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/ OS-mate kit/ OS-lite kit/ OS-mars kit/ OS-saturn kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK) / STP files / User Manual / Online Technical Support
  • Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.

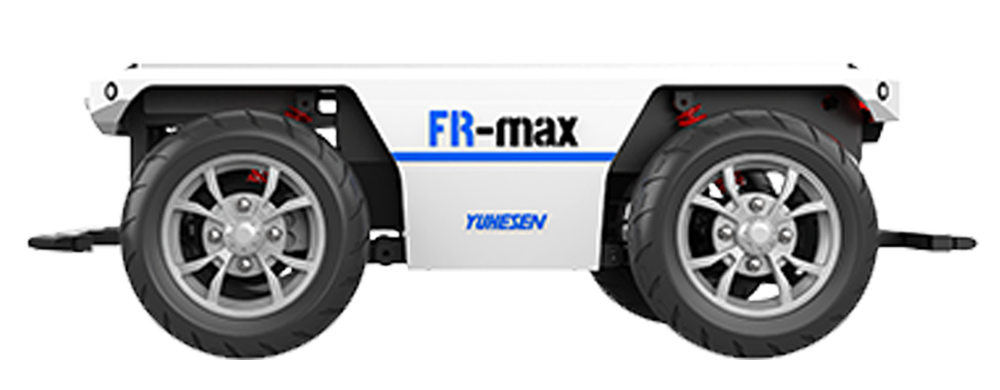

FR-max

  • Size：1600mm*820mm*520mm
  • Weight：156kg
  • Drive Form：Front Ackermann steering, rear motor drive
  • Suspension：Non independent suspensions
  • Ground Clearance：110mm
  • Wheelbase：850mm
  • Wheel Track：665mm
  • Tire Diameter：420mm
  • Wheel Hub Motor：1800W*1
  • Battery：48V/40Ah(standard); 48V/70Ah(optional)
  • Charging Time：≤4h
  • Charging Adapter：48V/10A
  • Power Supply：12V/15A; 24V/15A; 48V/20A
  • Braking Method：Hydraulic Disc Brake + Motor Brake
  • Parking Method：Electromagnetic power-off parking
  • Payload(Level Ground)：300kg
  • Max Speed：23km/h
  • Wading Depth：100mm
  • Mileage：Standard: 65km(unladen); 30km(laden)(40Ah);
    Optional:120km(unladen); 55km(laden)(70Ah)
  • Max Climbing Angle：20°(unladen); 10°(laden)
  • Span Width：290mm(unladen); 200mm(laden)
  • Obstacle Height：110mm(unladen); 60mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：NV-magic Kit/ OS-mate kit/ OS-lite kit/ OS-mars kit/ OS-saturn kit/ Docking charging station
  • Support Services ：Standard ROS drive packages(SDK) / STP files / User Manual / Online Technical Support
  • Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
