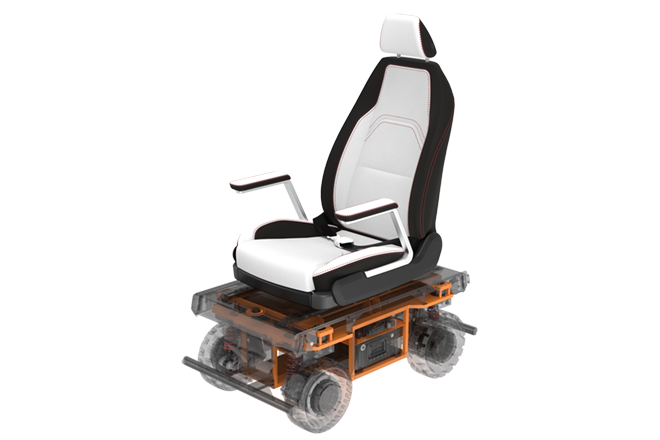

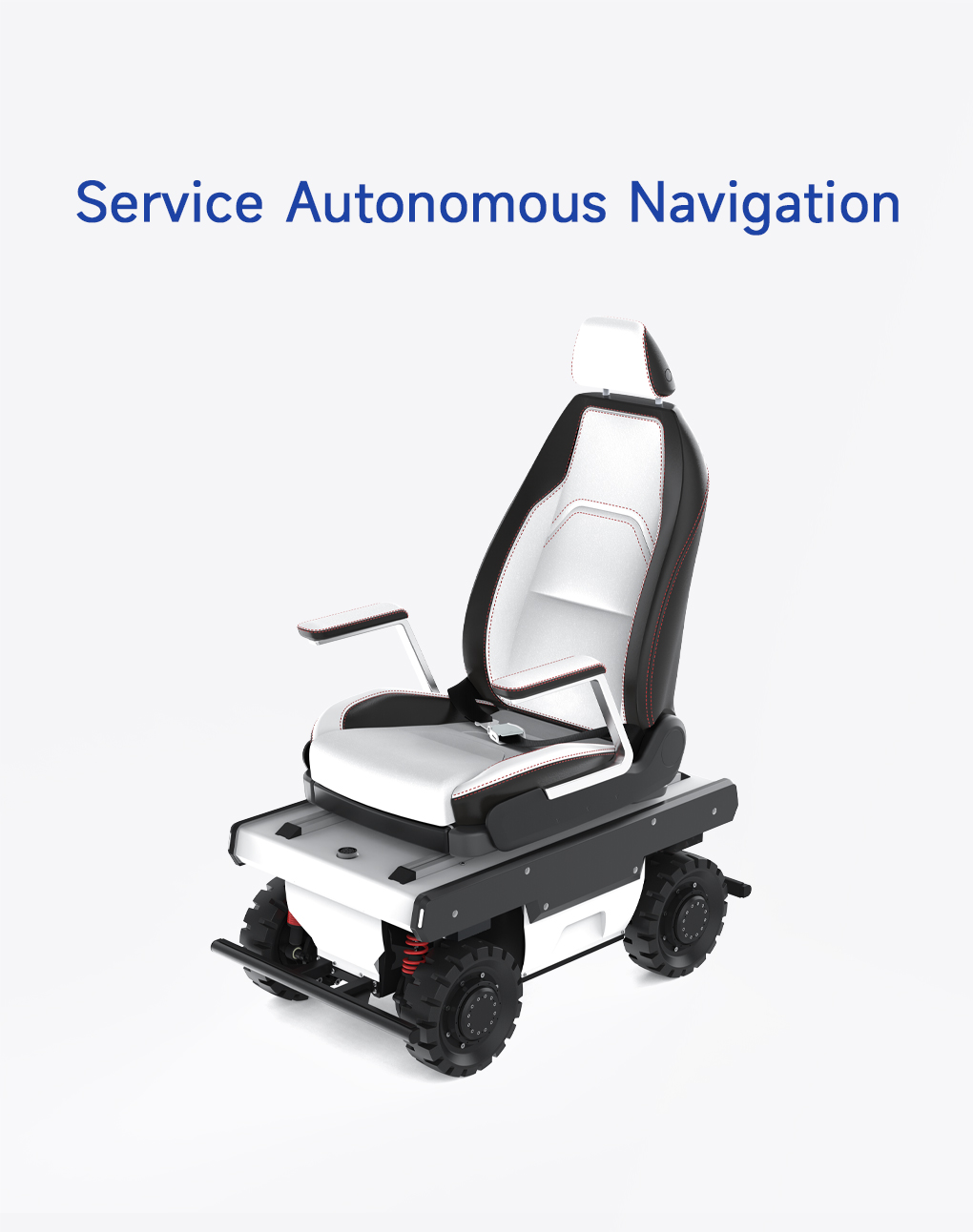

Omnidirectional Smart Wheelchair

As an efficient and safe 4WD & 4WS development platform for home service robots, it supports the rapid identification and response to requirements in home scenarios.


Preemptive Planning Drive Algorithm

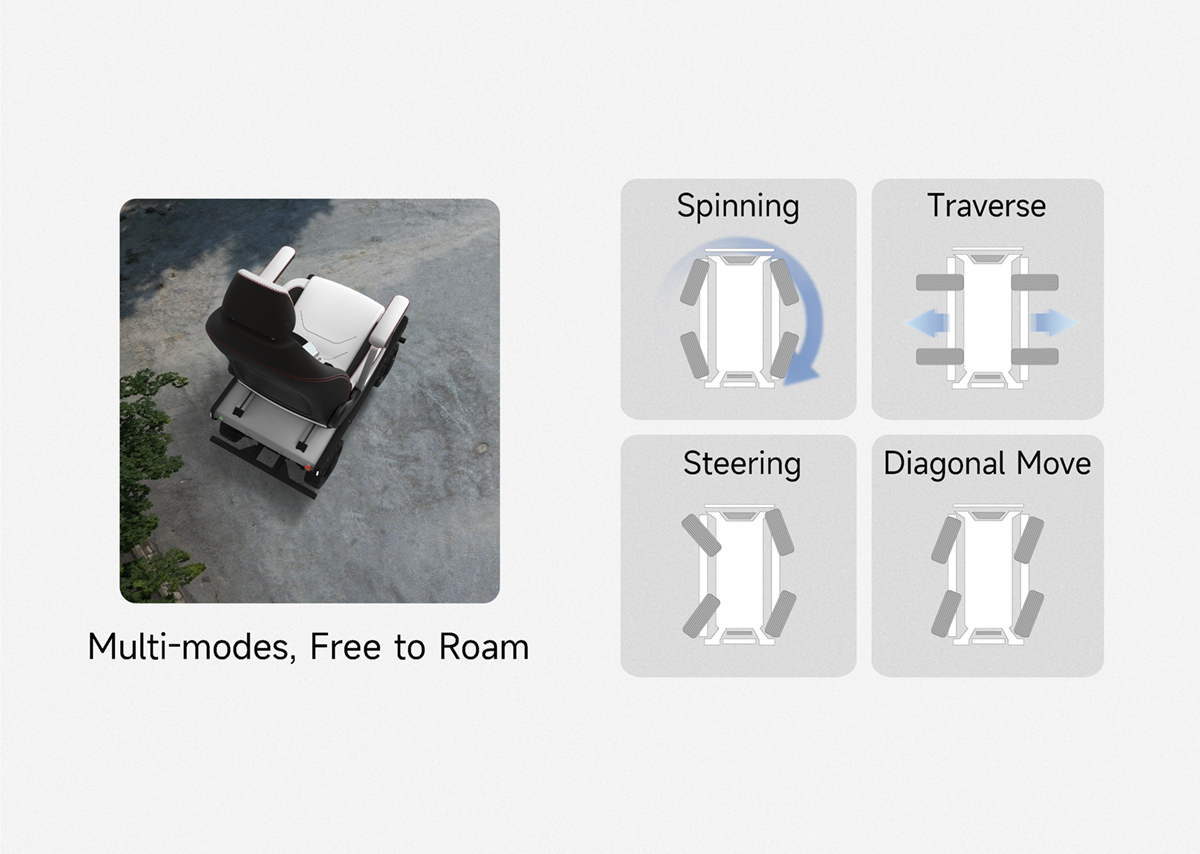

The chassis uses predictive modeling and dynamic optimization for real-time planning and parameter tuning, enabling rapid response and flexible maneuvering across multiple motion modes.


Omnidirectional Smart Wheelchair

Combine real-time precision motion control with a reinforced structure to navigate complex, multi-scenario environments with ease and confidence.

  • Obstacle Clearance Height：110mm(unladen)/50mm(laden)
  • Max Climbing Angle：20°(unladen)/10°(laden)
  • Max Speed：7.2km/h
  • Braking Method：Motor Brake
  • IP Rating：IP44
  • Payload：250kg

Build on a multi-layer safety framework that covers application, operation, electrical, and control domains. Integrate hardware and software protection into a unified system to deliver a modular, open, and reliable robotics chassis.

  • 1.png

    Application Safety

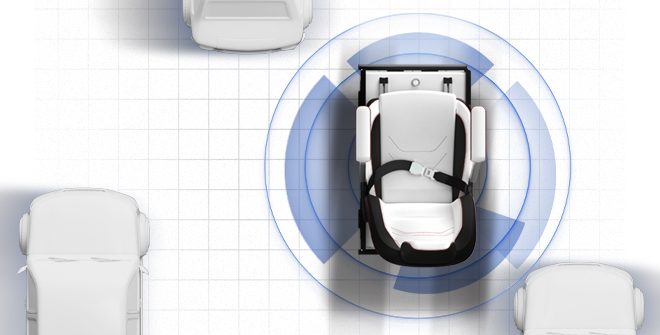

    Implement dual protection with physical emergency stops and logic safety interlocks, and extend safety further with optional anti-collision sensors.

  • 1.png

    Operational Safety

    Combine electronic differential control with flexible motion management to deliver both stability and agility, enabling more reliable performance across industry applications.

  • ba4eb03488c386c4df9dc8e97e3936c0.png

    Electrical Safety

    Adopt automotive-grade battery protection designs to withstand harsh environments, improve durability, and support effective application development.

  • 6c1d9688e726771a87fc3bc971e8275b.png

    Control Safety

    Leverage extensive protection strategies and high-precision control algorithms to build a robust system for interference resistance and error compensation, enabling more accurate navigation development.

No record
No record

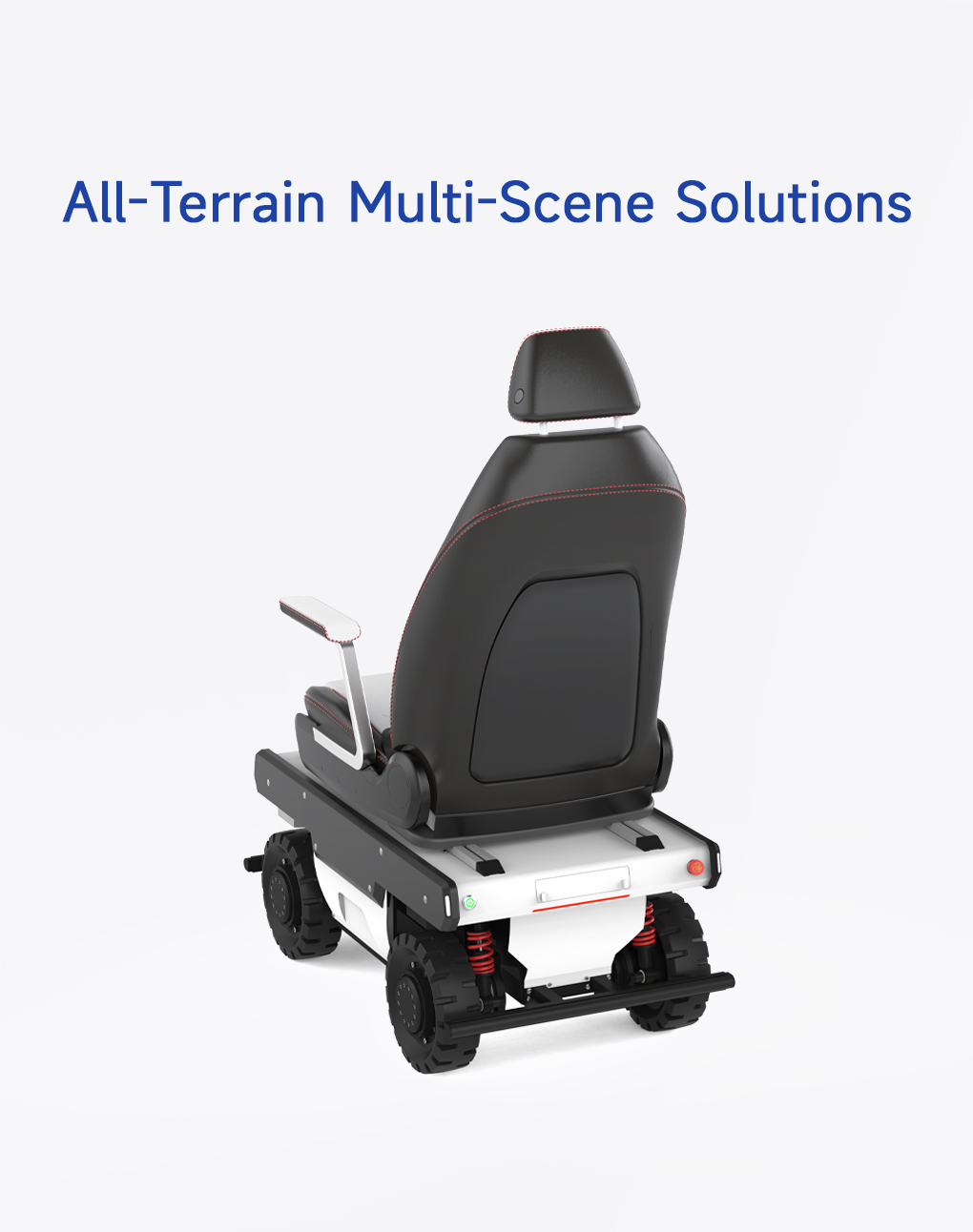

Multi-Scenario Operating Capability

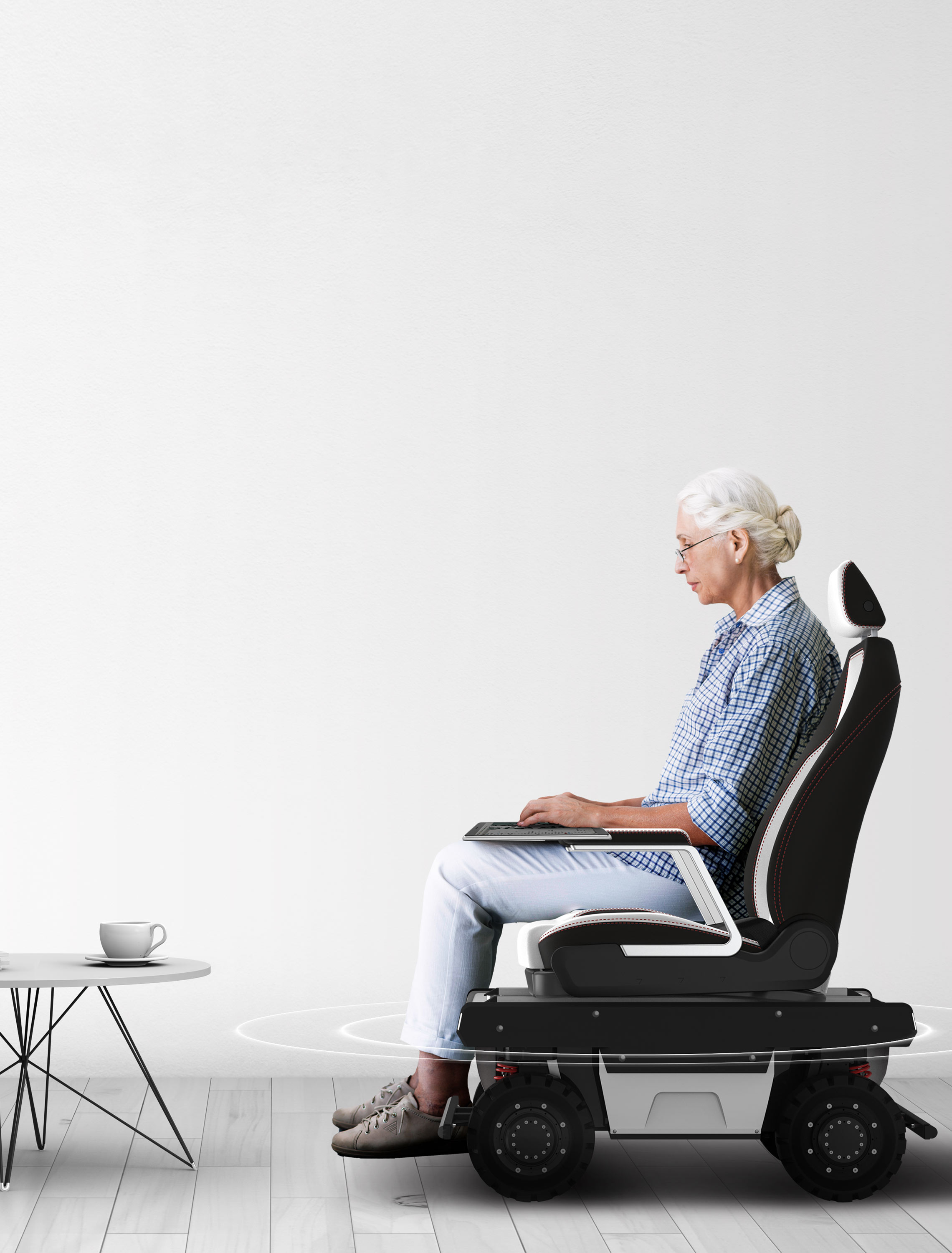

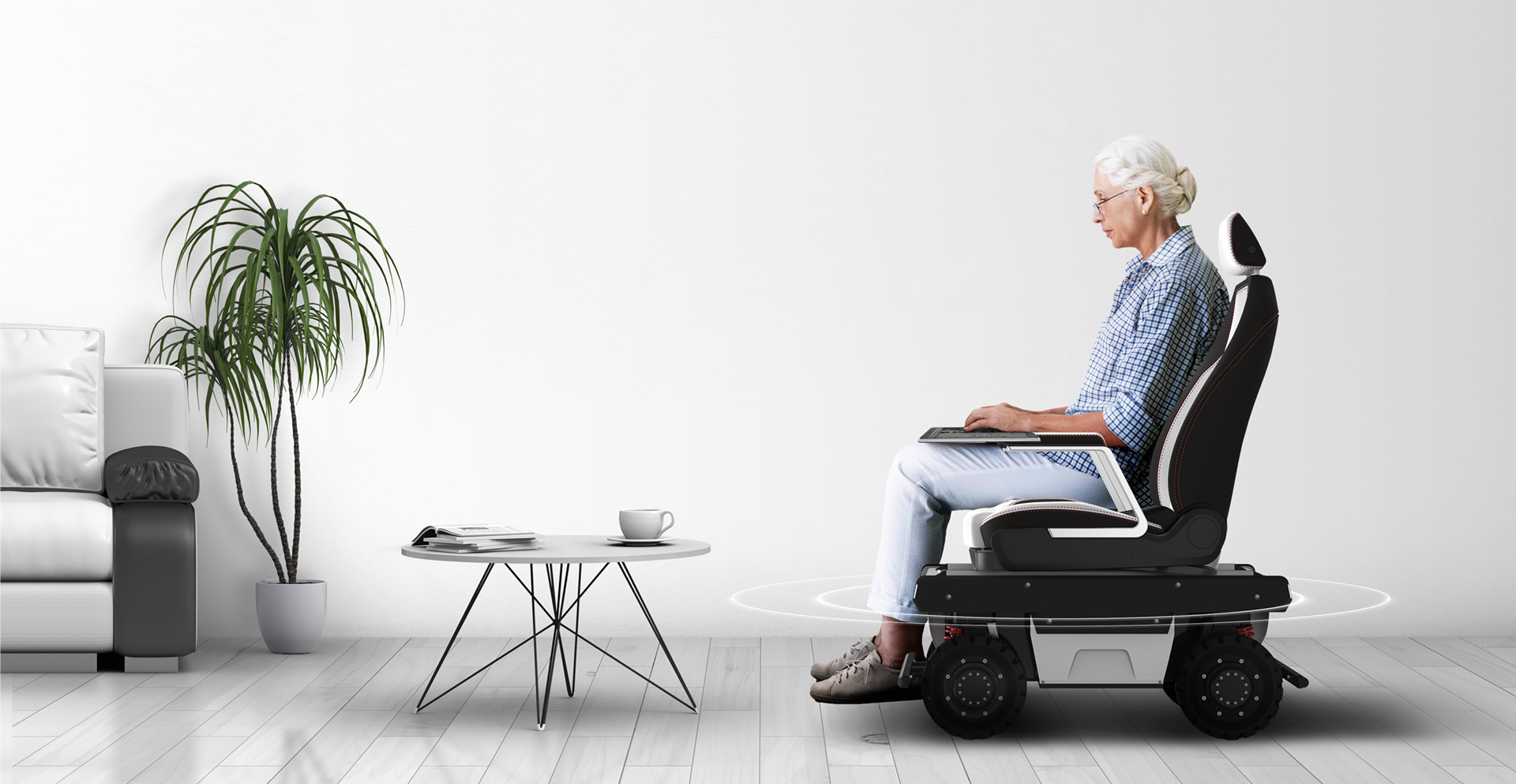

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

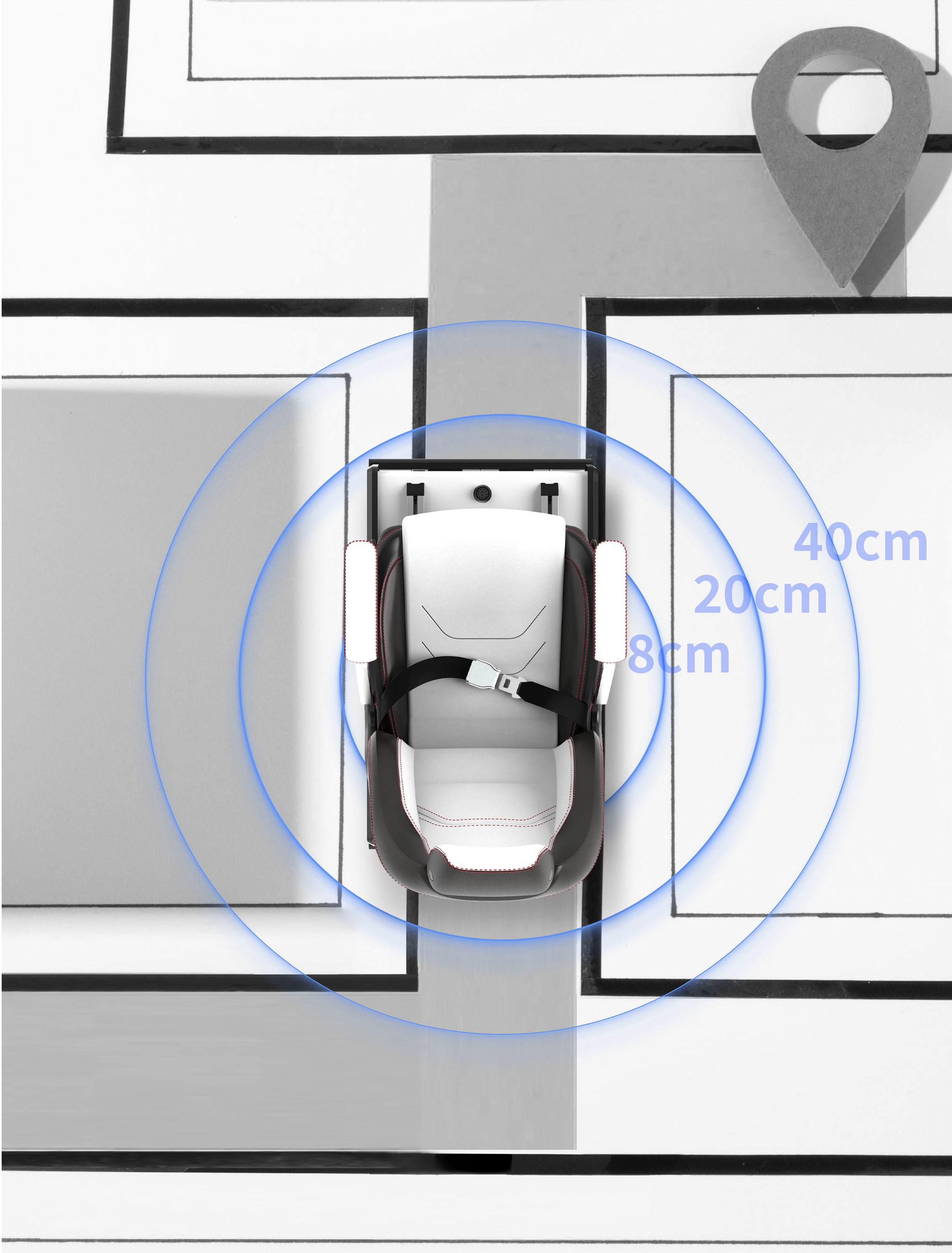

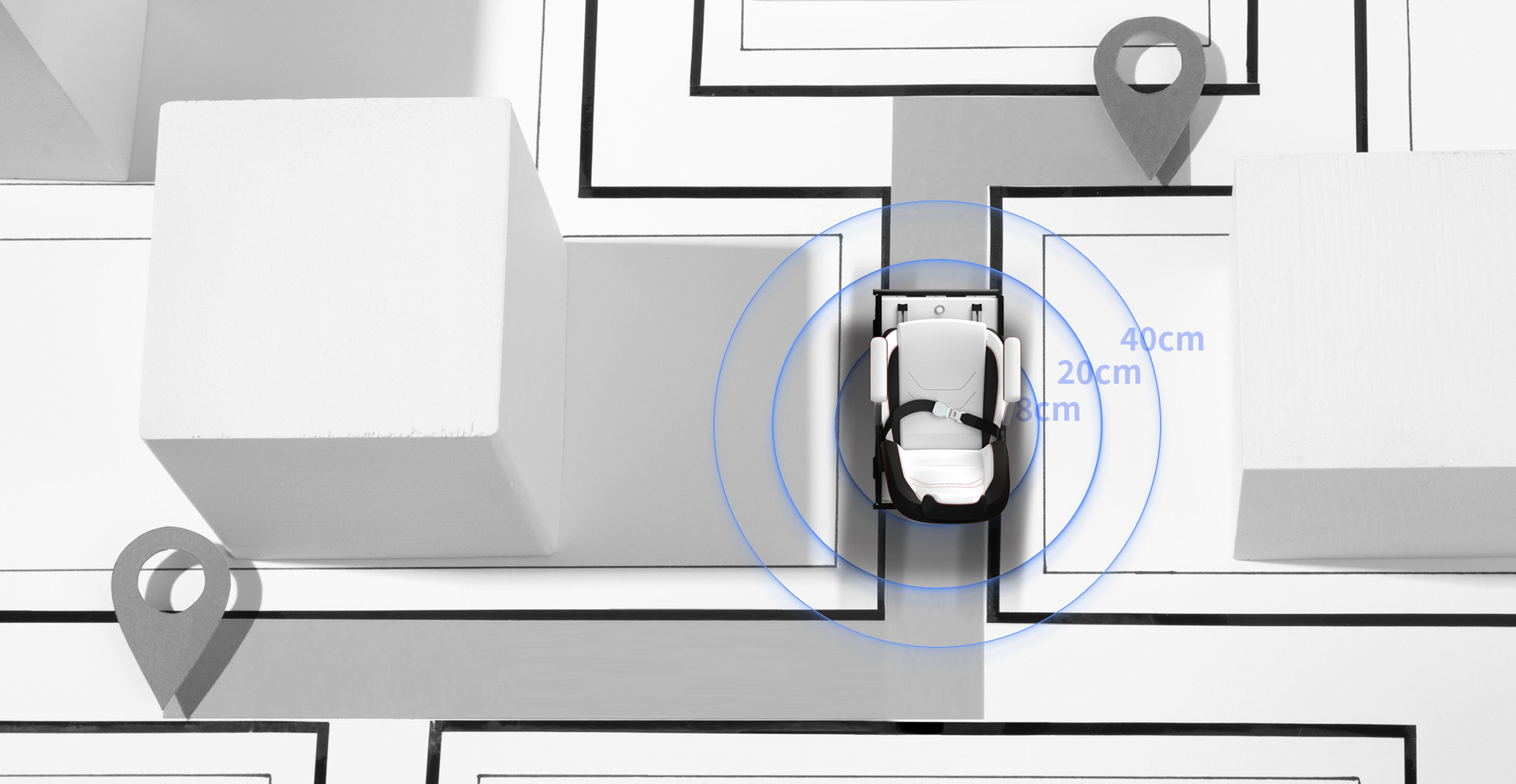

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

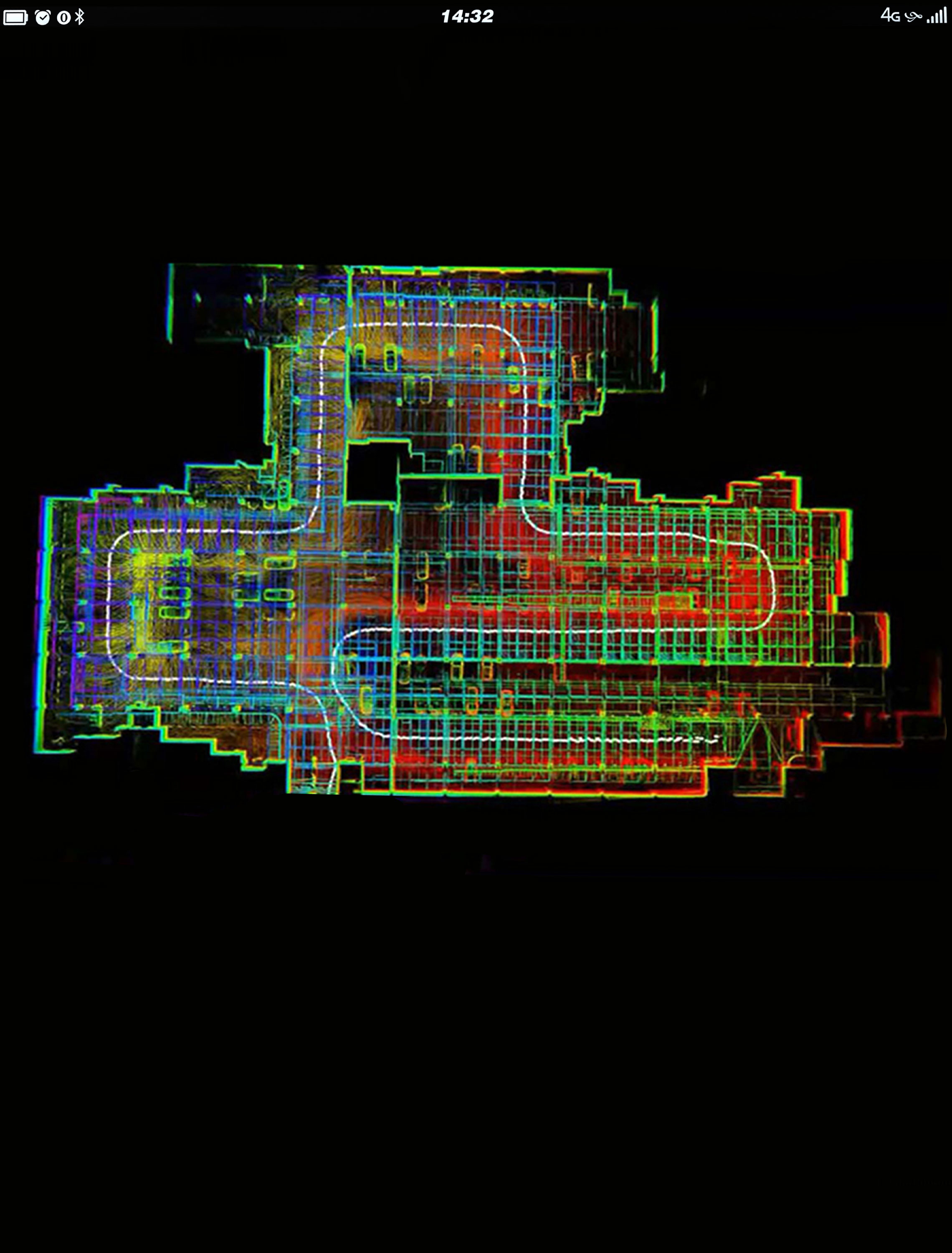

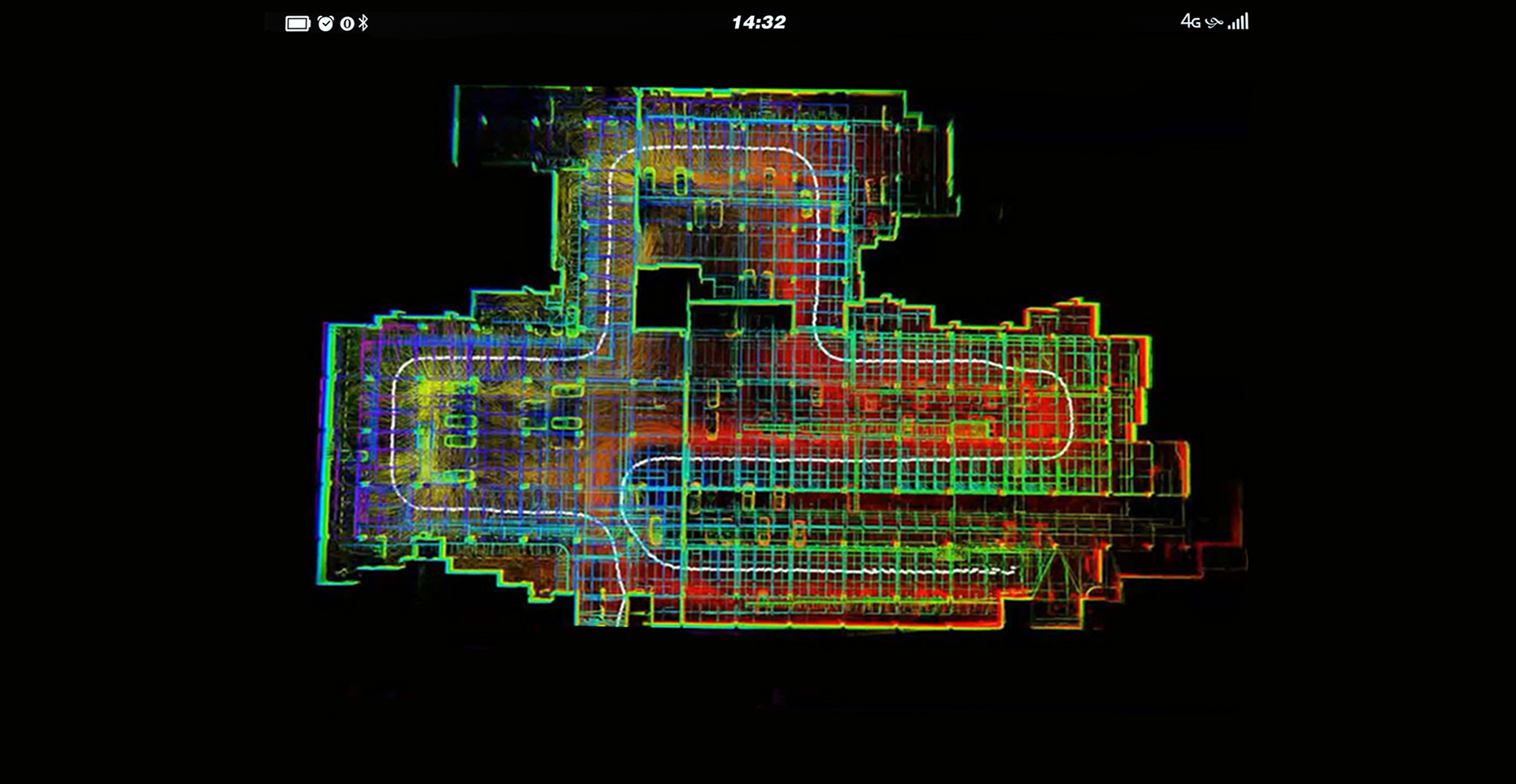

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

  • Indoor-Outdoor Narrow-space Transportation

    Indoor-Outdoor Narrow-space Transportation

  • High-Precision Positioning Under Signal Degradation

    High-Precision Positioning Under Signal Degradation

  • Large-Scale Mapping Performance

    Large-Scale Mapping Performance

  • Indoor-Outdoor All-Terrain Mobility

    Indoor-Outdoor All-Terrain Mobility

Multi-Industry Application Capability

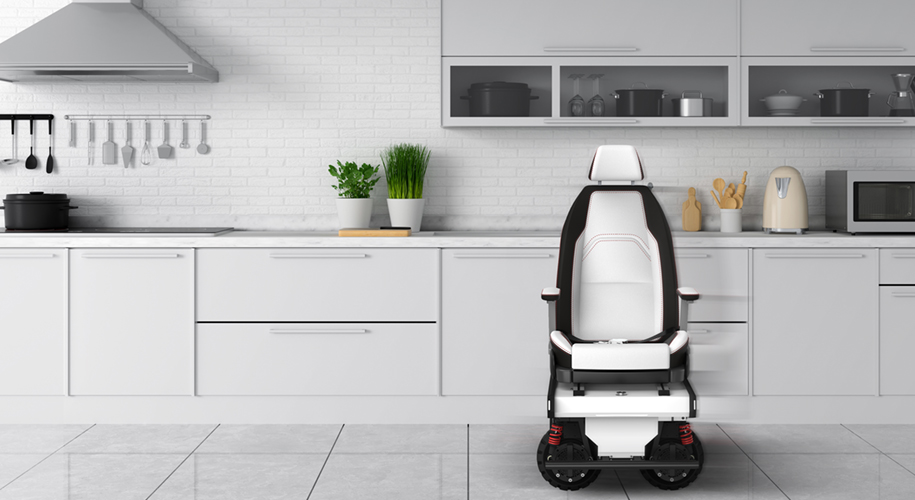

  • Home Care

    Home Care

  • Senior Care

    Senior Care

  • Community Support

    Community Support

  • Healthcare

    Healthcare

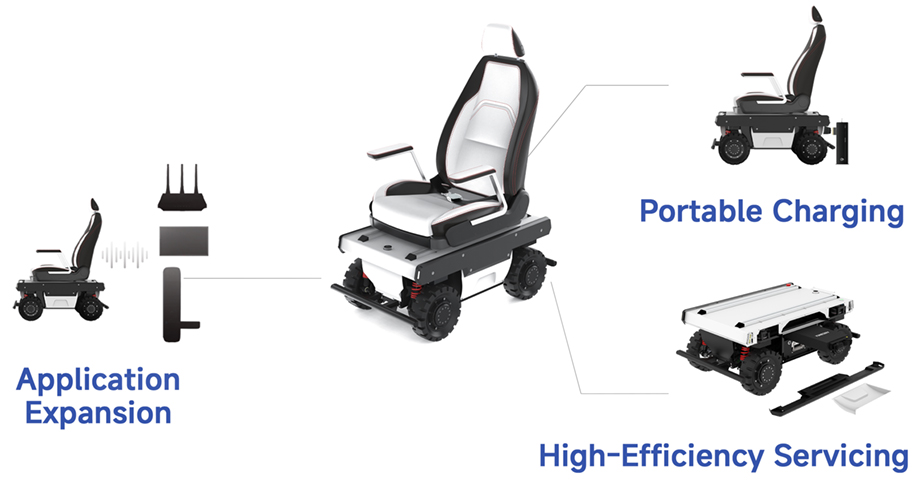

Supporting the integration of diverse modular applications.

We anticipate collaborating with you to explore the future of the industry.


FW-venus

  • Size：940mm*558mm*395mm
  • Weight：200kg
  • Drive Form：Swerve Steering and Motor Drive
  • Suspension：Independent Suspension
  • Ground Clearance：53mm(suspension); 100mm(chassis)
  • Wheelbase：600mm
  • Wheel Track：450mm
  • Tire Diameter：250mm
  • Wheel Hub Motor：600W*4
  • Battery：48V/40Ah(Standard); 48V/70Ah(optional)
  • Charging Time：4-5h
  • Charging Adapter：48V/10A
  • Power Supply：48V/20A; 24V/15A; 12V/15A
  • Braking Method：Motor Brake
  • Parking Method：Electromagnetic power-off parking
  • Payload(Level Ground)：250kg
  • Max Speed：7.2km/h
  • Wading Depth：50mm
  • Mileage：40km(unladen); 30km(laden)
  • Max Climbing Angle：20°(unladen); 10°(laden)
  • Span Width：200mm(unladen); 120mm(laden)
  • Obstacle Height：110mm(unladen); 50mm(laden)
  • IP Rating：IP44
  • Communication Interface：CAN2.0B
  • Operating Temperature：-20~50℃
  • Optional Modules：Navigation peripherals/ Open-source accessories/ Autonomous charging dock
  • Support Services ：Standard ROS drive packages(SDK)/ STP files / User Manual / Online Technical Support
  • Configuration Notes ：Due to continous upgrades on products. Actual product may different from the webpage descriptions. Please contact our engineer for obtaining the latest information.
